Salem Navy Shaker - RTA Kitchen Cabinets

Overview

Salem Navy Shaker kitchen full view with an island.

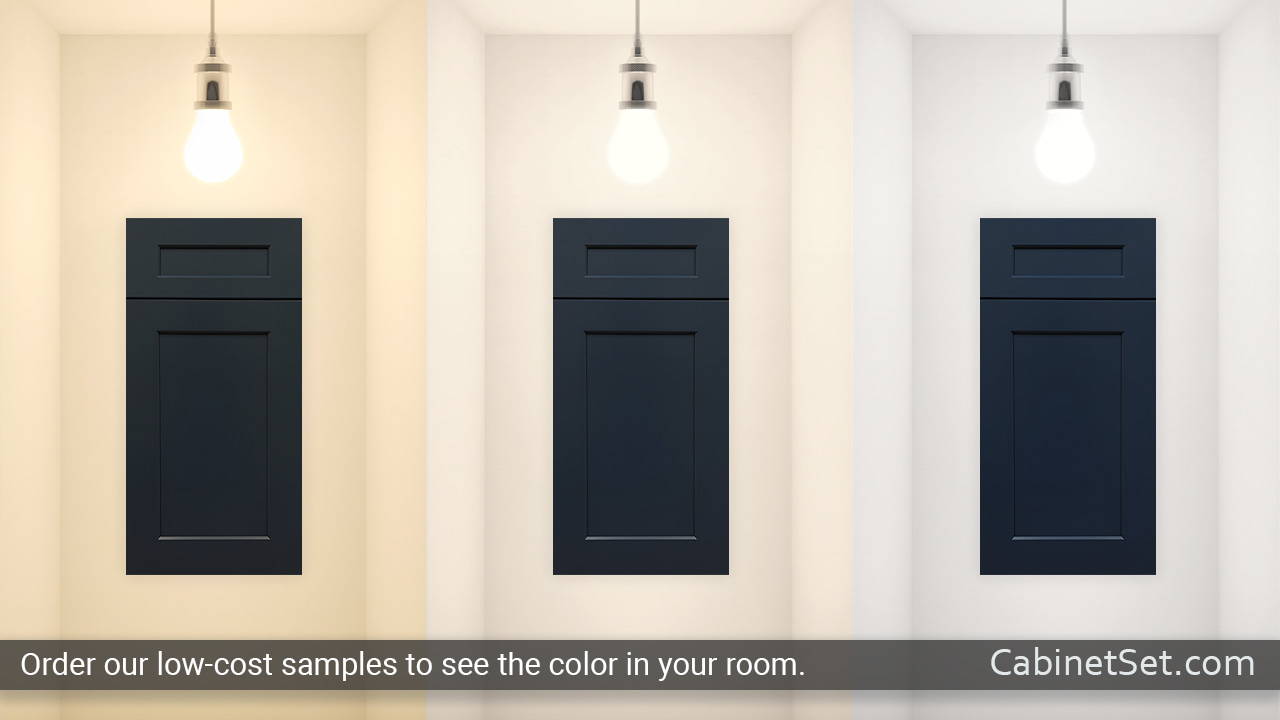

Salem Navy Shaker cabinet door under different light.

Color & Finish

Blue, UV coating paint

Profile & Overlay

Shaker style, full overlay

Slides & Hinges

Soft closing, under mount, full extension, 6 way adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Blue UV coating paint
Profile & overlay	Shaker style, full overlay
Wood species	Birch
Sides color	Matches cabinet front, no skins required.
Drawers	5/8" thick dovetail solid wood frame, 5/16" thick plywood bottom, natural color finish. Soft closing, under mount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Interior color	UV coated natural interior.
Particle board	No particle board is used in this cabinet line construction
Doors	Five piece HDF (High Density Fiberboard) doors. Why do we use HDF?
Cabinet construction	1/2" plywood box with UV coated matching exterior. 1/2" thick plywood back panels.
Face frame	1-3/4" wide x 3/4" thick solid wood
Shelves	3/4" thick plywood with front edge banding, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Wood corner braces
Center stile	No center stile on wall and base cabinets up to 42" wide
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-1/4"
Upper drawer box height	3-1/4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	10-1/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/4" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	11-1/8"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly

Assembly Videos

Assembly Instructions

Wall Cabinets

Bathroom Vanities

Tall Cabinets

Base Cabinets

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Quick Ship

We realize in some cases it is important to receive cabinets fast. It helps to minimize project downtime and quickly resume normal activities. That is why we started our Express Cabinet Solution Program™ for kitchen and bathroom cabinets. The fast ship cabinet lines are Guaranteed to Leave the Warehouses within 3 Business Days*. The fast shipping applies to select ready to assemble cabinet lines, see our Shipping and Return Policy for full details.

Quick Shipping Lines

* The fast shipping applies to select ready to assemble cabinet lines, see our Shipping and Return Policy for full details.

PDF Catalog

The Salem Navy Shaker cabinet selection is limited to certain cabinet sizes. It is best to use this cabinet line for color accent parts (e.g. islands) in Salem series kitchens. If your project requires more sizes, check our other cabinet lines.

Refundable Samples
Salem Navy Shaker Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Salem Navy Shaker Sample Door
Details
Approximate size: 11" wide x 15" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W1830 Salem Navy Shaker RTA
Width: 18"
Height: 30"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Regular Price $251.40
Double Door Wall Cabinets - 30" High
W2430 Salem Navy Shaker RTA
Width: 24"
Height: 30"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Regular Price $319.57
W3030 Salem Navy Shaker RTA
Width: 30"
Height: 30"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Regular Price $380.04
Bridge Wall Cabinets
W3018 Salem Navy Shaker RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Regular Price $262.98
Single Door Base Cabinets
BT9PO Salem Navy Shaker RTA
Width: 9"
Height: 34 1/2"
Depth: 24"
Details
Full height door base kit with shelf pullout. Full-extension slides with BLUMOTION soft-close. This cabinet is composed of: 1 x B9 and 1 x FDW0930.

Regular Price $715.60
B9 Salem Navy Shaker RTA
Width: 9"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door. This cabinet can be modified into a base tray or spice cabinet. The additional hardware is available in the Cabinet Organizers section. This cabinet is composed of: 1 x B9 and 1 x FDW0930.

Regular Price $222.33
B15 Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

Regular Price $342.70
B18 Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

Regular Price $376.82
B21 Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, and 1 shelf.

Regular Price $404.35
B15FH Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 1 shelf. This cabinet can be modified into a base tray or spice cabinet. The additional hardware is available in the Cabinet Organizers section. This cabinet is composed of: 1 x B15 and 1 x FDW1530.

Regular Price $488.39
B18FH Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The additional hardware is available in the Cabinet Organizers section. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $540.76
B21FH Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The additional hardware is available in the Cabinet Organizers section. This cabinet is composed of: 1 x B21 and 1 x FDW2130.

Regular Price $593.12
B15TD Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Tray divider base cabinet with 1 door, 1 drawer, and 1 tray divider.

Regular Price $426.27
B18TD Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Tray divider base cabinet with 1 door, 1 drawer, and 2 tray dividers.

Regular Price $498.63
B15FHTD Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Tray divider base cabinet with 1 full height door and 1 tray divider. This cabinet is composed of: 1 x B15 and 1 x FDW1530.

Regular Price $568.08
B18FHTD Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Tray divider base cabinet with 1 full height door and 2 tray dividers. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $654.03
B15TCPO Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Single trashcan pullout base kit cabinet with 1 door and 1 drawer. Trash can is included, cabinet is soft closing.

Regular Price $886.84
B18TCPO Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Double trashcan pullout base kit cabinet with 1 door and 1 drawer. The cabinet comes with two trash cans and one trash can lid. The cabinet is soft closing.

Regular Price $935.79
B21TCPO Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Double trashcan pullout base kit cabinet with 1 door and 1 drawer. The cabinet comes with two trash cans and one trash can lid. The cabinet is soft closing.

Regular Price $977.40
B15FHTCPO Salem Navy Shaker RTA
Width: 15"
Height: 34 1/2"
Depth: 24"
Details
Single trashcan pullout base kit cabinet with 1 full height door. Trash can is included, cabinet is soft closing. This cabinet is composed of: 1 x B15 and 1 x FDW1530.

Regular Price $1,029.14
B18FHTCPO Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Double trashcan pullout base kit cabinet with 1 full height door. The cabinet comes with two trash cans and one trash can lid. The cabinet is soft closing. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $1,099.73
B21FHTCPO Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Double trashcan pullout base kit cabinet with 1 full height door. The cabinet comes with two trash cans and one trash can lid. The cabinet is soft closing. This cabinet is composed of: 1 x B21 and 1 x FDW2130.

Regular Price $1,162.34
B181RS Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, 1shelf, and 1 rollout shelf base kit.

Regular Price $462.77
B211RS Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, 1shelf, and 1 rollout shelf base kit.

Regular Price $500.67
B182RS Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, and 2 rollout shelf base kits.

Regular Price $548.72
B212RS Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 door, 1 drawer, and 2 rollout shelf base kits.

Regular Price $593.52
B18FH1RS Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door, 1shelf, and 1 rollout shelf base kit. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $626.71
B21FH1RS Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door, 1shelf, and 1 rollout shelf base kit. This cabinet is composed of: 1 x B21 and 1 x FDW2130.

Regular Price $685.91
B18FH2RS Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 2 rollout shelf base kits. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $712.66
B21FH2RS Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 2 rollout shelf base kits. This cabinet is composed of: 1 x B21 and 1 x FDW2130.

Regular Price $778.12
B18FH3RS Salem Navy Shaker RTA
Width: 18"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 3 rollout shelf base kits. This cabinet is composed of: 1 x B18 and 1 x FDW1830.

Regular Price $798.61
B21FH3RS Salem Navy Shaker RTA
Width: 21"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 1 full height door and 3 rollout shelf base kits. This cabinet is composed of: 1 x B21 and 1 x FDW2130.

Regular Price $870.90
Double Door Base Cabinets
B24 Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 1 shelf.

Regular Price $447.40
B30S Salem Navy Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 1 shelf.

Regular Price $537.62
B36 Salem Navy Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 2 drawers, and 1 shelf.

Regular Price $640.89
B24FH Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 full height doors and 1 shelf. This cabinet is composed of: 1 x B24 and 1 x FDW2430.

Regular Price $668.26
B30FH Salem Navy Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 full height doors and 1 shelf. This cabinet is composed of: 1 x B30 and 1 x FDW3030.

Regular Price $833.90
B36FH Salem Navy Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 full height doors and 1 shelf. This cabinet is composed of: 1 x B36 and 1 x FDW3630.

Regular Price $951.16
B241RS Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, 1shelf, and 1 rollout shelf base kit.

Regular Price $547.59
B30S1RS Salem Navy Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, 1shelf, and 1 rollout shelf base kit.

Regular Price $654.03
B361RS Salem Navy Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 2 drawers, 1shelf, and 1 rollout shelf base kit.

Regular Price $770.08
B242RS Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 2 rollout shelf base kits.

Regular Price $647.20
B30S2RS Salem Navy Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 2 rollout shelf base kits.

Regular Price $765.60
B362RS Salem Navy Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 2 drawers, and 2 rollout shelf base kits.

Regular Price $894.24
B24FH1RS Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 2 rollout shelf base kits.

Regular Price $768.44
B30FH1RS Salem Navy Shaker RTA
Width: 30"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 doors, 1 drawer, and 2 rollout shelf base kits.

Regular Price $945.47
B36FH1RS Salem Navy Shaker RTA
Width: 36"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 full height doors, 1shelf, and 1 rollout shelf base kit. This cabinet is composed of: 1 x B36 and 1 x FDW3630.

Regular Price $951.16
B24FH2RS Salem Navy Shaker RTA
Width: 24"
Height: 34 1/2"
Depth: 24"
Details
Base cabinet with 2 full height doors and 2 rollout shelf base kits. This cabinet is composed of: 1 x B24 and 1 x FDW2430.

Regular Price $868.06

Show More Products

About Salem Navy Shaker

Upgrade your kitchen with our stunning Salem Navy Shaker RTA kitchen cabinets. With their rich navy finish and shaker-style doors, they add a touch of sophistication to any kitchen decor. Easy to assemble and install, they are a cost-effective solution for transforming your kitchen.
