Salem Grey Shaker - RTA Kitchen Cabinets

Overview

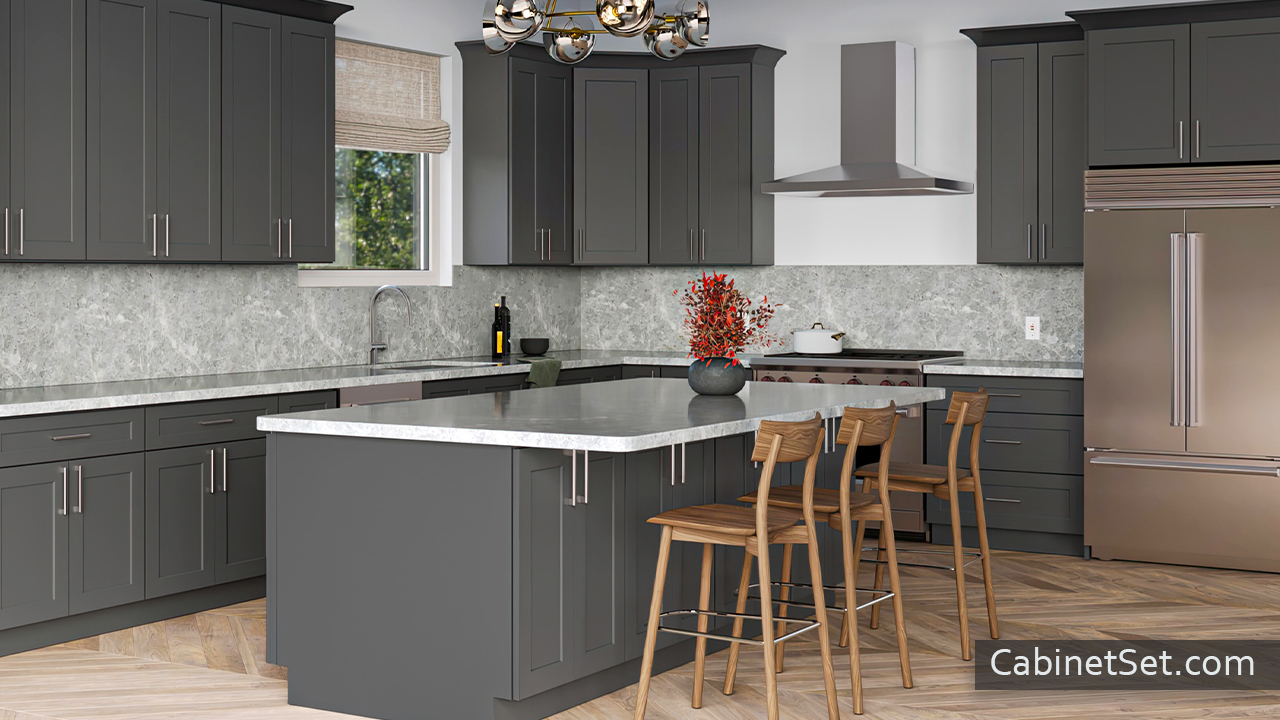

Salem Grey Shaker kitchen full angle view with an island.

Salem Grey Shaker kitchen angle view with an island.

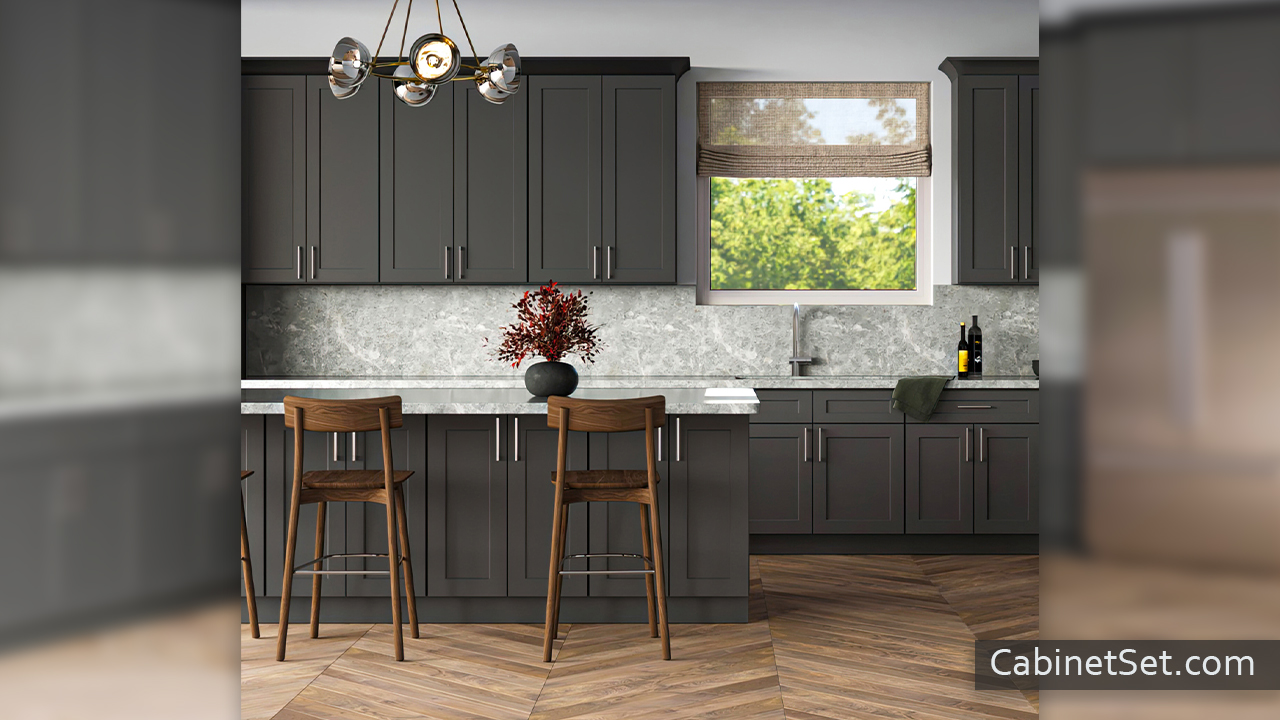

Salem Grey Shaker kitchen full view with an island, wall and base cabinets.

Salem Grey Shaker kitchen close-up view with a sink base cabinet.

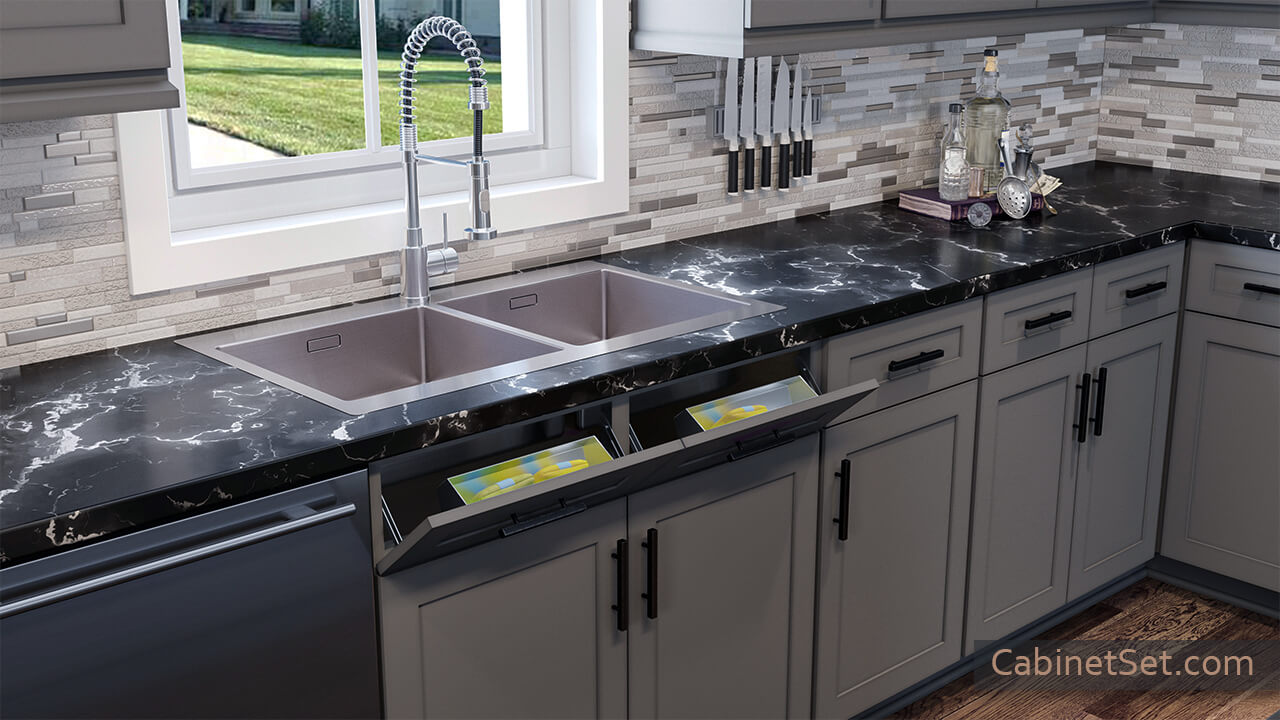

Salem Grey Shaker kitchen angle view with a farmhouse sink base cabinet.

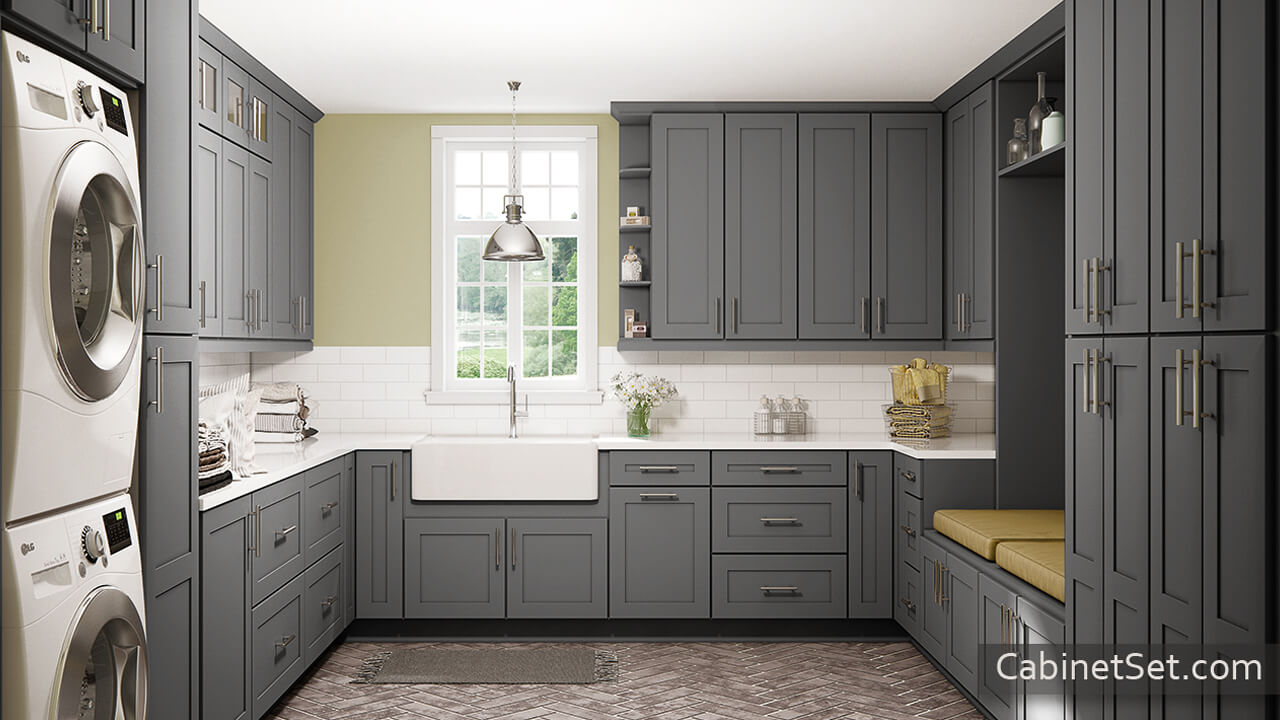

Salem Grey Shaker laundry full view with wall and base cabinets.

Salem Grey Shaker kitchen full view a range hood cover, wall and base cabinets.

Salem Grey Shaker kitchen angle view with a wine rack cabinet, wall and base cabinets.

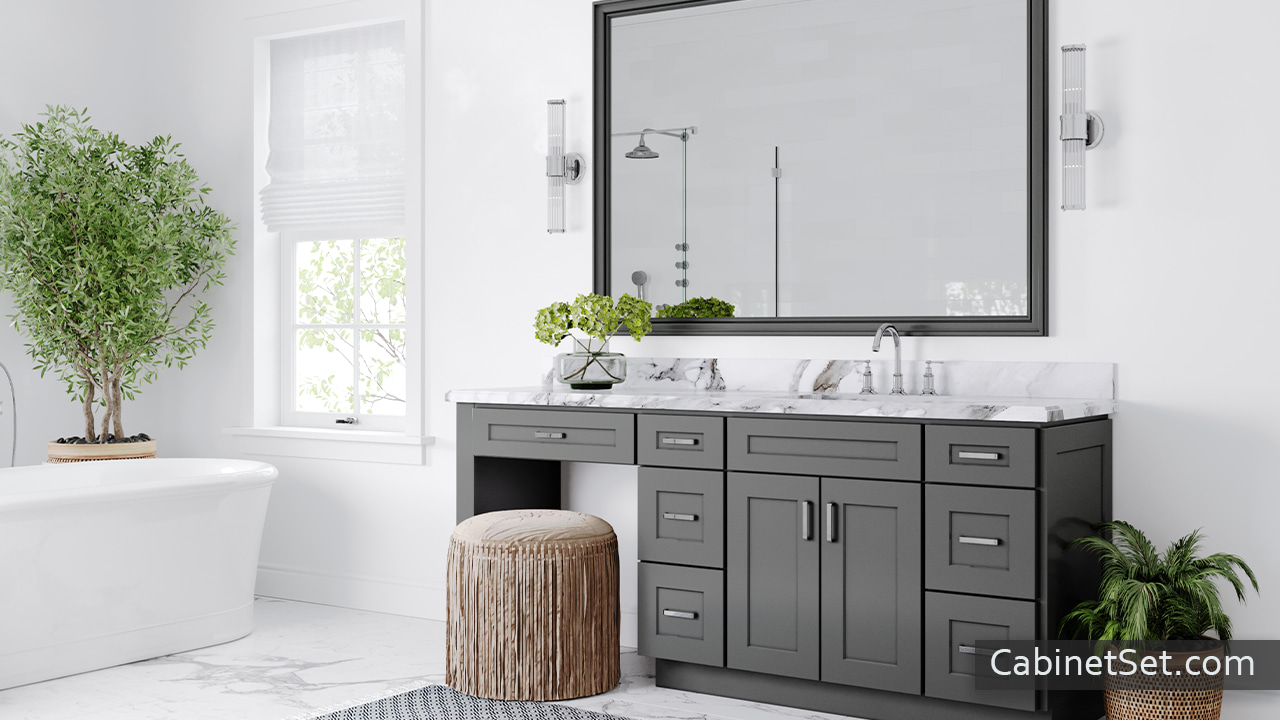

Salem Grey Shaker bathroom vanity cabinets.

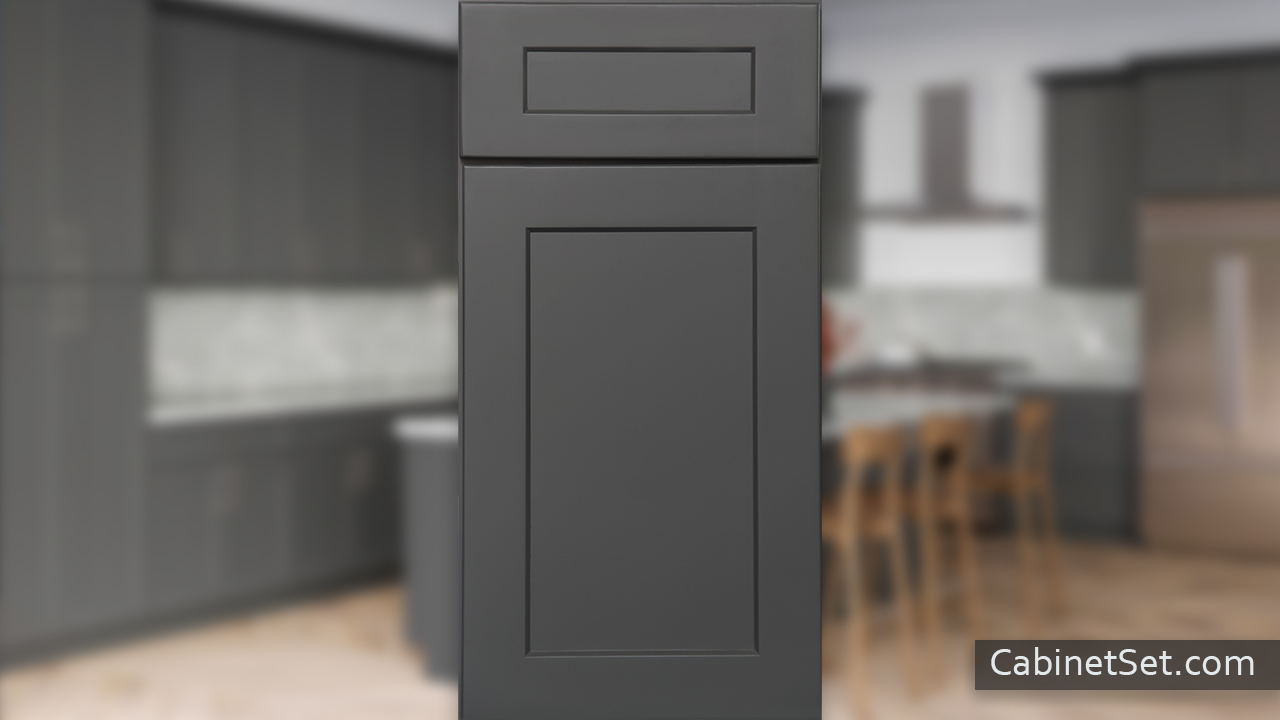

Salem Grey Shaker cabinet door under different light.

Color & Finish

Grey, UV coating paint

Profile & Overlay

Shaker style, full overlay

Slides & Hinges

Soft closing, under mount, full extension, 6 way adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Grey UV coating paint
Profile & overlay	Shaker style, full overlay
Wood species	Birch
Sides color	Matches cabinet front, no skins required.

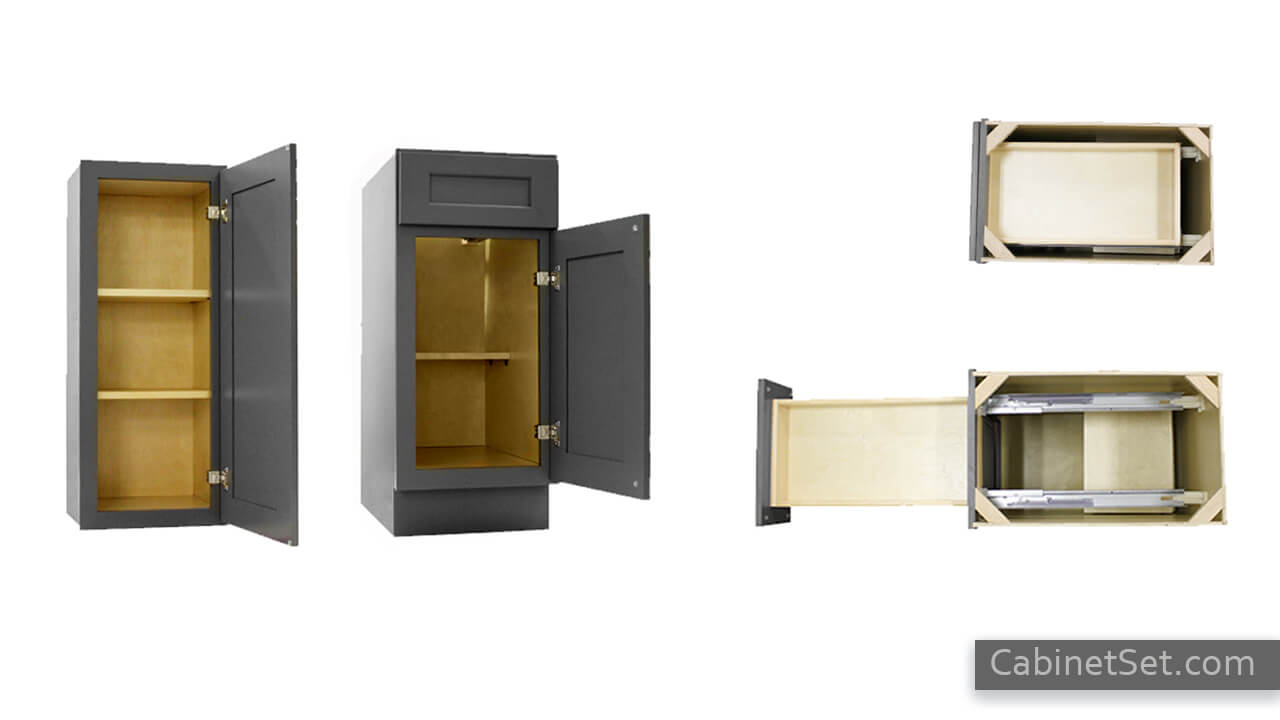

Drawers	5/8" thick dovetail solid wood frame, 5/16" thick plywood bottom, natural color finish. Soft closing, under mount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Interior color	UV coated natural interior. Glass door cabinets come with a matching (same as cabinet front) interior color.
Particle board	No particle board is used in this cabinet line construction
Doors	Five piece HDF (High Density Fiberboard) doors. Why do we use HDF?
Cabinet construction	1/2" plywood box with UV coated matching exterior. 1/2" thick plywood back panels.
Face frame	1-3/4" wide x 3/4" thick solid wood
Shelves	3/4" thick plywood with front edge banding, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Wood corner braces
Center stile	No center stile on wall and base cabinets up to 42" wide
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-1/4"
Upper drawer box height	3-1/4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	10-1/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/4" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	11-1/8"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly

Assembly Videos

Assembly Instructions

Wall Cabinets

Bathroom Vanities

Tall Cabinets

Base Cabinets

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

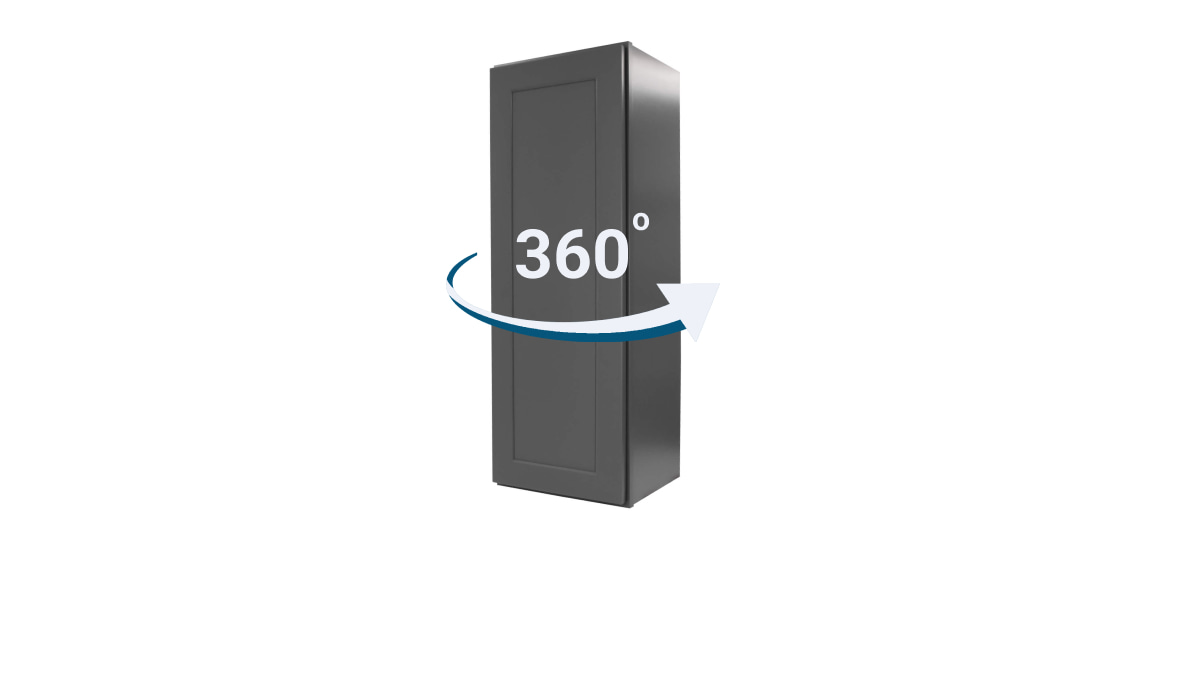

360° View

360 Degree View

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Quick Ship

We realize in some cases it is important to receive cabinets fast. It helps to minimize project downtime and quickly resume normal activities. That is why we started our Express Cabinet Solution Program™ for kitchen and bathroom cabinets. The fast ship cabinet lines are Guaranteed to Leave the Warehouses within 3 Business Days*. The fast shipping applies to select ready to assemble cabinet lines, see our Shipping and Return Policy for full details.
