Harmony Ember - RTA Kitchen Cabinets

Overview

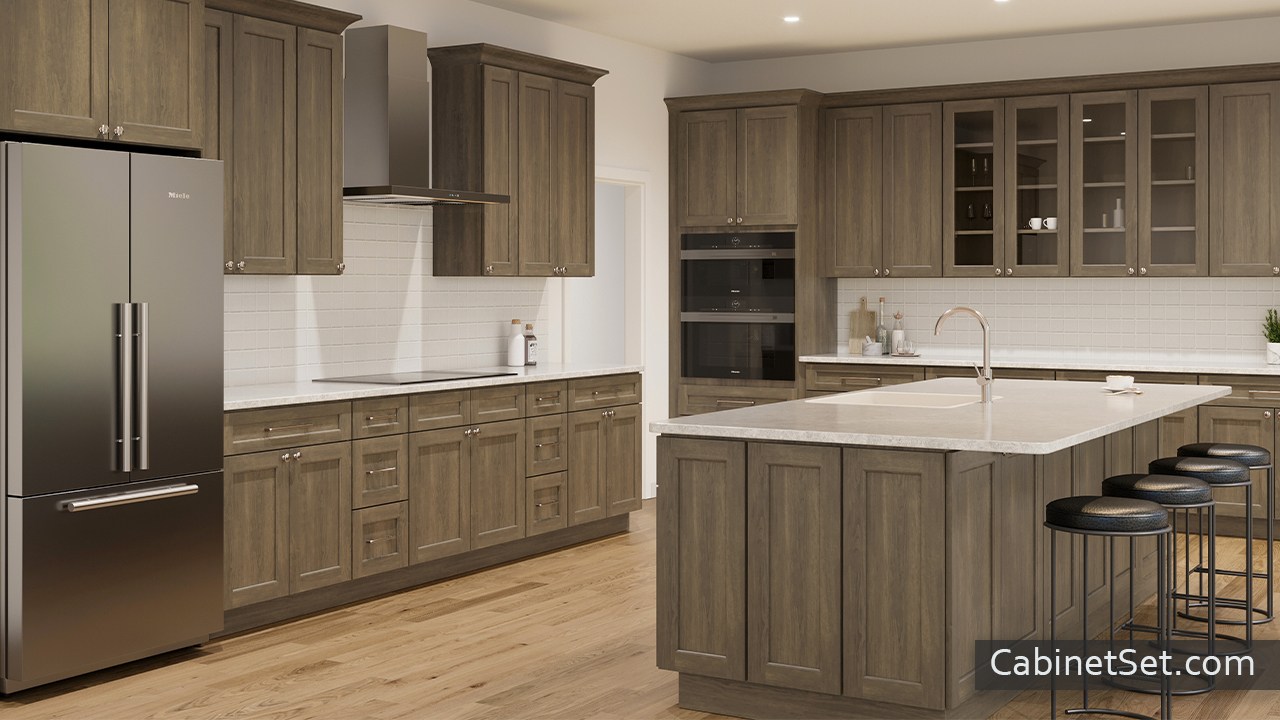

Harmony Ember kitchen angle view with an island and oven cabinet.

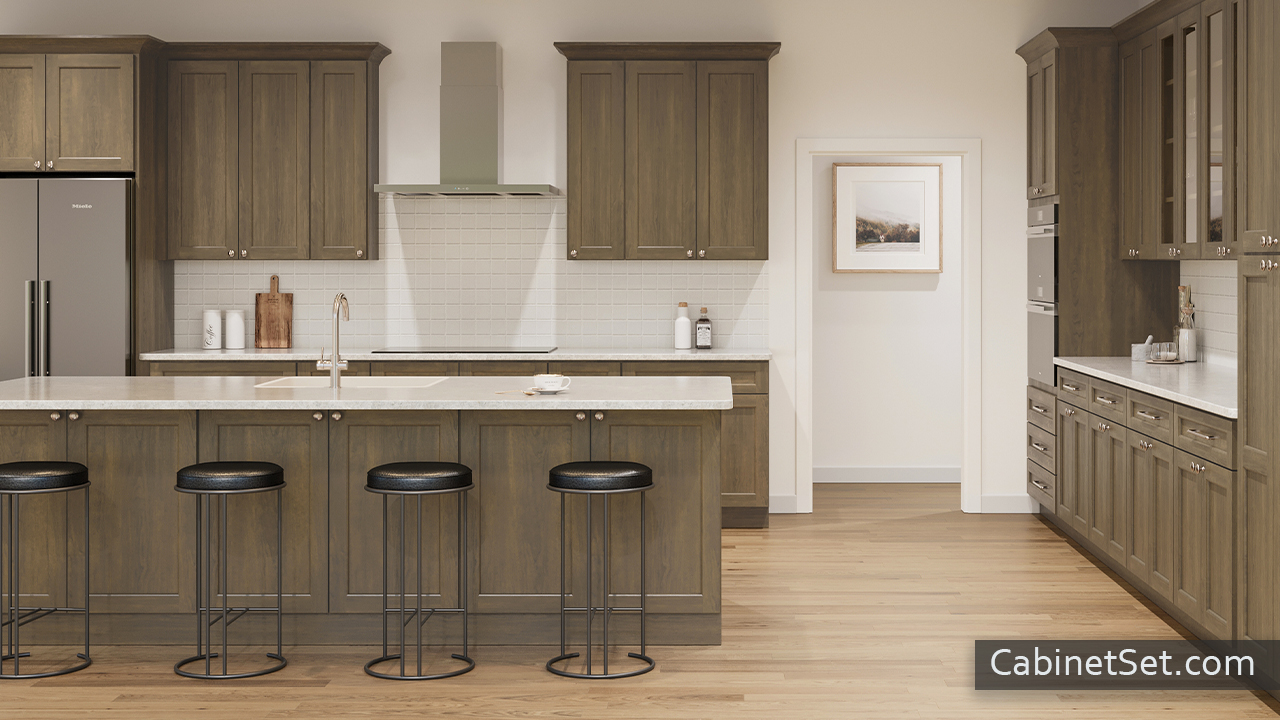

Harmony Ember kitchen front view cabinets.

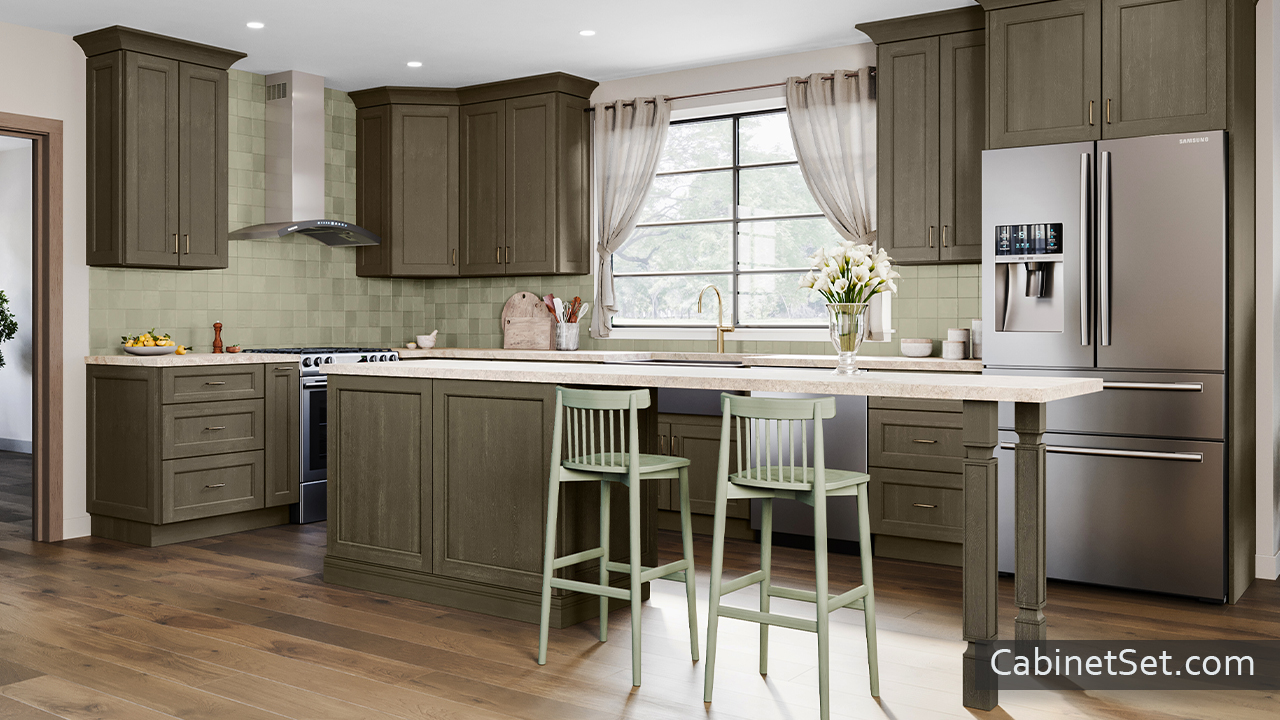

Harmony Ember kitcnen angle view with an island.

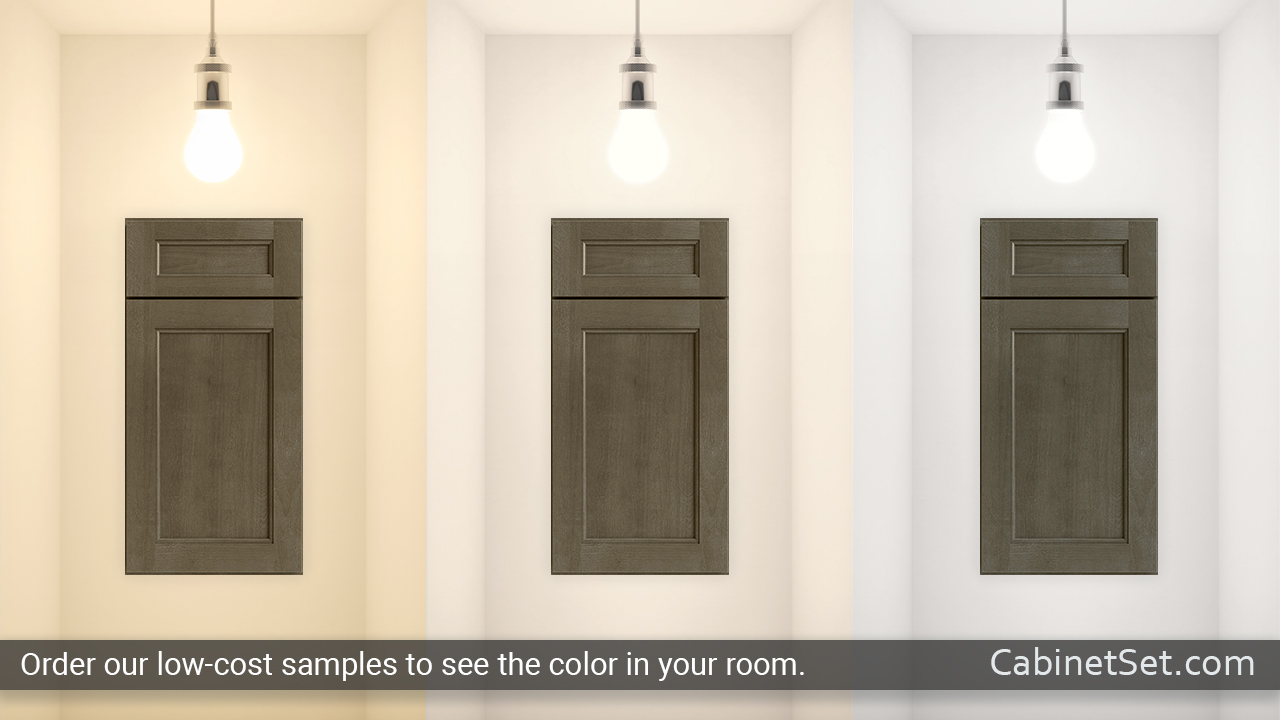

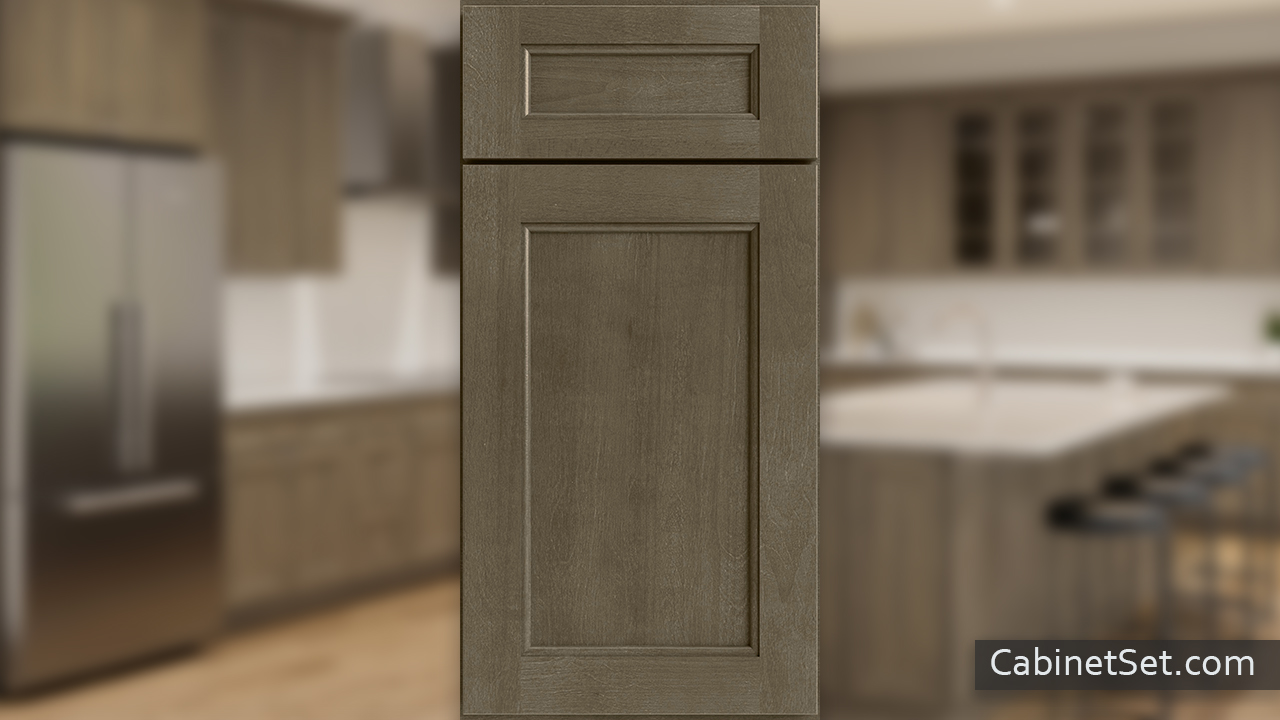

Harmony Ember cabinet door under different light.

Color, Profile & Overlay

Brown, stain, recessed panel, full overlay

Construction

Real plywood cabinet boxes.

Hinges

Soft closing, 6 way adjustable

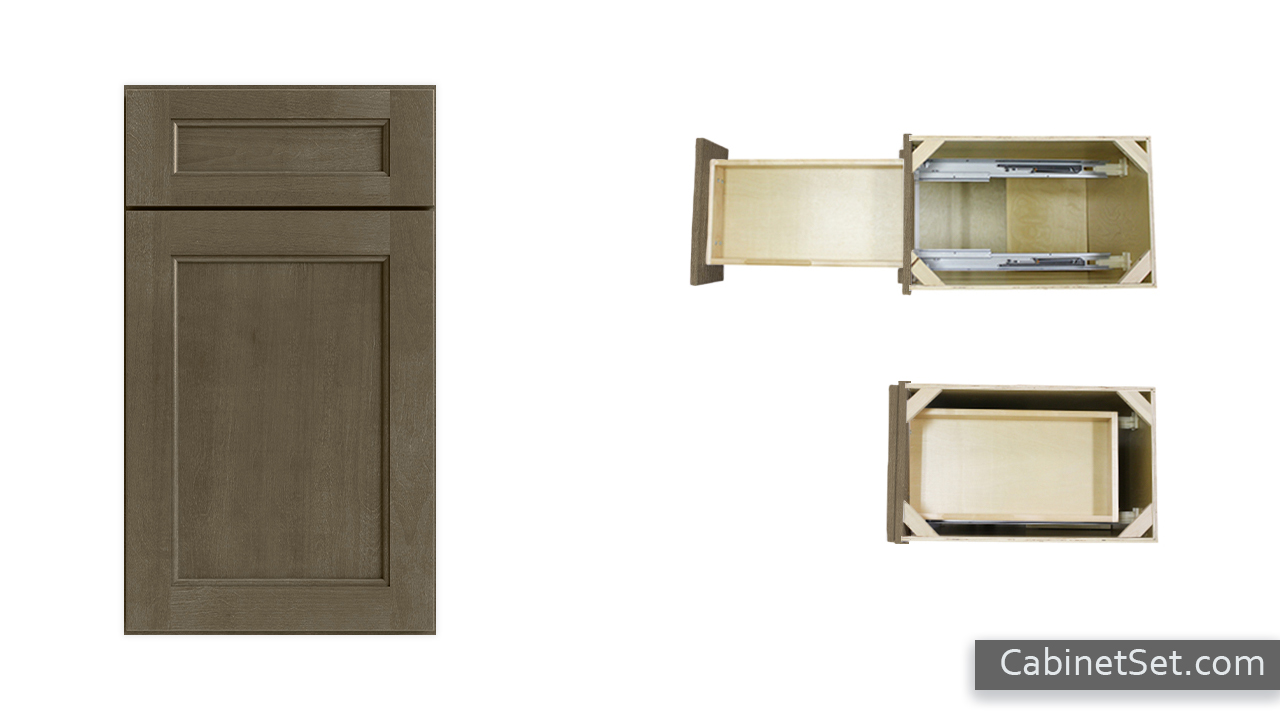

Drawers & Slides

Solid wood, dovetail, soft closing, undermount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 6-8 business days

Specifications

The cabinet specifications, including cabinet sizes, height, width, and other information are provided below. Please note that cabinet specifications vary depending on the cabinet line.

General specifications
Color & finish	Brown stain
Profile & overlay	Recessed panel, full overlay
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Sides color	Matches cabinet front, no skins required.
Drawers	5/8" thick dovetail solid wood frame, 5/16" thick plywood bottom, natural color finish. Soft closing, under mount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides examples: Video Picture
Interior color	UV coated natural interior. Glass door cabinets come with a matching (same as cabinet front) interior color.
Cabinet construction	1/2" plywood box with UV coated matching exterior. 1/2" thick plywood back panels.
Doors	Solid birch door frame and veneered MDF (Medium Density Fiberboard) center panel. Why do we use MDF?
Door frames	Approx. 2-3/4" wide
Face frame	1-3/4" wide x 3/4" thick solid wood
Shelves	3/4" thick plywood with front edge banding, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Wood corner braces
Center stile	No center stile on wall and base cabinets up to 42" wide
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Wall Cabinets
Shelf depth	Full depth
Top and bottom panels finish	Matches cabinet front

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-1/4"
Upper drawer box height	3-1/4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	10-1/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/4" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	11-1/8"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Full Overlay Installation
Full overlay cabinets have minimal clearance between doors/drawers and cabinet edges. When installing a cabinet next to a wall or another surface (e.g., a refrigerator panel), we recommend allowing at least 1/4" of additional clearance. Some installations may require more clearance, depending on the hardware and project-specific requirements. Use scribe molding or fillers to bridge any resulting gaps. Most hinges and drawer slides are adjustable; however, hinge and drawer slide adjustments alone may not be sufficient in all cases. See an example In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). However, hinge and drawer slide adjustments are typically still required for all cabinets to ensure proper door/drawer clearance and alignment.

About Specifications
Cabinet specification dimensions are typically converted from metric to inches and rounded, which may result in measurement variations. Room lighting and screen settings can also affect the appearance of cabinet colors. For the most accurate color representation, please order a sample. In rare cases, manufacturers may substitute certain items with similar products of comparable, but not identical, construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. If you have any questions about cabinet styles or specifications, feel free to contact us.

Assembly

Assembly Videos

Assembly Instructions

Wall Cabinets

Bathroom Vanities

Tall Cabinets

Base Cabinets

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Harmony Dune

Harmony Ember

Quick Ship

We realize in some cases it is important to receive cabinets fast. It helps to minimize project downtime and quickly resume normal activities. That is why we started our Express Cabinet Solution Program™ for kitchen and bathroom cabinets. The fast ship cabinet lines are Guaranteed to Leave the Warehouses within 3-7 Business Days*. The fast shipping applies to select ready to assemble cabinet lines, see our Shipping and Return Policy for full details.
