Charleston Cappuccino - RTA Kitchen Cabinets

Overview

Charleston Cappuccino kitchen full view with an island.

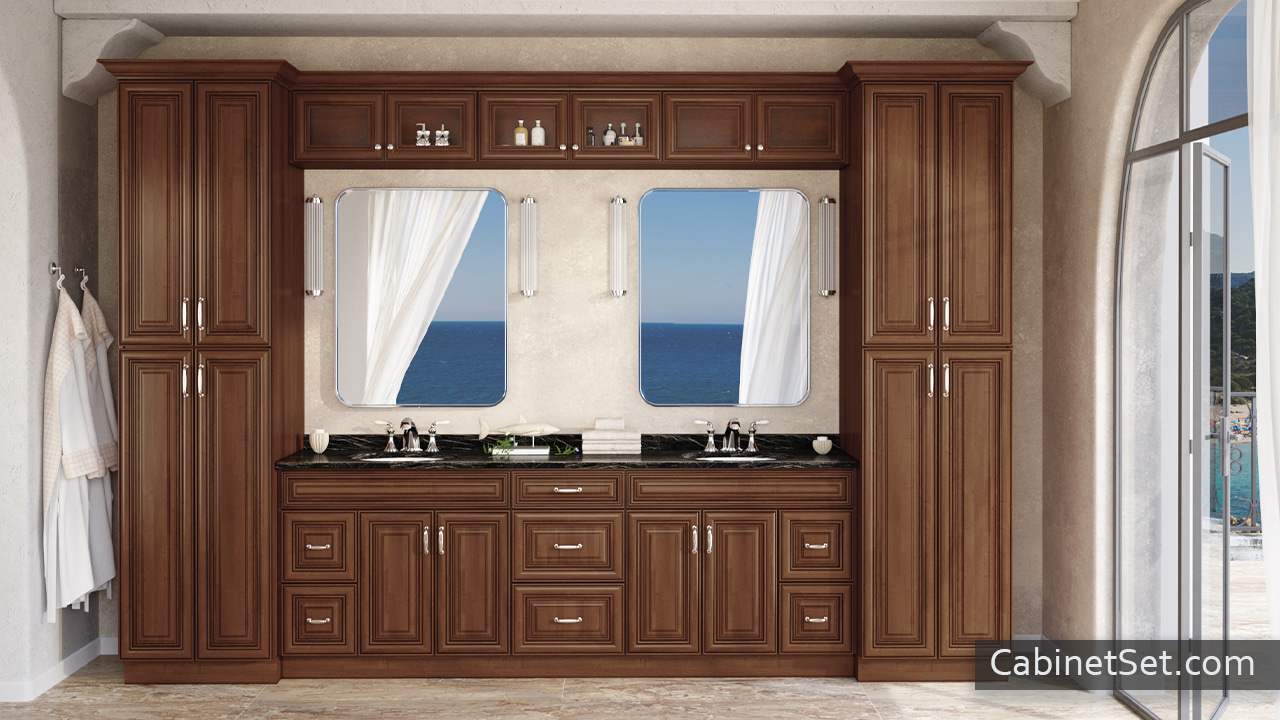

Charleston Cappuccino bathroom vanities.

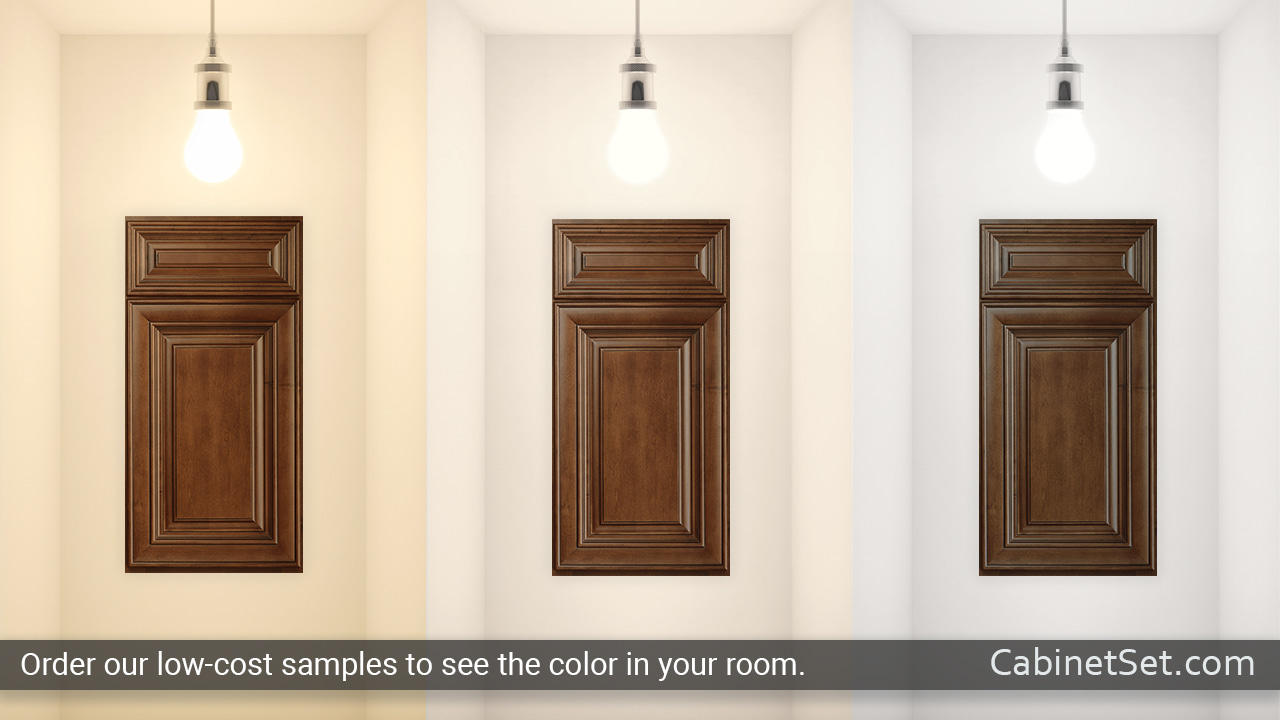

Charleston Cappuccino cabinet door under different light.

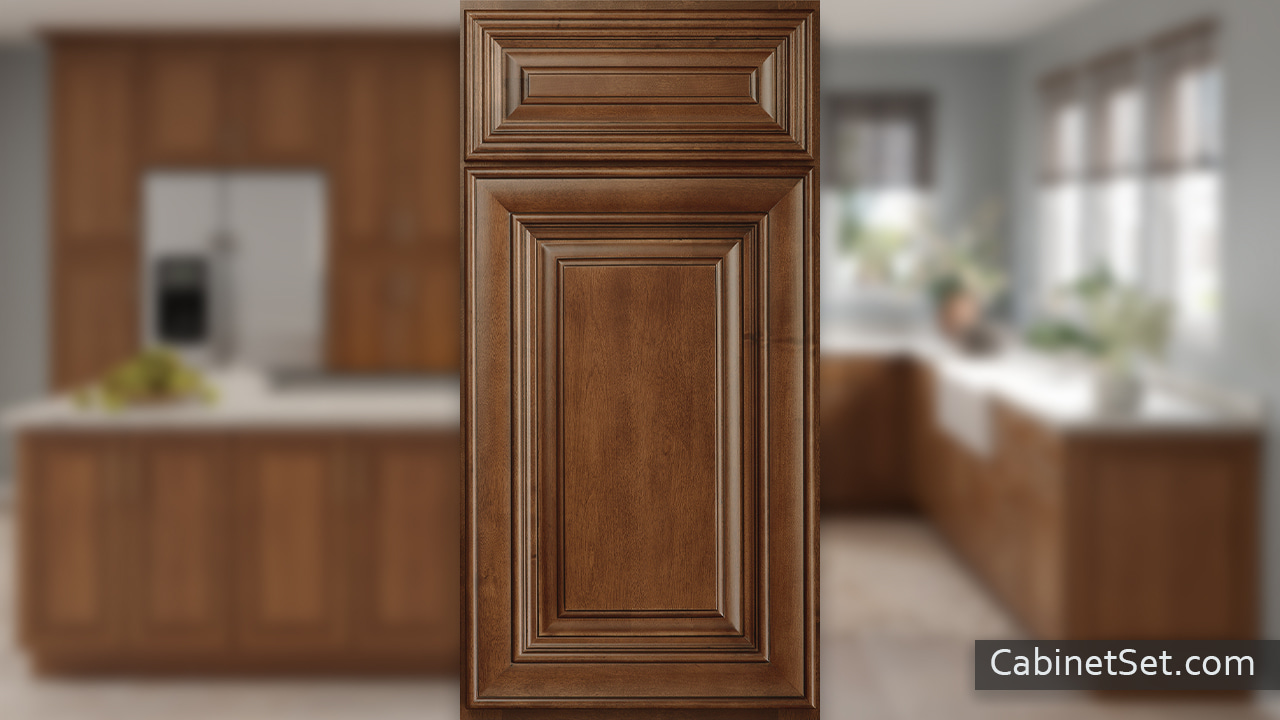

Color, Profile & Overlay

Chocolate with dark glaze, UV coating stain and glaze, raised panel, full overlay

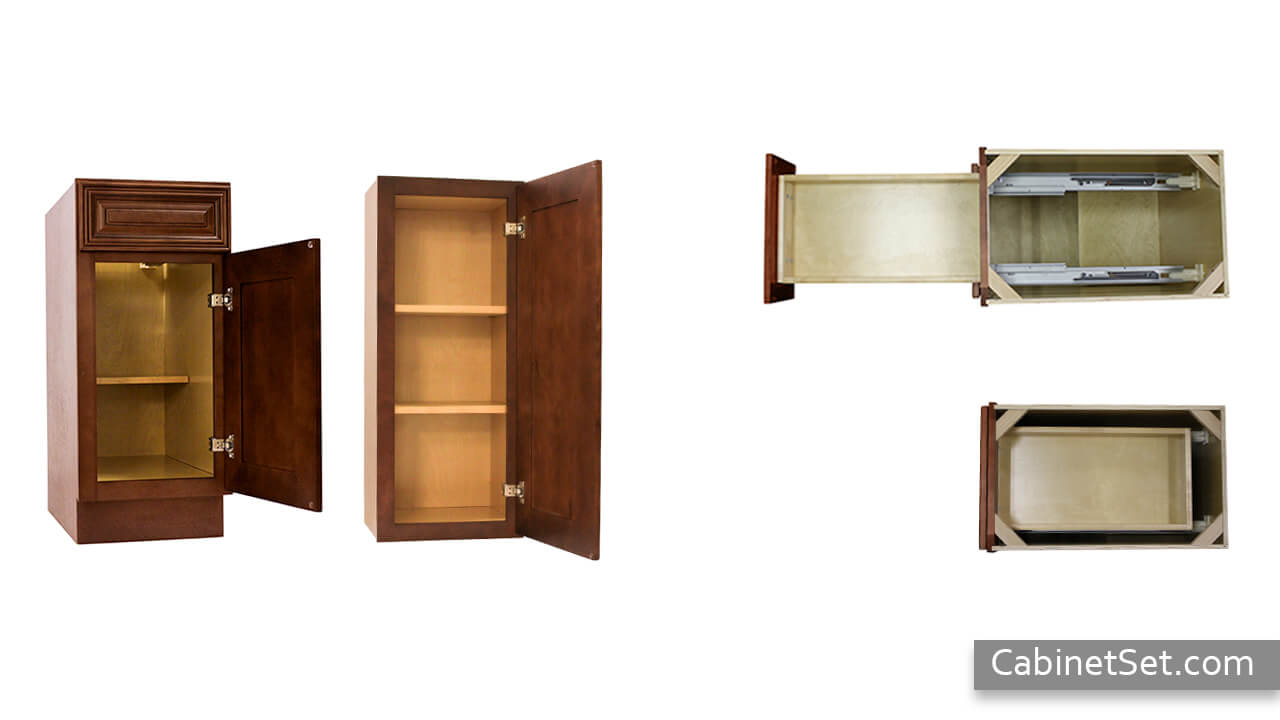

Construction

Real plywood cabinet boxes.

Hinges

Soft closing, 6 way adjustable

Drawers & Slides

Solid wood, dovetail, soft closing, undermount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 6-8 business days

Specifications

The cabinet specifications, including cabinet sizes, height, width, and other information are provided below. Please note that cabinet specifications vary depending on the cabinet line.

General specifications
Color & finish	Chocolate stain with dark glaze
Profile & overlay	Raised panel, full overlay
Sides color	Matches cabinet front, no skins required.
Drawers	5/8" thick dovetail solid wood frame, 5/16" thick plywood bottom, natural color finish. Soft closing, under mount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Interior color	UV coated natural interior. Glass door cabinets come with a matching (same as cabinet front) interior color.
Doors	3/4" solid Birch hardwood door frame and veneered MDF center panel. Why do we use MDF?
Cabinet construction	1/2" plywood box with UV coated matching exterior. 1/2" thick plywood back panels.
Face frame	1-3/4" wide x 3/4" thick solid wood
Shelves	3/4" thick plywood with front edge banding, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Wood corner braces
Center stile	No center stile on wall and base cabinets up to 42" wide
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

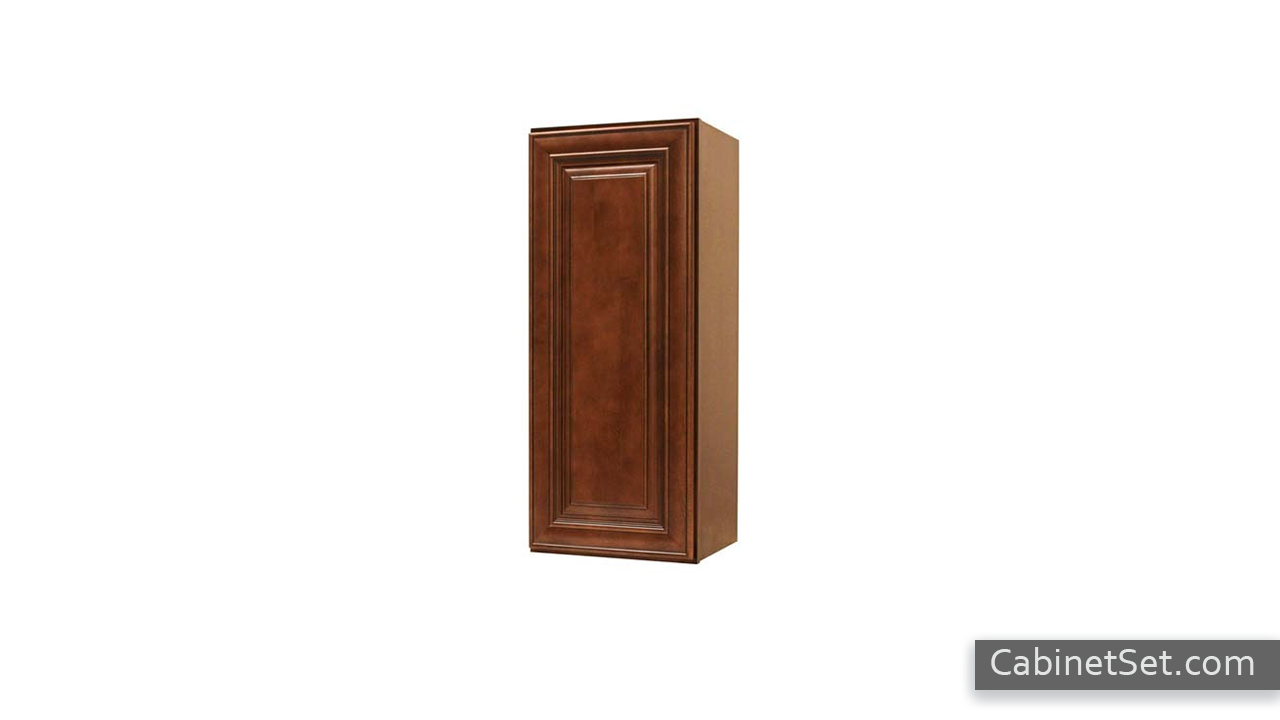

Wall Cabinets
Shelf depth	Full depth
Top and bottom panels finish	Matches cabinet front

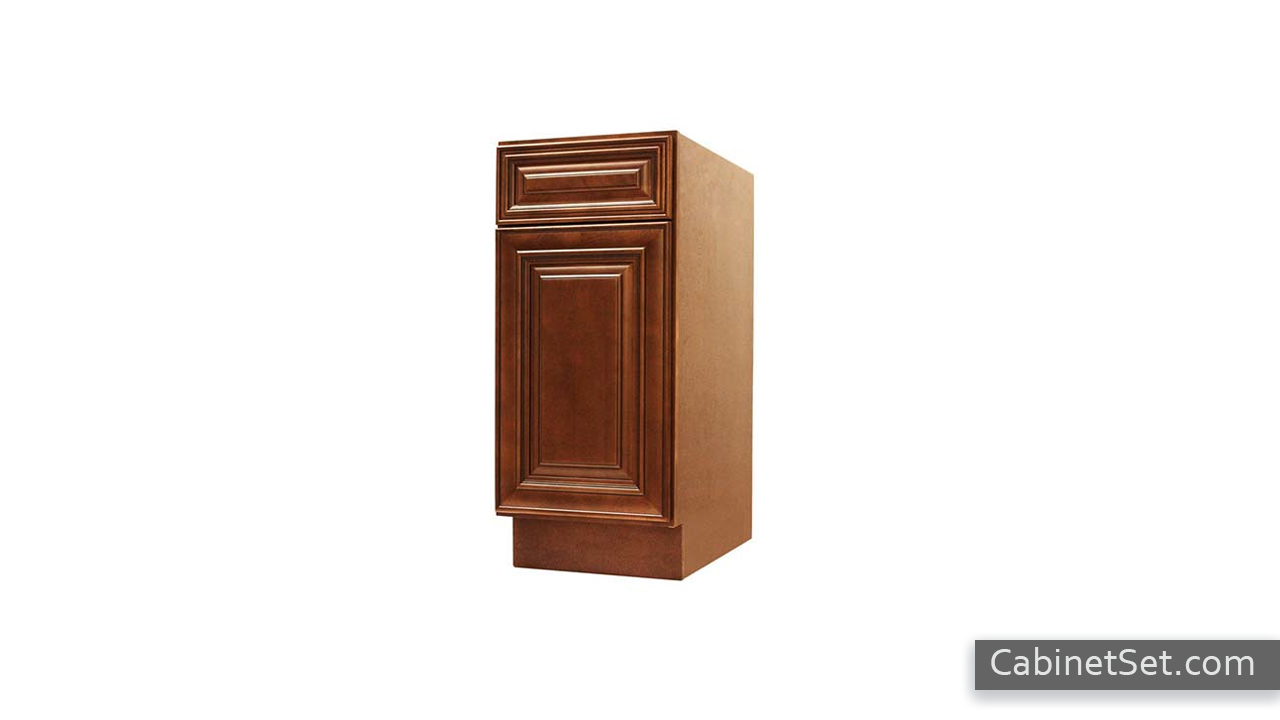

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-1/4"
Upper drawer box height	3-1/4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	10-1/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/4" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	11-1/8"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Full Overlay Installation
Full overlay cabinets have minimal clearance between doors/drawers and cabinet edges. When installing a cabinet next to a wall or another surface (e.g., a refrigerator panel), we recommend allowing at least 1/4" of additional clearance. Some installations may require more clearance, depending on the hardware and project-specific requirements. Use scribe molding or fillers to bridge any resulting gaps. Most hinges and drawer slides are adjustable; however, hinge and drawer slide adjustments alone may not be sufficient in all cases. See an example In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). However, hinge and drawer slide adjustments are typically still required for all cabinets to ensure proper door/drawer clearance and alignment.

About Specifications
Cabinet specification dimensions are typically converted from metric to inches and rounded, which may result in measurement variations. Room lighting and screen settings can also affect the appearance of cabinet colors. For the most accurate color representation, please order a sample. In rare cases, manufacturers may substitute certain items with similar products of comparable, but not identical, construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. If you have any questions about cabinet styles or specifications, feel free to contact us.

Assembly

Assembly Videos

Assembly Instructions

Wall Cabinets

Bathroom Vanities

Tall Cabinets

Base Cabinets

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

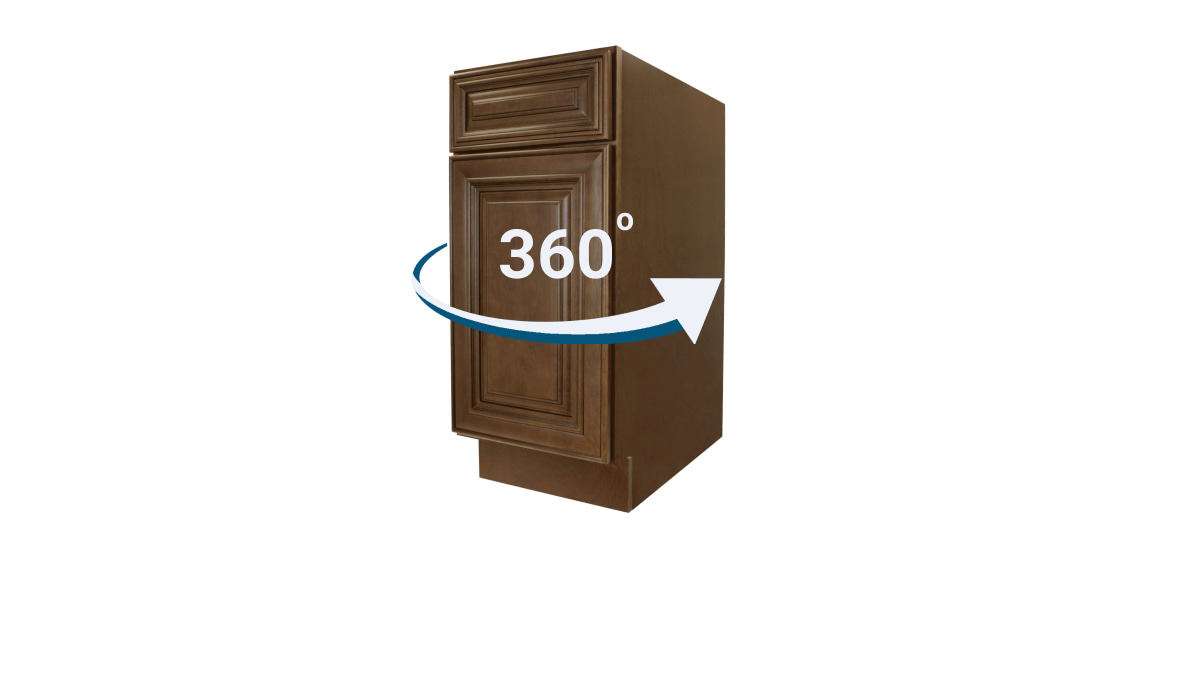

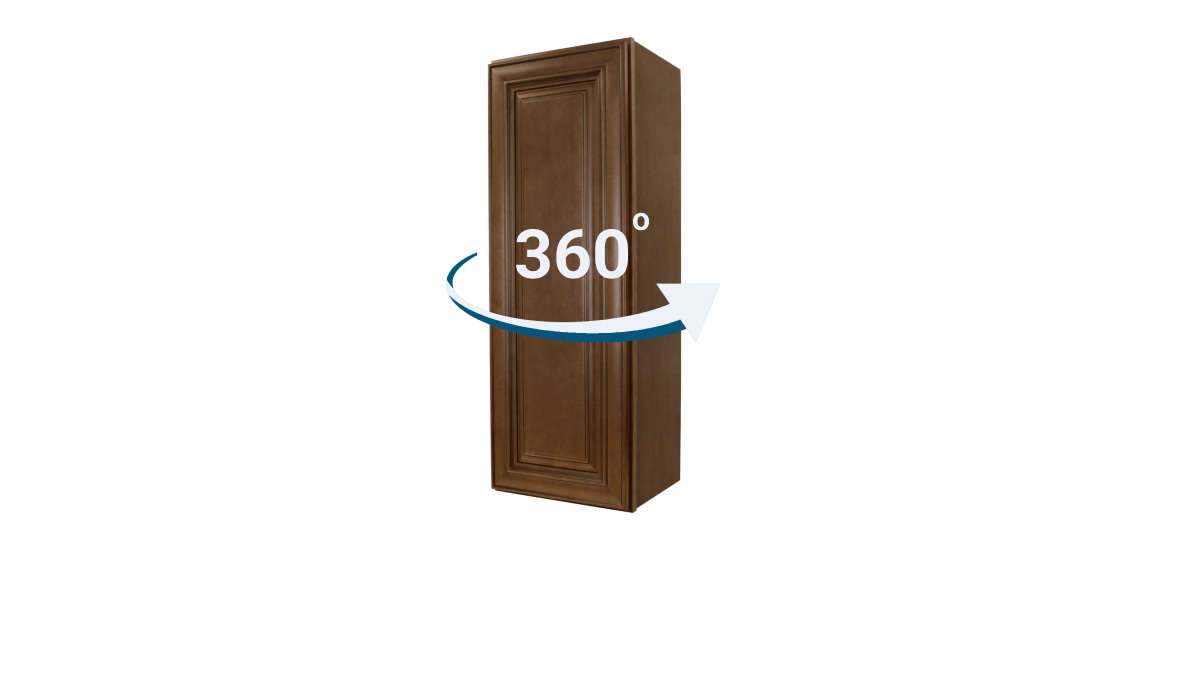

360° View

360 Degree View

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Charleston Cream

Charleston Cappuccino

PDF Catalog

Refundable Samples
Charleston Cappuccino Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Charleston Cappuccino Sample Door
Details
Approximate size: 11" wide x 15" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W0930 Charleston Cappuccino RTA
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $120.79 Regular Price $180.29
W1230 Charleston Cappuccino RTA
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $133.11 Regular Price $198.67
W1530 Charleston Cappuccino RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $155.75 Regular Price $232.47
W1830 Charleston Cappuccino RTA
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $176.81 Regular Price $263.90
W2130 Charleston Cappuccino RTA
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $197.47 Regular Price $294.73
Double Door Wall Cabinets - 30" High
W2430 Charleston Cappuccino RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $224.89 Regular Price $335.66
W2730 Charleston Cappuccino RTA
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $248.72 Regular Price $371.23
W3030 Charleston Cappuccino RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $267.40 Regular Price $399.10
W3330 Charleston Cappuccino RTA
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $290.44 Regular Price $433.49
W3630 Charleston Cappuccino RTA
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $308.72 Regular Price $460.78
Single Door Wall Cabinets - 36" High
W0936 Charleston Cappuccino RTA
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $131.12 Regular Price $195.70
W1236 Charleston Cappuccino RTA
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $151.38 Regular Price $225.94
W1536 Charleston Cappuccino RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $175.22 Regular Price $261.52
W1836 Charleston Cappuccino RTA
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $197.47 Regular Price $294.73
W2136 Charleston Cappuccino RTA
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $228.86 Regular Price $341.58
Double Door Wall Cabinets - 36" High
W2436 Charleston Cappuccino RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $263.82 Regular Price $393.76
W2736 Charleston Cappuccino RTA
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $286.86 Regular Price $428.15
W3036 Charleston Cappuccino RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $309.10 Regular Price $461.35
W3336 Charleston Cappuccino RTA
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $332.55 Regular Price $496.34
W3636 Charleston Cappuccino RTA
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $354.40 Regular Price $528.96
Single Door Wall Cabinets - 42" High
W0942 Charleston Cappuccino RTA
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $151.78 Regular Price $226.53
W1242 Charleston Cappuccino RTA
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $172.44 Regular Price $257.38
W1542 Charleston Cappuccino RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $204.22 Regular Price $304.81
W1842 Charleston Cappuccino RTA
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $232.03 Regular Price $346.32
W2142 Charleston Cappuccino RTA
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $254.68 Regular Price $380.12
Double Door Wall Cabinets - 42" High
W2442 Charleston Cappuccino RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $306.73 Regular Price $457.81
W2742 Charleston Cappuccino RTA
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $328.18 Regular Price $489.82
W3042 Charleston Cappuccino RTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $352.81 Regular Price $526.58
W3342 Charleston Cappuccino RTA
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $379.04 Regular Price $565.73
W3642 Charleston Cappuccino RTA
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $408.43 Regular Price $609.60
Bridge Wall Cabinets
W3012 Charleston Cappuccino RTA
Width: 30"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $150.98 Regular Price $225.35
W3612 Charleston Cappuccino RTA
Width: 36"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $166.09 Regular Price $247.89
W3015 Charleston Cappuccino RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $168.46 Regular Price $251.44
W3615 Charleston Cappuccino RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $178.80 Regular Price $266.87
W3018 Charleston Cappuccino RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $183.57 Regular Price $273.98
W3618 Charleston Cappuccino RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $200.26 Regular Price $298.89
W3024 Charleston Cappuccino RTA
Width: 30"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $219.33 Regular Price $327.36
W3624 Charleston Cappuccino RTA
Width: 36"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $258.26 Regular Price $385.46
RW3012 Charleston Cappuccino RTA
Width: 30"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $203.04 Regular Price $303.04
RW3312 Charleston Cappuccino RTA
Width: 33"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $209.38 Regular Price $312.51
RW3612 Charleston Cappuccino RTA
Width: 36"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $212.57 Regular Price $317.27
RW3015 Charleston Cappuccino RTA
Width: 30"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $212.57 Regular Price $317.27
RW3315 Charleston Cappuccino RTA
Width: 33"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $222.49 Regular Price $332.08
RW3615 Charleston Cappuccino RTA
Width: 36"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $224.48 Regular Price $335.05
RW3018 Charleston Cappuccino RTA
Width: 30"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $227.66 Regular Price $339.79
RW3318 Charleston Cappuccino RTA
Width: 33"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $239.57 Regular Price $357.57
RW3618 Charleston Cappuccino RTA
Width: 36"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $240.77 Regular Price $359.36
RW3024 Charleston Cappuccino RTA
Width: 30"
Height: 24"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors and 1 shelf.

Special Price $297.98 Regular Price $444.74

Show More Products

About Charleston Cappuccino

The use of the UV coating in the finish process of Charleston Cappuccino Kitchen Cabinets will keep the wood from aging and retard discoloration longer. This kitchen line features a raised panel door profile which is accompanied by full overlay doors and drawers. Beautiful chocolate color gives a classic fine look to the cabinets.
