Newport Blaze Black Shaker - RTA Cabinets

Overview

Newport Blaze Black Shaker kitchen angle view with an island.

Newport Blaze Black Shaker cabinet front.

Newport Blaze Black Shaker kitchen front view with an island.

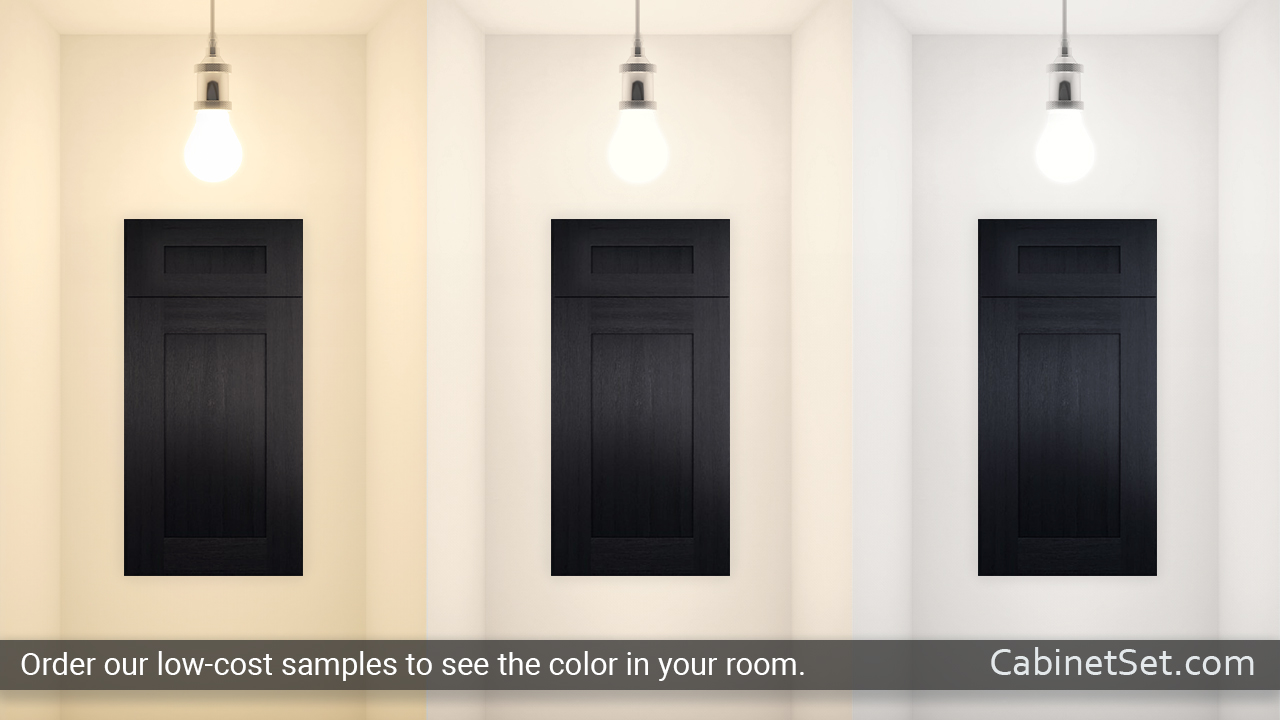

Newport Blaze Black Shaker cabinet door under different light.

Color, Profile & Overlay

Black, waterborne UV finish, shaker style, full overlay

Construction

Real plywood cabinet boxes.

Hinges

Soft closing, 6 way adjustable

Drawers & Slides

Solid wood, dovetail, soft closing, undermount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The cabinet specifications, including cabinet sizes, height, width, and other information are provided below. Please note that cabinet specifications vary depending on the cabinet line.

General specifications
Color & finish	Black waterborne UV finish from Sherwin Williams®
Profile & overlay	Shaker style, full overlay
Sides color	Matches cabinet front, no skins required.
Drawers	Drawer length 21", dovetail construction, natural finish. 17 mm (close to 3/4" thick) dovetail solid wood frame. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: Video, Picture. Drawer box: Picture.
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color	Matches cabinet front
Doors	3/4" solid eucalyptus grandis door frame, MDF with both side eucalyptus grandis veneer door center.
Cabinet construction	Sides, top, and bottom: 1/2" A-Grade plywood with wood veneer. Back panels may vary depending on the cabinet. Picture
Face frame	1-1/2" x 3/4" eucalyptus grandis. Framed or Frameless
Shelves	3/4" thick A-Grade plywood with wood veneer, adjustable. Clear plastic shelf pins.
Toe kick	1/2", color matches cabinet front.
Base corner supports	Base with wood corner brackets and I-Beam construction.
Center stile	No center stile on all wall and base cabinets up to 36" wide
Door and drawer stoppers	Clear adhesive bumpers. Picture
Hinge side	Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance
Door frames	Approx. 3" wide

Base Cabinets
Door height	22-3/4"
Upper drawer front height	6-1/4"
Upper drawer box height	3-7/8"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	12"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	n/a
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Top and bottom panels finish	Matches cabinet front

Full Overlay Installation
Full overlay cabinets have minimal clearance between doors/drawers and cabinet edges. When installing a cabinet next to a wall or another surface (e.g., a refrigerator panel), we recommend allowing at least 1/4" of additional clearance. Some installations may require more clearance, depending on the hardware and project-specific requirements. Use scribe molding or fillers to bridge any resulting gaps. Most hinges and drawer slides are adjustable; however, hinge and drawer slide adjustments alone may not be sufficient in all cases. See an example In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). However, hinge and drawer slide adjustments are typically still required for all cabinets to ensure proper door/drawer clearance and alignment.

About Specifications
Cabinet specification dimensions are typically converted from metric to inches and rounded, which may result in measurement variations. Room lighting and screen settings can also affect the appearance of cabinet colors. For the most accurate color representation, please order a sample. In rare cases, manufacturers may substitute certain items with similar products of comparable, but not identical, construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. If you have any questions about cabinet styles or specifications, feel free to contact us.

Assembly

Please check the assembly information below and instructions that come with cabinets.

Assembly Videos

Assembly Instructions

Assembly may vary depending on an item and/or cabinet type. For more information, see assembly instructions that come with cabinets. Feel free to contact our support team with any questions.

B09 Cabinet Drawer
TCR Hardware

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Newport White Shaker

Newport Champagne Shaker

Bridgeport Grey Shaker

Newport Grey Shaker

Newport Homestead Oak Shaker

Newport Woodland Shaker

Newport Smoke Shaker

Newport Blue Shaker

Newport Espresso Shaker

Newport Blaze Black Shaker

PDF Catalog

Refundable Samples
Newport Blaze Black Shaker Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Newport Blaze Black Shaker Sample
Details
Approximate door size: 14-5/8" wide x 14-1/4" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W0930 Newport Blaze Black Shaker RTA
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $164.07 Regular Price $244.88
W1230 Newport Blaze Black Shaker RTA
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $181.74 Regular Price $271.26
W1530 Newport Blaze Black Shaker RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $198.27 Regular Price $295.93
W1830 Newport Blaze Black Shaker RTA
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $219.50 Regular Price $327.61
W2130 Newport Blaze Black Shaker RTA
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $264.36 Regular Price $394.57
Double Door Wall Cabinets - 30" High
W2430 Newport Blaze Black Shaker RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $284.44 Regular Price $424.53
W2730 Newport Blaze Black Shaker RTA
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $310.41 Regular Price $463.30
W3030 Newport Blaze Black Shaker RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $321.00 Regular Price $479.10
W3330 Newport Blaze Black Shaker RTA
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $344.62 Regular Price $514.36
W3630 Newport Blaze Black Shaker RTA
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $368.21 Regular Price $549.57
Single Door Wall Cabinets - 36" High
W0936 Newport Blaze Black Shaker RTA
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $207.73 Regular Price $310.05
W1236 Newport Blaze Black Shaker RTA
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $219.50 Regular Price $327.61
W1536 Newport Blaze Black Shaker RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $238.41 Regular Price $355.83
W1836 Newport Blaze Black Shaker RTA
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $264.36 Regular Price $394.57
W2136 Newport Blaze Black Shaker RTA
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $316.31 Regular Price $472.10
Double Door Wall Cabinets - 36" High
W2436 Newport Blaze Black Shaker RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $338.73 Regular Price $505.56
W2736 Newport Blaze Black Shaker RTA
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $383.57 Regular Price $572.49
W3036 Newport Blaze Black Shaker RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $414.24 Regular Price $618.27
W3336 Newport Blaze Black Shaker RTA
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $440.21 Regular Price $657.03
W3636 Newport Blaze Black Shaker RTA
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $460.28 Regular Price $686.99
Single Door Wall Cabinets - 42" High
W0942 Newport Blaze Black Shaker RTA
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $228.98 Regular Price $341.76
W1242 Newport Blaze Black Shaker RTA
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $241.94 Regular Price $361.11
W1542 Newport Blaze Black Shaker RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $263.20 Regular Price $392.83
W1842 Newport Blaze Black Shaker RTA
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $292.68 Regular Price $436.83
W2142 Newport Blaze Black Shaker RTA
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $351.71 Regular Price $524.94
Double Door Wall Cabinets - 42" High
W2442 Newport Blaze Black Shaker RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $378.84 Regular Price $565.43
W2742 Newport Blaze Black Shaker RTA
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $442.57 Regular Price $660.55
W3042 Newport Blaze Black ShakerRTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $489.79 Regular Price $731.03
W3342 Newport Blaze Black Shaker RTA
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $515.73 Regular Price $769.75
W3642 Newport Blaze Black Shaker RTA
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $549.96 Regular Price $820.83
Bridge Wall Cabinets
W3012 Newport Blaze Black Shaker RTA
Width: 30"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $184.12 Regular Price $274.81
W3312 Newport Blaze Black Shaker RTA
Width: 33"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $196.62 Regular Price $293.46
W3612 Newport Blaze Black Shaker RTA
Width: 36"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $206.53 Regular Price $308.25
W2415 Newport Blaze Black Shaker RTA
Width: 24"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $184.12 Regular Price $274.81
W3015 Newport Blaze Black Shaker RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $206.53 Regular Price $308.25
W3315 Newport Blaze Black Shaker RTA
Width: 33"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $224.24 Regular Price $334.69
W3615 Newport Blaze Black Shaker RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $227.78 Regular Price $339.97
W2418 Newport Blaze Black Shaker RTA
Width: 24"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $198.27 Regular Price $295.93
W3018 Newport Blaze Black Shaker RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $227.78 Regular Price $339.97
W3318 Newport Blaze Black Shaker RTA
Width: 33"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $241.94 Regular Price $361.11
W3618 Newport Blaze Black Shaker RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $258.48 Regular Price $385.79
W2424 Newport Blaze Black Shaker RTA
Width: 24"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $254.92 Regular Price $380.48
W3024 Newport Blaze Black Shaker RTA
Width: 30"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $285.61 Regular Price $426.28
W3324 Newport Blaze Black Shaker RTA
Width: 33"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $305.67 Regular Price $456.22
W3624 Newport Blaze Black Shaker RTA
Width: 36"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $326.91 Regular Price $487.93
RW3612 Newport Blaze Black Shaker RTA
Width: 36"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $279.71 Regular Price $417.48
RW3015 Newport Blaze Black Shaker RTA
Width: 30"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $280.88 Regular Price $419.23
RW3315 Newport Blaze Black Shaker RTA
Width: 33"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $295.05 Regular Price $440.38

Show More Products

About Newport Blaze Black Shaker

The Newport Blaze Black Shaker RTA kitchen cabinets offer a striking combination of modern style, superior quality, and versatile options for any kitchen renovation. Featuring a dramatic matte black finish and timeless shaker profile, these cabinets elevate contemporary and transitional spaces alike.

A wide selection of sizes and configurations ensures a custom fit for any layout. Optional accessories, including spice cabinet conversions and glass doors, further enhance functionality and design flexibility. With premium materials and a focus on easy installation, Newport Blaze Black Shaker cabinets deliver lasting elegance and value to any kitchen project.

Newport Blaze Black Shaker - RTA Cabinets

Free Design Assistance

Assembly Videos

Assembly Instructions

Installation Information

About Newport Blaze Black Shaker
