Bridgeport Grey Shaker - RTA Cabinets

Overview

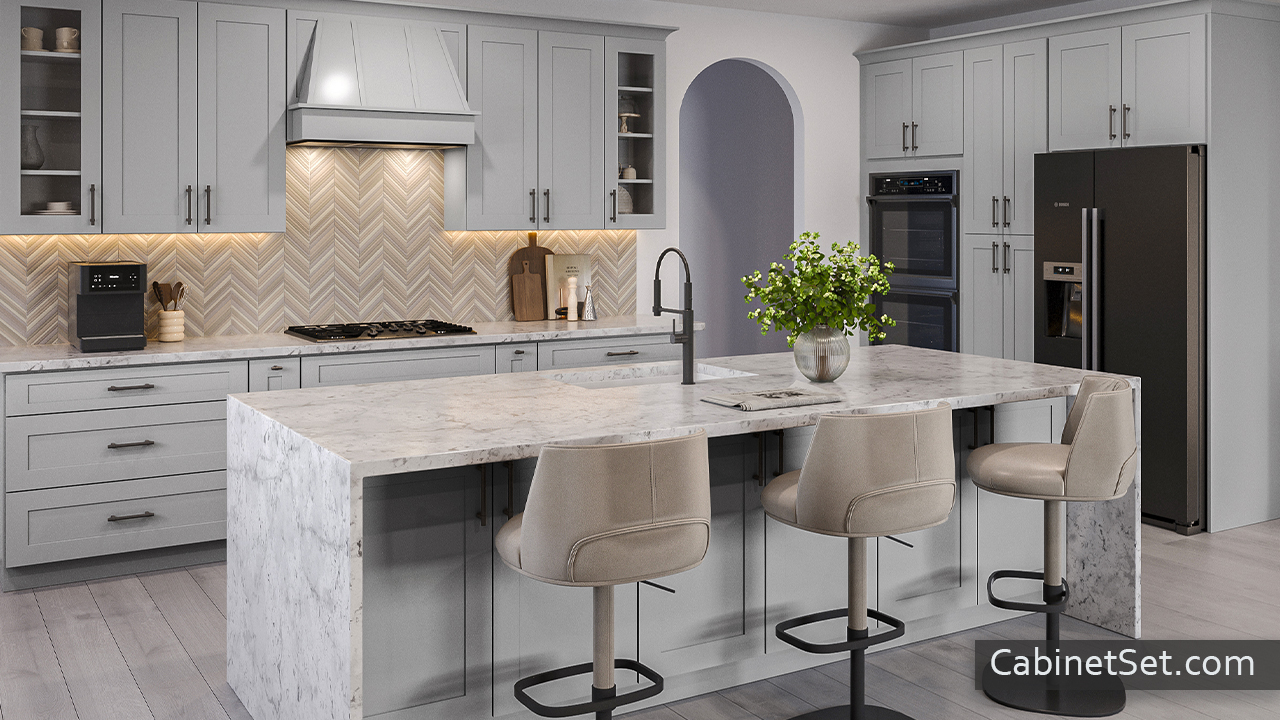

Bridgeport Grey Shaker kitchen full view with an island.

Bridgeport Grey Shaker bathroom vanity cabinets full view.

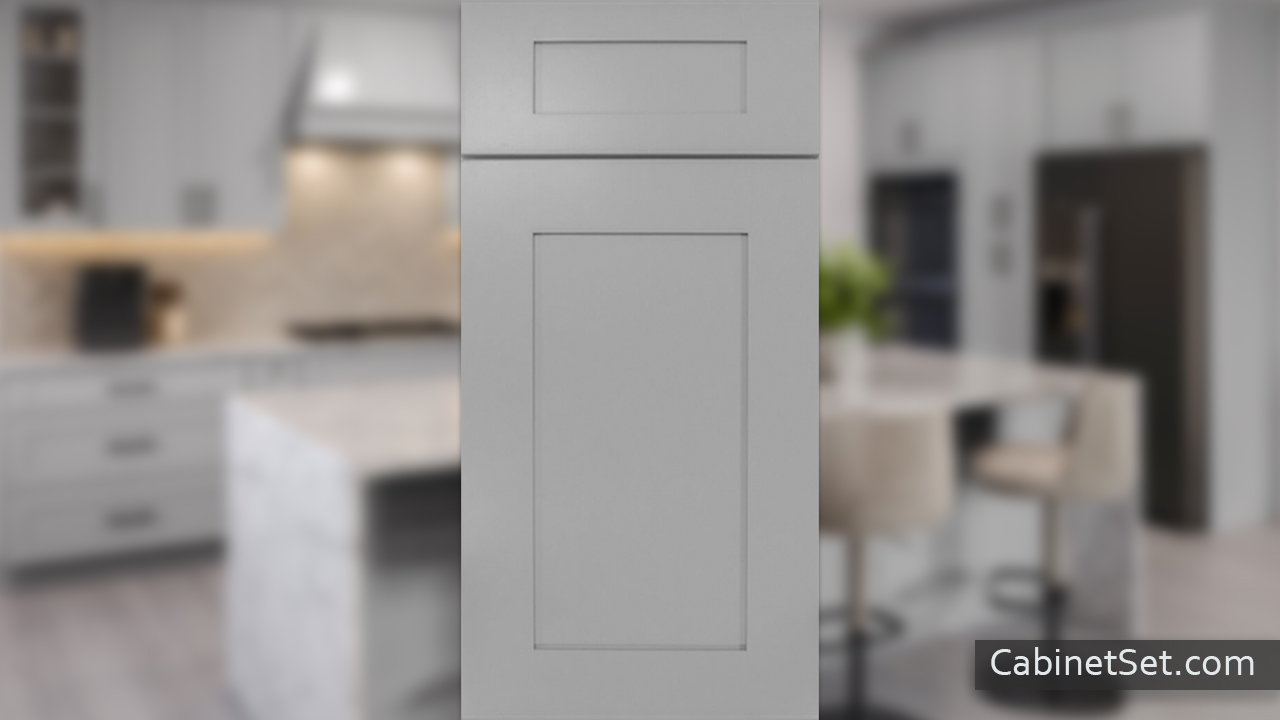

Bridgeport Grey Shaker cabinet door under different light.

Color, Profile & Overlay

Light grey, paint, shaker style, full overlay

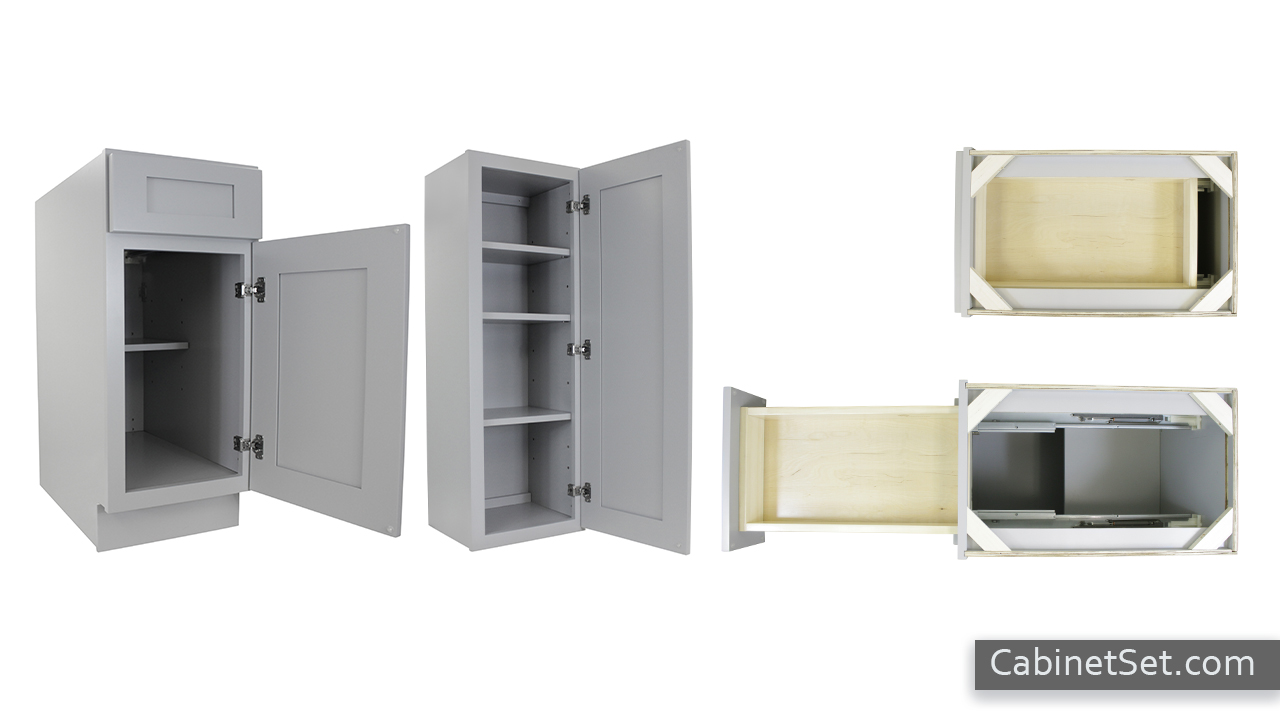

Construction

Real plywood cabinet boxes.

Hinges

Soft closing, 6 way adjustable

Drawers & Slides

Solid wood, dovetail, soft closing, undermount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Light Grey paint
Profile & overlay	Shaker style, full overlay
Wood species	Birch
Sides color	Matches cabinet front, no skins required.
Drawers	17 mm (close to 3/4" thick) dovetail solid wood frame, 1/2" thick plywood bottom, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color	Matches cabinet front
Particle board	No particle board is used in this cabinet line construction
Doors	HDF door frame, MDF center panel. Why do we use MDF?
Cabinet construction	1/2" A-Grade plywood with wood veneer on sides of wall and base cabinets. 1/2" A-Grade plywood with wood veneer on tops and bottoms of wall cabinets. 3/8" A-Grade plywood with wood veneer on bottoms of base cabinets. Back panels are 1/2"-3/4" thick picture frame recess style. Some cabinets have additional installation rail strips.
Face frame	1-1/2" wide x 3/4" thick solid wood
Shelves	3/4" thick A-Grade plywood with wood veneer, adjustable. Clear plastic shelf pins.
Toe kick	1/2", color matches cabinet front.
Base corner supports	Wood corner brackets, with wood I-beam.
Center stile	No center stile on all wall and base cabinets up to 36" wide
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Base Cabinets
Door height	22-3/4"
Upper drawer front height	6-1/4"
Upper drawer box height	3-7/8"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	12"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	n/a
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly

Please check the assembly information below and instructions that come with cabinets.

Assembly Videos

Assembly Instructions

Assembly may vary depending on an item and/or cabinet type. For more information, see assembly instructions that come with cabinets. Feel free to contact our support team with any questions.

B09 Cabinet Drawer
TCR Hardware

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

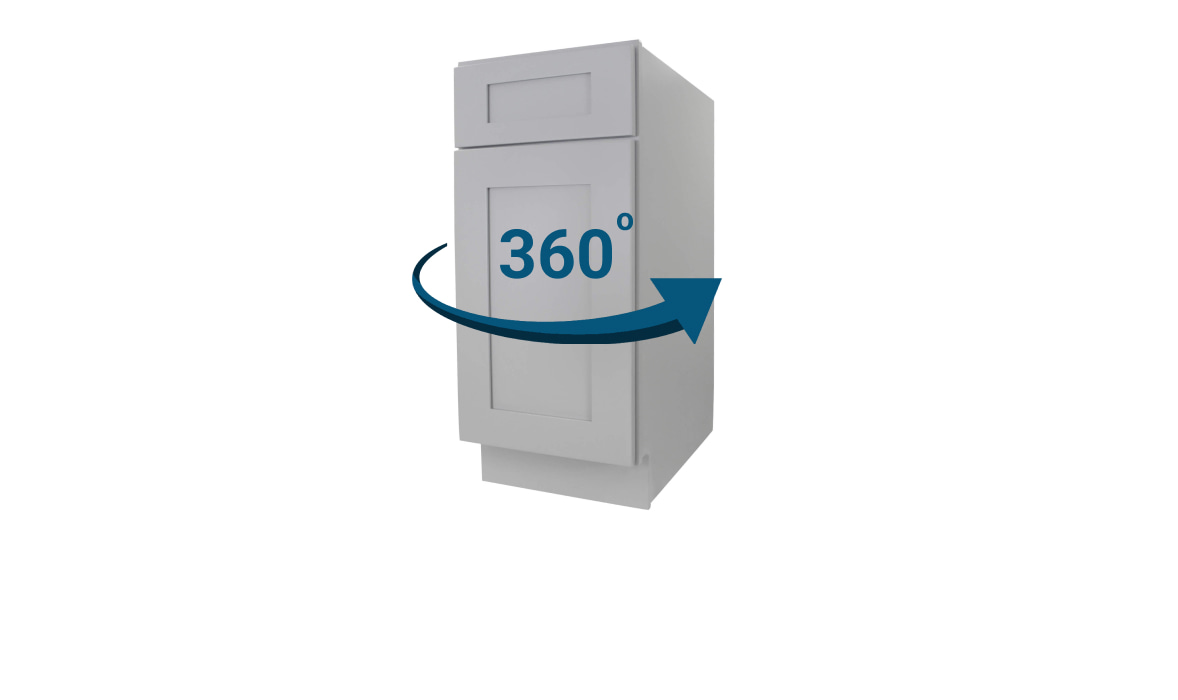

360° View

360 Degree View

PDF Catalog

Refundable Samples
Bridgeport Grey Shaker Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Bridgeport Grey Shaker Sample Door
Details
Approximate door size: 11-1/2" wide x 16-7/8" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W0930 Bridgeport Grey Shaker RTA
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $131.47 Regular Price $196.22
W1230 Bridgeport Grey Shaker RTA
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $145.72 Regular Price $217.49
W1530 Bridgeport Grey Shaker RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $158.86 Regular Price $237.11
W1830 Bridgeport Grey Shaker RTA
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $176.40 Regular Price $263.28
W2130 Bridgeport Grey Shaker RTA
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $213.61 Regular Price $318.82
Double Door Wall Cabinets - 30" High
W2430 Bridgeport Grey Shaker RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $227.87 Regular Price $340.11
W2730 Bridgeport Grey Shaker RTA
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $248.67 Regular Price $371.15
W3030 Bridgeport Grey Shaker RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $257.44 Regular Price $384.24
W3330 Bridgeport Grey Shaker RTA
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $277.17 Regular Price $413.69
W3630 Bridgeport Grey Shaker RTA
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $294.70 Regular Price $439.85
Single Door Wall Cabinets - 36" High
W0936 Bridgeport Grey Shaker RTA
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $166.50 Regular Price $248.50
W1236 Bridgeport Grey Shaker RTA
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $176.40 Regular Price $263.28
W1536 Bridgeport Grey Shaker RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $191.71 Regular Price $286.14
W1836 Bridgeport Grey Shaker RTA
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $213.61 Regular Price $318.82
W2136 Bridgeport Grey Shaker RTA
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $255.26 Regular Price $380.98
Double Door Wall Cabinets - 36" High
W2436 Bridgeport Grey Shaker RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $271.68 Regular Price $405.49
W2736 Bridgeport Grey Shaker RTA
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $307.82 Regular Price $459.44
W3036 Bridgeport Grey Shaker RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $333.02 Regular Price $497.04
W3336 Bridgeport Grey Shaker RTA
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $353.84 Regular Price $528.12
W3636 Bridgeport Grey Shaker RTA
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $370.27 Regular Price $552.64
Single Door Wall Cabinets - 42" High
W0942 Bridgeport Grey Shaker RTA
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $185.14 Regular Price $276.33
W1242 Bridgeport Grey Shaker RTA
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $195.00 Regular Price $291.05
W1542 Bridgeport Grey Shaker RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $212.53 Regular Price $317.21
W1842 Bridgeport Grey Shaker RTA
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $234.43 Regular Price $349.90
W2142 Bridgeport Grey Shaker RTA
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $282.63 Regular Price $421.83
Double Door Wall Cabinets - 42" High
W2442 Bridgeport Grey Shaker RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $304.56 Regular Price $454.56
W2742 Bridgeport Grey Shaker RTA
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $354.93 Regular Price $529.74
W3042 Bridgeport Grey Shaker RTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $393.28 Regular Price $586.98
W3342 Bridgeport Grey Shaker RTA
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $415.19 Regular Price $619.68
W3642 Bridgeport Grey Shaker RTA
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $441.49 Regular Price $658.94
Bridge Wall Cabinets
W1212 Bridgeport Grey Shaker RTA
Width: 12"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $63.81 Regular Price $95.24
W1512 Bridgeport Grey Shaker RTA
Width: 15"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $81.89 Regular Price $122.22
W1812 Bridgeport Grey Shaker RTA
Width: 18"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $102.09 Regular Price $152.38
W2112 Bridgeport Grey Shaker RTA
Width: 21"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $123.01 Regular Price $183.60
W2412 Bridgeport Grey Shaker RTA
Width: 24"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $141.44 Regular Price $211.11
W2712 Bridgeport Grey Shaker RTA
Width: 27"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $166.97 Regular Price $249.21
W3012 Bridgeport Grey Shaker RTA
Width: 30"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $147.89 Regular Price $220.73
W3312 Bridgeport Grey Shaker RTA
Width: 33"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $158.33 Regular Price $236.31
W3612 Bridgeport Grey Shaker RTA
Width: 36"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $166.50 Regular Price $248.50
W2415 Bridgeport Grey Shaker RTA
Width: 24"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $149.01 Regular Price $222.40
W3015 Bridgeport Grey Shaker RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $166.50 Regular Price $248.50
W3315 Bridgeport Grey Shaker RTA
Width: 33"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $179.68 Regular Price $268.18
W3615 Bridgeport Grey Shaker RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $182.95 Regular Price $273.06
W2418 Bridgeport Grey Shaker RTA
Width: 24"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $158.86 Regular Price $237.11
W3018 Bridgeport Grey Shaker RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $182.95 Regular Price $273.06
W3318 Bridgeport Grey Shaker RTA
Width: 33"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $195.00 Regular Price $291.05
W3618 Bridgeport Grey Shaker RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $208.16 Regular Price $310.68
W2424 Bridgeport Grey Shaker RTA
Width: 24"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $203.75 Regular Price $304.11

Show More Products

About Bridgeport Grey Shaker

The distinct feature of the Bridgeport Grey cabinets is full overlay door mounting. Doors completely cover the front of the cabinet to achieve a contemporary look for the kitchen. The drawer boxes are made from solid hardwood with dovetail joints. 1/2" strong plywood drawer bottom provides the support. The interior of the drawer box comes in a natural color finish.
