Overview

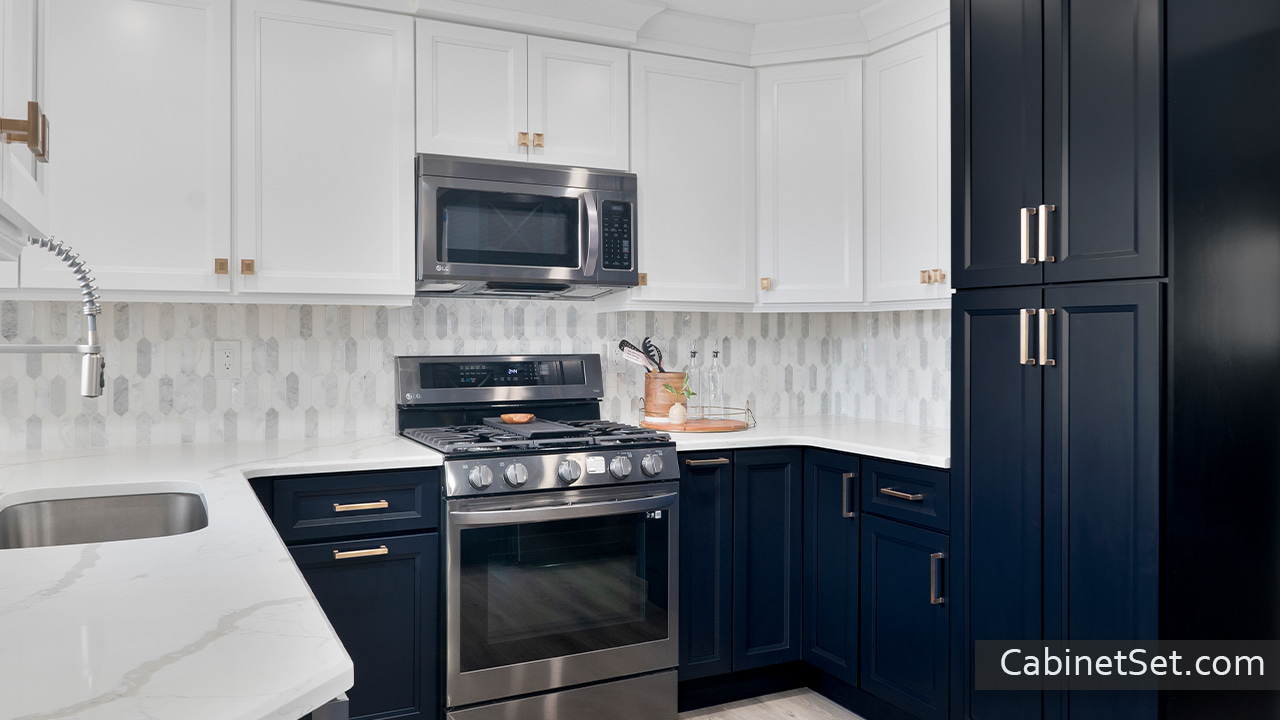

Lexington Blue kitchen angle view with a pantry cabinet.

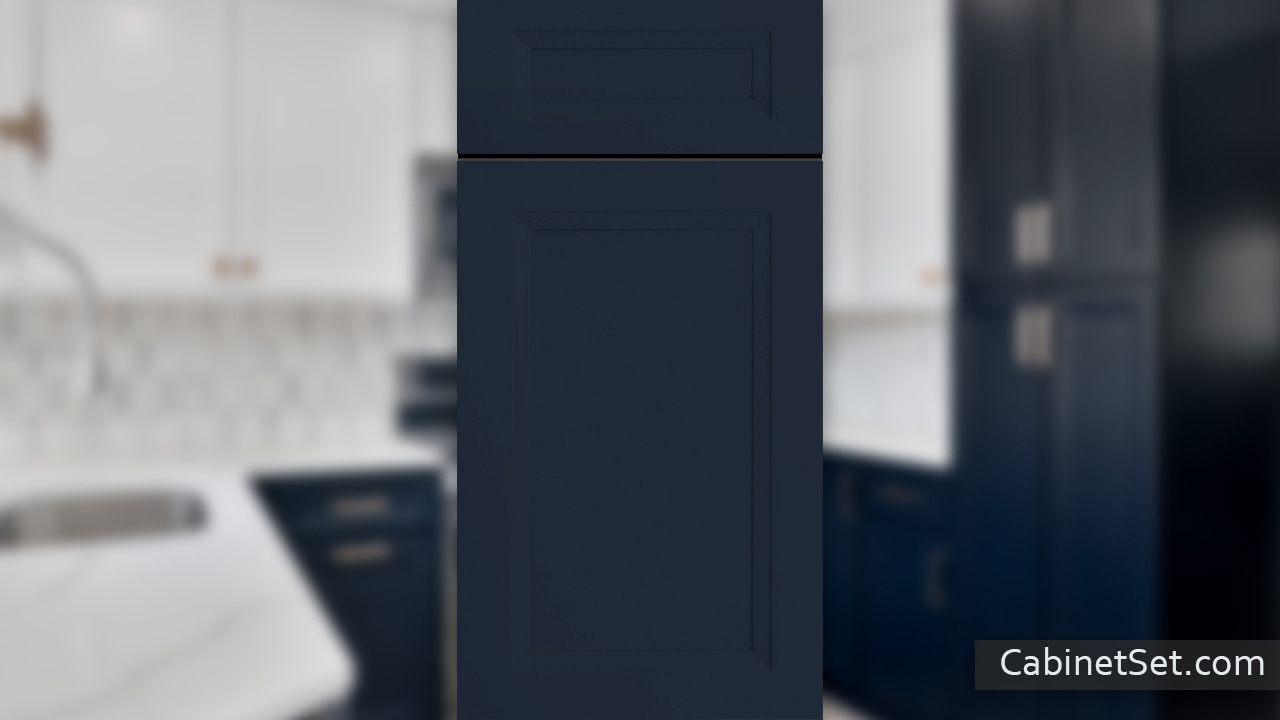

Lexington Blue cabinet door under different light.

Color & Finish

Blue, paint

Profile & Overlay

Recessed panel, full overlay

Slides & Hinges

Soft closing, under-mount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Blue color. Painted doors are hand sprayed and oven baked, layer upon layer, and hand sanded between coats. Painted doors are then top coated with a catalyzed conversion varnish.
Profile & overlay	Recessed panel, full overlay
Wood species	Birch
Sides color	Matches cabinet front, no skins required.
Drawers	3/4″ dovetailed solid wood drawer. Soft closing, under-mount, full extension, adjustable. Soft closing drawer examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color	Natural finish
Particle board	No particle board is used in this cabinet line construction
Doors	3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board). Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction	Side, top, bottom, and back panels are 1/2” veneered plywood with UV natural finish.
Face frame	1-1/2" wide x 3/4" thick solid wood
Shelves	3/4” veneered plywood adjustable shelf with UV natural finish and edge banding. Stainless steel shelf clips lock into pre-drilled holes in the bottom of the shelf for support.
Toe kick	1/2", color matches cabinet front
Base corner supports	Wood corner supports
Center stile	None on regular cabinets
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	To be determined during cabinet assembly.
CARB compliant	Yes About CARB compliance

Base Cabinets
Door height	22-1/16"
Upper drawer front height	6-5/8"
Upper drawer box height	4-1/16"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	18"
Toe kick height	4-1/2"
Toe kick depth	2-15/16" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	Varies, call for more details
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly

Assembly Videos

Assembly Instructions

Wall Cabinets

Tall Cabinets

Base Cabinets

Bathroom Vanities

Accessories

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Lexington Blue

Lexington White

PDF Catalog

Refundable Samples
Lexington Blue Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Lexington Blue Sample Door
Details
Approximate size: 11" wide x 14" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W0930 Lexington Blue RTA
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $160.08 Regular Price $238.92
W1230 Lexington Blue RTA
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $170.91 Regular Price $255.09
W1530 Lexington Blue RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $198.00 Regular Price $295.52
W1830 Lexington Blue RTA
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $221.46 Regular Price $330.54
W2130 Lexington Blue RTA
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $244.93 Regular Price $365.57
Double Door Wall Cabinets - 30" High
W2430 Lexington Blue RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $290.08 Regular Price $432.95
W2730 Lexington Blue RTA
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $323.78 Regular Price $483.25
W3030 Lexington Blue RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $346.64 Regular Price $517.38
W3330 Lexington Blue RTA
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $372.53 Regular Price $556.01
W3630 Lexington Blue RTA
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $395.39 Regular Price $590.13
Single Door Wall Cabinets - 36" High
W0936 Lexington Blue RTA
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $190.77 Regular Price $284.73
W1236 Lexington Blue RTA
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $208.83 Regular Price $311.69
W1536 Lexington Blue RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $237.72 Regular Price $354.80
W1836 Lexington Blue RTA
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $265.40 Regular Price $396.12
W2136 Lexington Blue RTA
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $292.49 Regular Price $436.55
Double Door Wall Cabinets - 36" High
W2436 Lexington Blue RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $344.85 Regular Price $514.70
W2736 Lexington Blue RTA
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $373.13 Regular Price $556.91
W3036 Lexington Blue RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $400.20 Regular Price $597.32
W3336 Lexington Blue RTA
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $427.29 Regular Price $637.75
W3636 Lexington Blue RTA
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $454.97 Regular Price $679.06
Single Door Wall Cabinets - 42" High
W0942 Lexington Blue RTA
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $218.46 Regular Price $326.06
W1242 Lexington Blue RTA
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $236.51 Regular Price $353.00
W1542 Lexington Blue RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $270.82 Regular Price $404.21
W1842 Lexington Blue RTA
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $309.33 Regular Price $461.69
W2142 Lexington Blue RTA
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $340.63 Regular Price $508.41
Double Door Wall Cabinets - 42" High
W2442 Lexington Blue RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $412.25 Regular Price $615.30
W2742 Lexington Blue RTA
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $436.91 Regular Price $652.11
W3042 Lexington Blue RTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $457.38 Regular Price $682.66
W3342 Lexington Blue RTA
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $504.32 Regular Price $752.72
W3642 Lexington Blue RTA
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $539.83 Regular Price $805.71
Bridge Wall Cabinets
W2412 Lexington Blue RTA
Width: 24"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $171.51 Regular Price $255.99
W3012 Lexington Blue RTA
Width: 30"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $194.39 Regular Price $290.13
W3612 Lexington Blue RTA
Width: 36"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $217.25 Regular Price $324.26
W2415 Lexington Blue RTA
Width: 24"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $176.93 Regular Price $264.08
W3015 Lexington Blue RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $206.42 Regular Price $308.09
W3315 Lexington Blue RTA
Width: 33"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $237.12 Regular Price $353.91
W3615 Lexington Blue RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $250.96 Regular Price $374.57
W2418 Lexington Blue RTA
Width: 24"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $197.39 Regular Price $294.61
W3018 Lexington Blue RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $225.68 Regular Price $336.83
W3318 Lexington Blue RTA
Width: 33"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $246.14 Regular Price $367.37
W3618 Lexington Blue RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $255.77 Regular Price $381.74
W2424 Lexington Blue RTA
Width: 24"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $250.96 Regular Price $374.57
W3024 Lexington Blue RTA
Width: 30"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $284.05 Regular Price $423.95
W3324 Lexington Blue RTA
Width: 33"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $308.73 Regular Price $460.79
W3624 Lexington Blue RTA
Width: 36"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $334.02 Regular Price $498.53
W301224 Lexington Blue RTA
Width: 30"
Height: 12"
Depth: 24"
Details
Wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $275.04 Regular Price $410.50
W331224 Lexington Blue RTA
Width: 33"
Height: 12"
Depth: 24"
Details
Wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $306.32 Regular Price $457.20
W361224 Lexington Blue RTA
Width: 36"
Height: 12"
Depth: 24"
Details
Wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $337.02 Regular Price $503.01

Show More Products

About Lexington Blue

Elevate your kitchen with Lexington Blue RTA cabinets. Crafted for style and simplicity, our cabinets bring a touch of elegance to your space. Discover quality and convenience in every detail. Update your kitchen today!
