Easton Canyon Oak - RTA Kitchen Cabinets

Overview

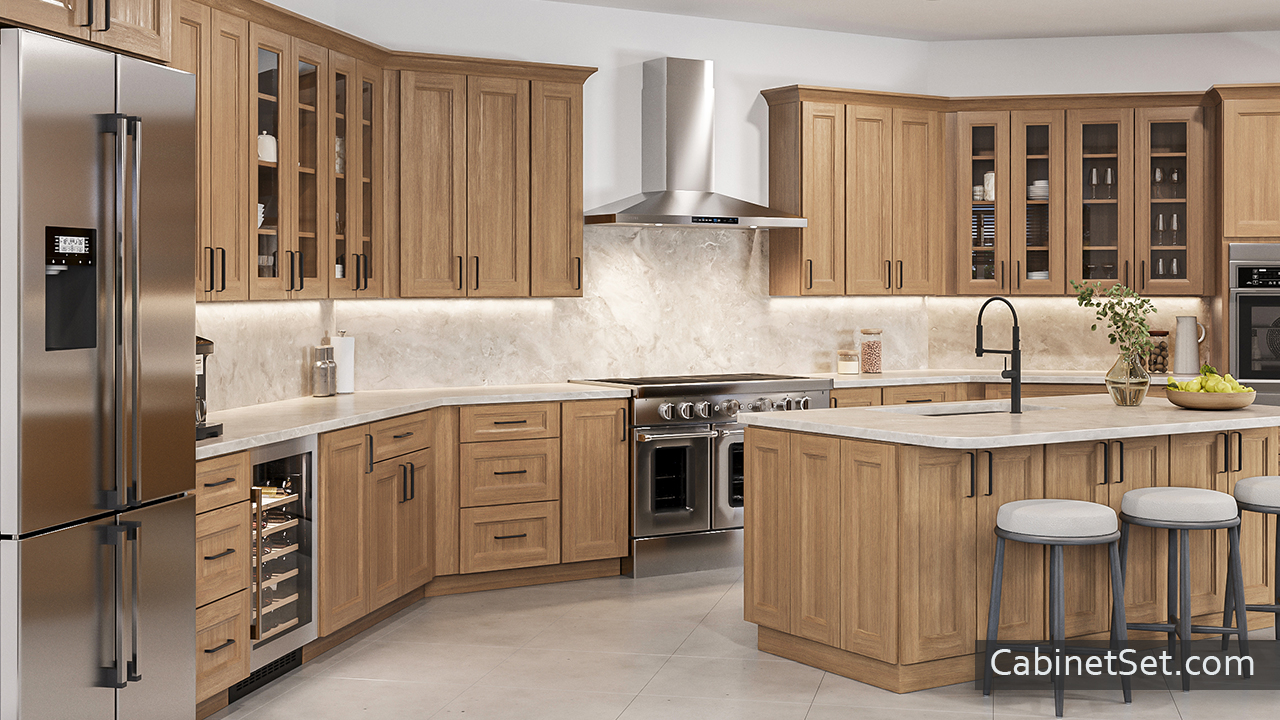

Easton Canyon Oak kitchen angle view with an island.

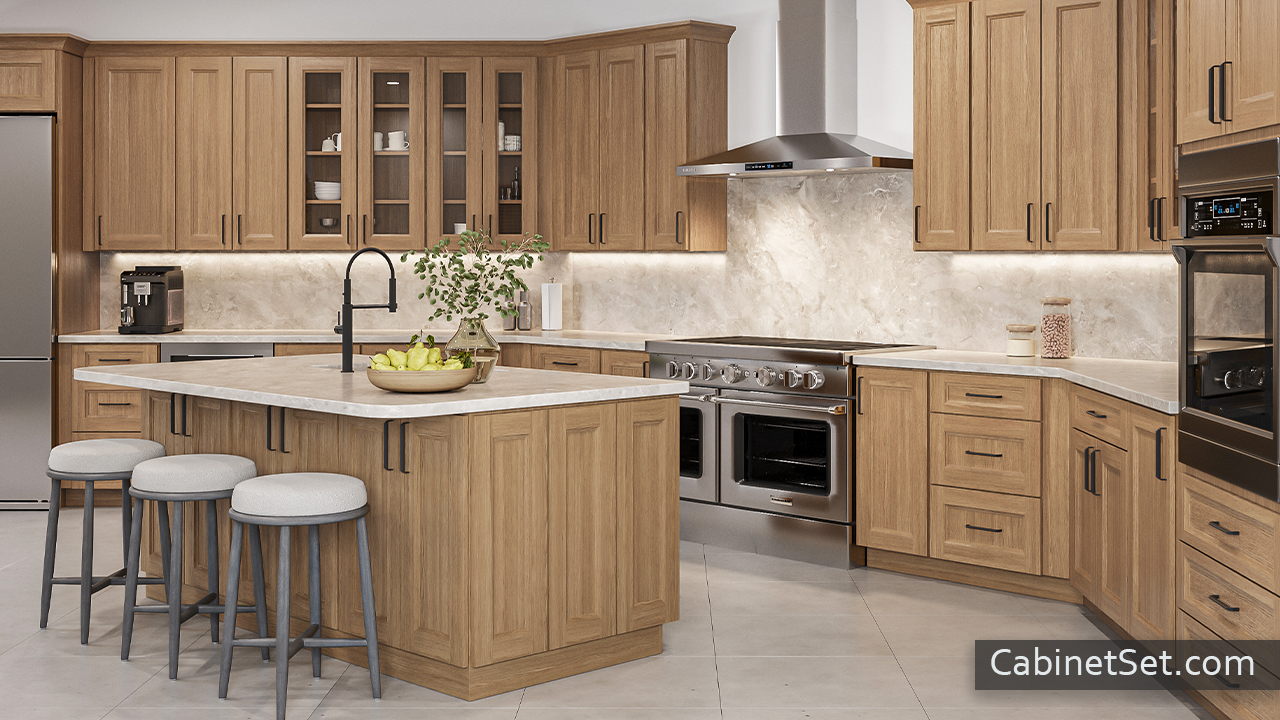

Easton Canyon Oak kitchen with an island.

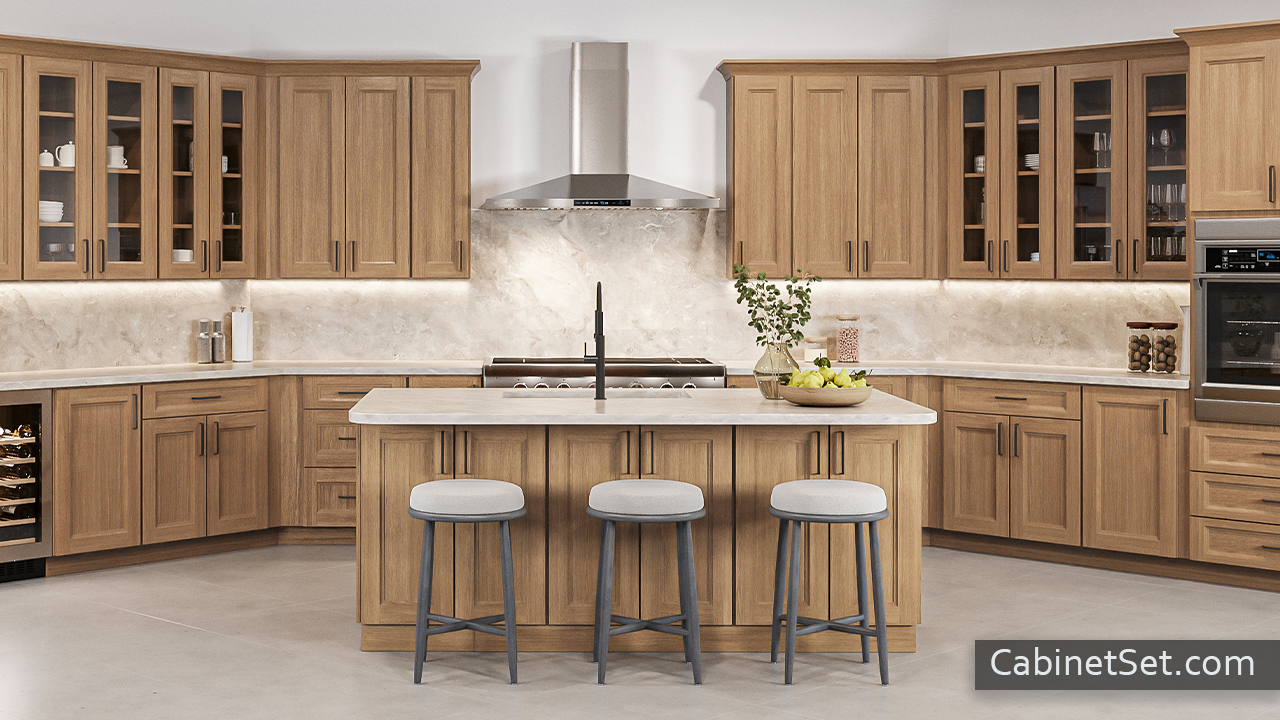

Easton Canyon Oak kitchen front view cabinets.

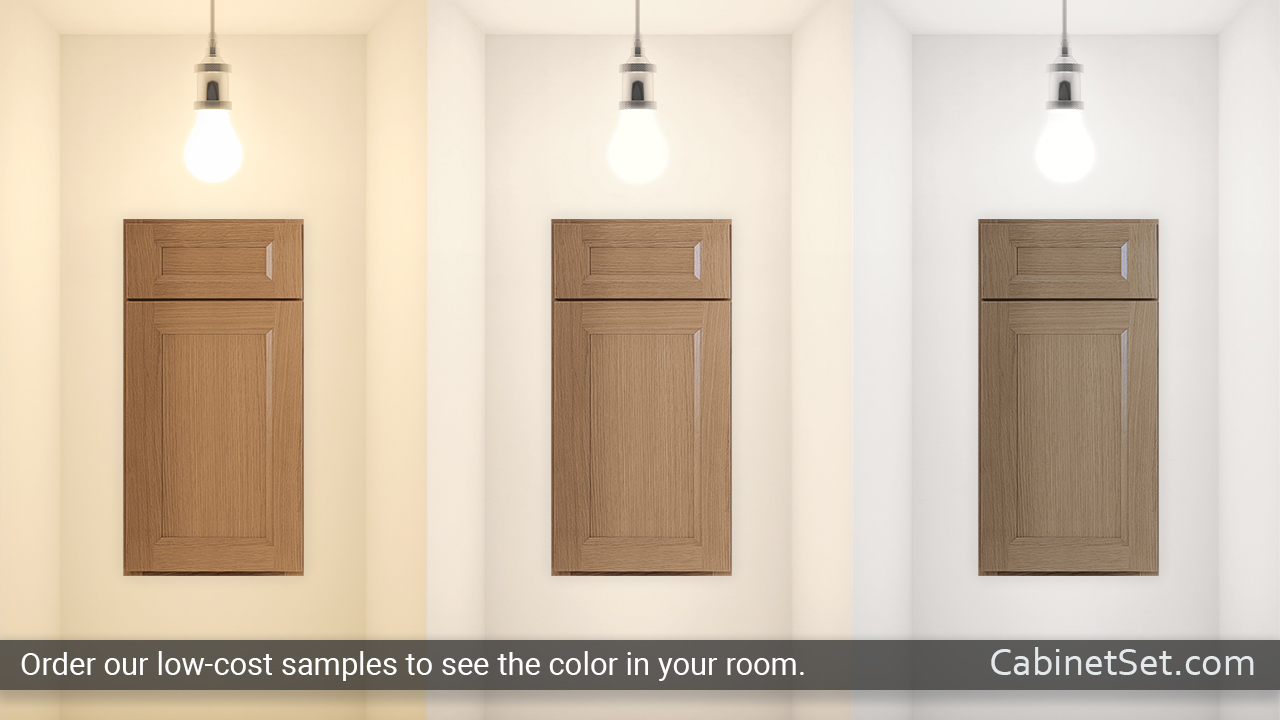

Easton Canyon Oak cabinet door under different light.

Color, Profile & Overlay

Stain, recessed panel, full overlay

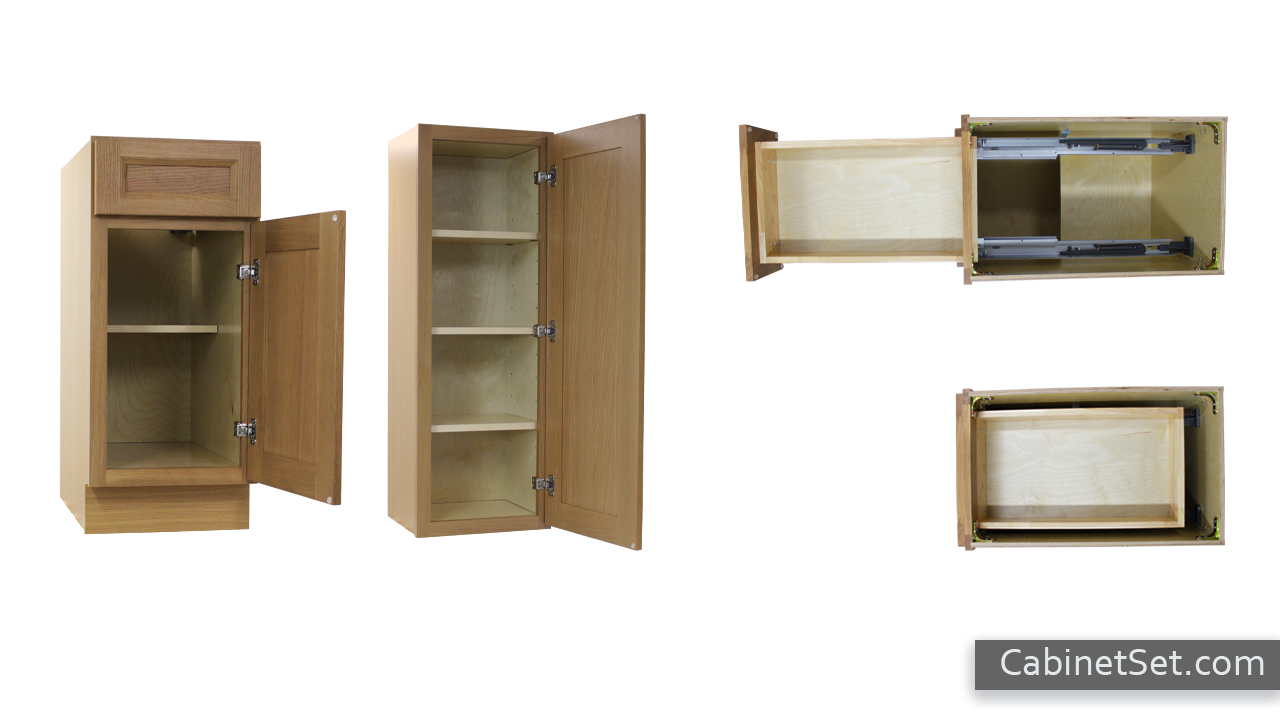

Construction

Real plywood cabinet boxes.

Hinges

Soft closing, 6 way adjustable

Drawers & Slides

Solid wood, dovetail, soft closing, undermount, full extension, adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2,500

Leaves the warehouse in 2-4 business days

Specifications

The cabinet specifications, including cabinet sizes, height, width, and other information are provided below. Please note that cabinet specifications vary depending on the cabinet line.

General specifications
Color & finish	Stain finish
Profile & overlay	Recessed panel, full overlay
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Sides color	Matches cabinet front, no skins required.
Drawers	5/8" thick dovetail solid wood front, back, and sides, natural color finish. Soft closing, undermount, full extension, 6 way adjustable drawer slides. Soft closing drawer slides examples: Video Picture
Interior color	UV coated natural birch interior. Glass door cabinets come with a matching (same as cabinet front) interior color.
Cabinet construction	1/2" plywood box with matching exterior side panels and full-height back
Doors and drawer fronts	5-piece french mitered white oak door and drawer front with wood veneered HDF center panel. Why do we use HDF?
Door frames	Approx. 2-3/4" wide
Face frame	1-1/2" wide x 3/4" thick solid wood
Shelves	3/4" thick plywood with front edge banding, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Metal corner braces
Center stile	The VSD42 and VSD48 have a center stile.
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall, base, vanity, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Wall Cabinets
Shelf depth	10-1/4"
Top and bottom panels finish	Matches cabinet front

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-1/4"
Upper drawer box height	4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	11-3/4"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	11-1/8"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Full Overlay Installation
Full overlay cabinets have minimal clearance between doors/drawers and cabinet edges. When installing a cabinet next to a wall or another surface (e.g., a refrigerator panel), we recommend allowing at least 1/4" of additional clearance. Some installations may require more clearance, depending on the hardware and project-specific requirements. Use scribe molding or fillers to bridge any resulting gaps. Most hinges and drawer slides are adjustable; however, hinge and drawer slide adjustments alone may not be sufficient in all cases. See an example In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). However, hinge and drawer slide adjustments are typically still required for all cabinets to ensure proper door/drawer clearance and alignment.

About Specifications
Cabinet specification dimensions are typically converted from metric to inches and rounded, which may result in measurement variations. Room lighting and screen settings can also affect the appearance of cabinet colors. For the most accurate color representation, please order a sample. In rare cases, manufacturers may substitute certain items with similar products of comparable, but not identical, construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. If you have any questions about cabinet styles or specifications, feel free to contact us.

Assembly

Assembly Instructions

Wall Cabinets

Bathroom Vanities

Vanity Combo Base Cabinet

Tall Cabinets

Base Cabinets

Accessories

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

PDF Catalog

Refundable Samples
RTA

Easton Canyon Oak Sample Square
Details
Sample door square.
Approximate size: 7 ½” wide x 7 ½” high.

Special Price $2.99 Regular Price $9.97
RTA

Easton Canyon Oak Sample Door
Details
Approximate size: 11" wide x 15" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $53.30
Single Door Wall Cabinets - 30" High
W0930 Easton Canyon Oak RTA
Width: 9"
Height: 30"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $157.25 Regular Price $262.08
W1230 Easton Canyon Oak RTA
Width: 12"
Height: 30"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $167.18 Regular Price $278.63
W1530 Easton Canyon Oak RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $193.13 Regular Price $321.88
W1830 Easton Canyon Oak RTA
Width: 18"
Height: 30"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $213.36 Regular Price $355.60
W2130 Easton Canyon Oak RTA
Width: 21"
Height: 30"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $238.93 Regular Price $398.22
Double Door Wall Cabinets - 30" High
W2430 Easton Canyon Oak RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $290.84 Regular Price $484.73
W2730 Easton Canyon Oak RTA
Width: 27"
Height: 30"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $316.41 Regular Price $527.35
W3030 Easton Canyon Oak RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $348.85 Regular Price $581.42
W3330 Easton Canyon Oak RTA
Width: 33"
Height: 30"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $348.85 Regular Price $581.42
W3630 Easton Canyon Oak RTA
Width: 36"
Height: 30"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $400.38 Regular Price $667.30
Single Door Wall Cabinets - 36" High
W0936 Easton Canyon Oak RTA
Width: 9"
Height: 36"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $167.56 Regular Price $279.27
W1236 Easton Canyon Oak RTA
Width: 12"
Height: 36"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $203.44 Regular Price $339.07
W1536 Easton Canyon Oak RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $217.94 Regular Price $363.23
W1836 Easton Canyon Oak RTA
Width: 18"
Height: 36"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $245.04 Regular Price $408.40
W2136 Easton Canyon Oak RTA
Width: 21"
Height: 36"
Depth: 12"
Details
Wall cabinet with 1 door and 2 shelves.

Special Price $279.39 Regular Price $465.65
Double Door Wall Cabinets - 36" High
W2436 Easton Canyon Oak RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $317.56 Regular Price $529.27
W2736 Easton Canyon Oak RTA
Width: 27"
Height: 36"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $342.75 Regular Price $571.25
W3036 Easton Canyon Oak RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $394.27 Regular Price $657.12
W3336 Easton Canyon Oak RTA
Width: 33"
Height: 36"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $423.66 Regular Price $706.10
W3636 Easton Canyon Oak RTA
Width: 36"
Height: 36"
Depth: 12"
Details
Wall cabinet with 2 doors and 2 shelves.

Special Price $452.67 Regular Price $754.45
Single Door Wall Cabinets - 42" High
W0942 Easton Canyon Oak RTA
Width: 9"
Height: 42"
Depth: 12"
Details
Wall cabinet with 1 door and 3 shelves.

Special Price $188.17 Regular Price $313.62
W1242 Easton Canyon Oak RTA
Width: 12"
Height: 42"
Depth: 12"
Details
Wall cabinet with 1 door and 3 shelves.

Special Price $222.90 Regular Price $371.50
W1542 Easton Canyon Oak RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $257.63 Regular Price $429.38
W1842 Easton Canyon Oak RTA
Width: 18"
Height: 42"
Depth: 12"
Details
Wall cabinet with 1 door and 3 shelves.

Special Price $292.37 Regular Price $487.28
W2142 Easton Canyon Oak RTA
Width: 21"
Height: 42"
Depth: 12"
Details
Wall cabinet with 1 door and 3 shelves.

Special Price $326.72 Regular Price $544.53
Double Door Wall Cabinets - 42" High
W2442 Easton Canyon Oak RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $370.99 Regular Price $618.32
W2742 Easton Canyon Oak RTA
Width: 27"
Height: 42"
Depth: 12"
Details
Wall cabinet with 2 doors and 3 shelves.

Special Price $415.27 Regular Price $692.12
W3042 Easton Canyon Oak RTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Wall Accessory Cabinets tab for more details.

Special Price $459.92 Regular Price $766.53
W3342 Easton Canyon Oak RTA
Width: 33"
Height: 42"
Depth: 12"
Details
Wall cabinet with 2 doors and 3 shelves.

Special Price $494.27 Regular Price $823.78
W3642 Easton Canyon Oak RTA
Width: 36"
Height: 42"
Depth: 12"
Details
Wall cabinet with 2 doors and 3 shelves.

Special Price $529.01 Regular Price $881.68
Bridge Wall Cabinets
W3012 Easton Canyon Oak RTA
Width: 30"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $191.98 Regular Price $319.97
W3612 Easton Canyon Oak RTA
Width: 36"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $218.70 Regular Price $364.50
W3015 Easton Canyon Oak RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $211.83 Regular Price $353.05
W3615 Easton Canyon Oak RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $237.02 Regular Price $395.03
W3018 Easton Canyon Oak RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $237.79 Regular Price $396.32
W3618 Easton Canyon Oak RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $253.44 Regular Price $422.40
W3024 Easton Canyon Oak RTA
Width: 30"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $283.97 Regular Price $473.28
W3624 Easton Canyon Oak RTA
Width: 36"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $318.70 Regular Price $531.17
RW3012 Easton Canyon Oak RTA
Width: 30"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $256.49 Regular Price $427.48
RW3312 Easton Canyon Oak RTA
Width: 33"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $277.10 Regular Price $461.83
RW3612 Easton Canyon Oak RTA
Width: 36"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $275.95 Regular Price $459.92
RW3015 Easton Canyon Oak RTA
Width: 30"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $283.21 Regular Price $472.02
RW3315 Easton Canyon Oak RTA
Width: 33"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $306.11 Regular Price $510.18
RW3615 Easton Canyon Oak RTA
Width: 36"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $296.56 Regular Price $494.27
RW3018 Easton Canyon Oak RTA
Width: 30"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $318.32 Regular Price $530.53
RW3318 Easton Canyon Oak RTA
Width: 33"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $343.51 Regular Price $572.52
RW3618 Easton Canyon Oak RTA
Width: 36"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors.

Special Price $316.79 Regular Price $527.98
RW3024 Easton Canyon Oak RTA
Width: 30"
Height: 24"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors and 1 shelf.

Special Price $379.77 Regular Price $632.95

Show More Products

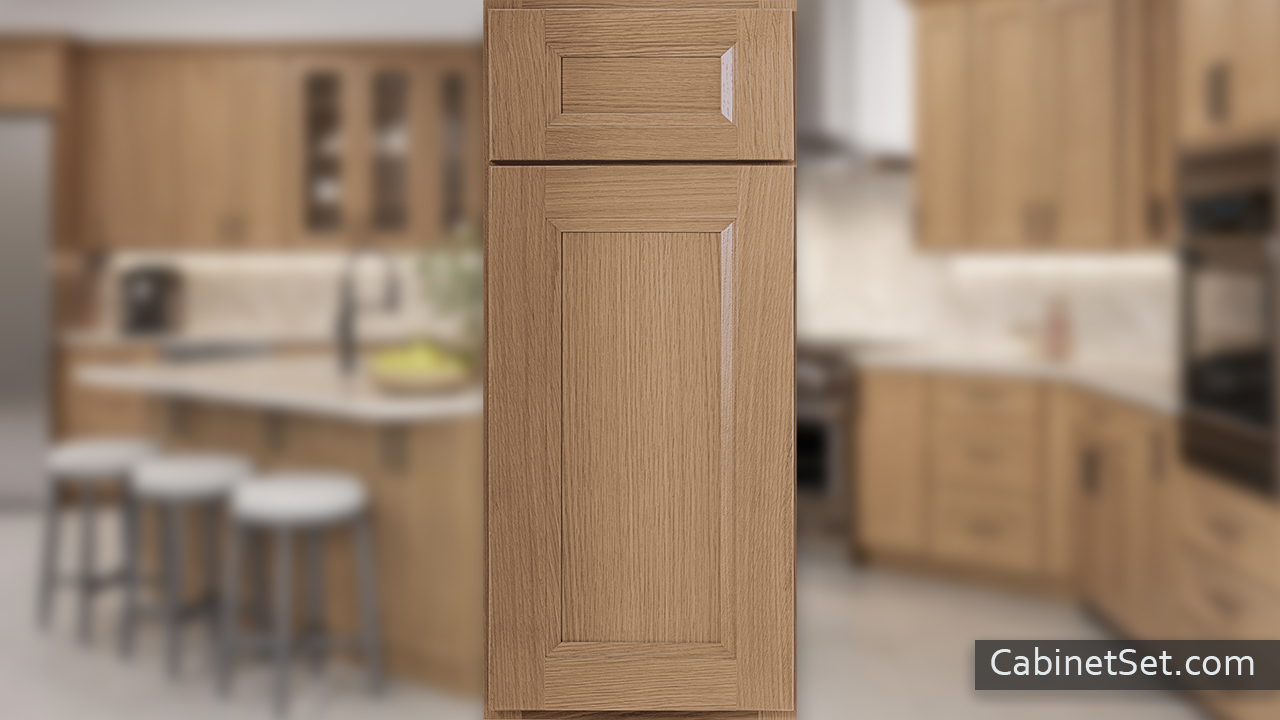

About Easton Canyon Oak

Easton Canyon Oak RTA cabinets showcase a rich, natural wood-grain finish designed for modern living. Every piece is crafted with quality materials and careful construction, so your kitchen keeps its warm, inviting character for years to come. Whether you're planning a complete kitchen overhaul or a quick facelift, this collection proves you don't have to spend a fortune to get a kitchen that looks and feels custom-built.
