Camden Espresso Shaker - RTA Cabinets

Overview

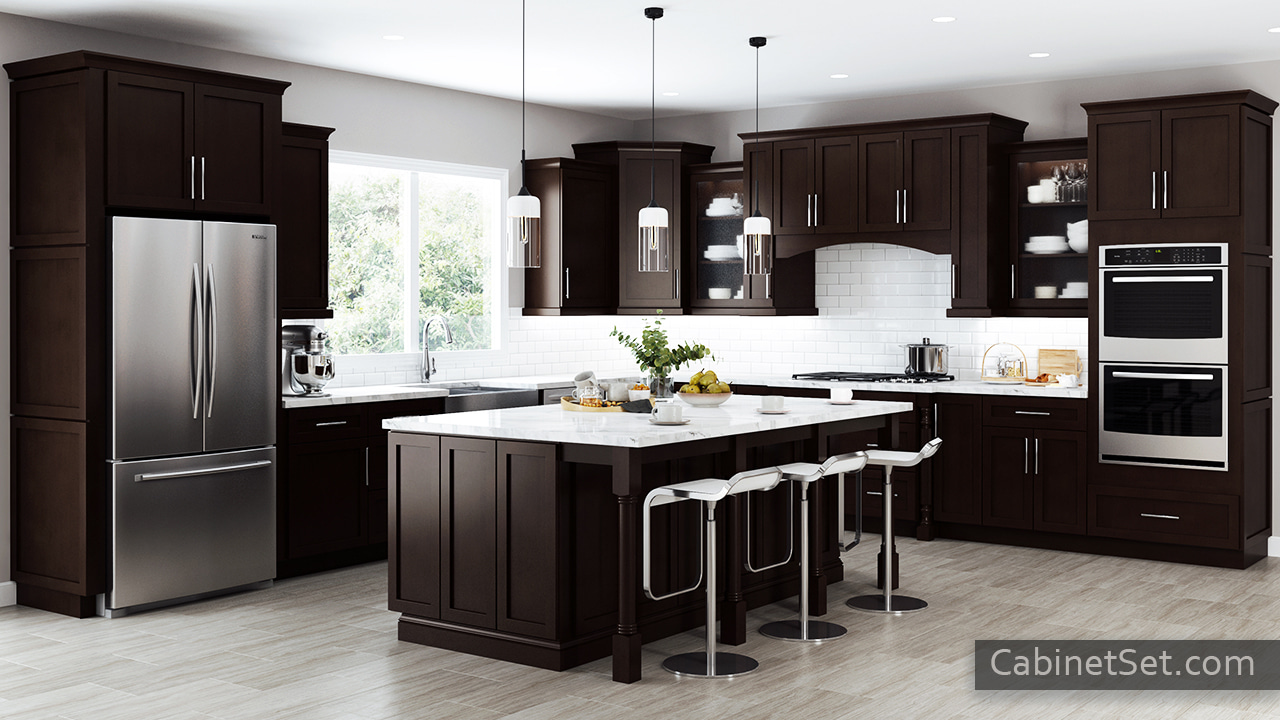

Camden Espresso Shaker kitchen full view with an island.

Camden Espresso Shaker wall cabinets with glass doors angle view.

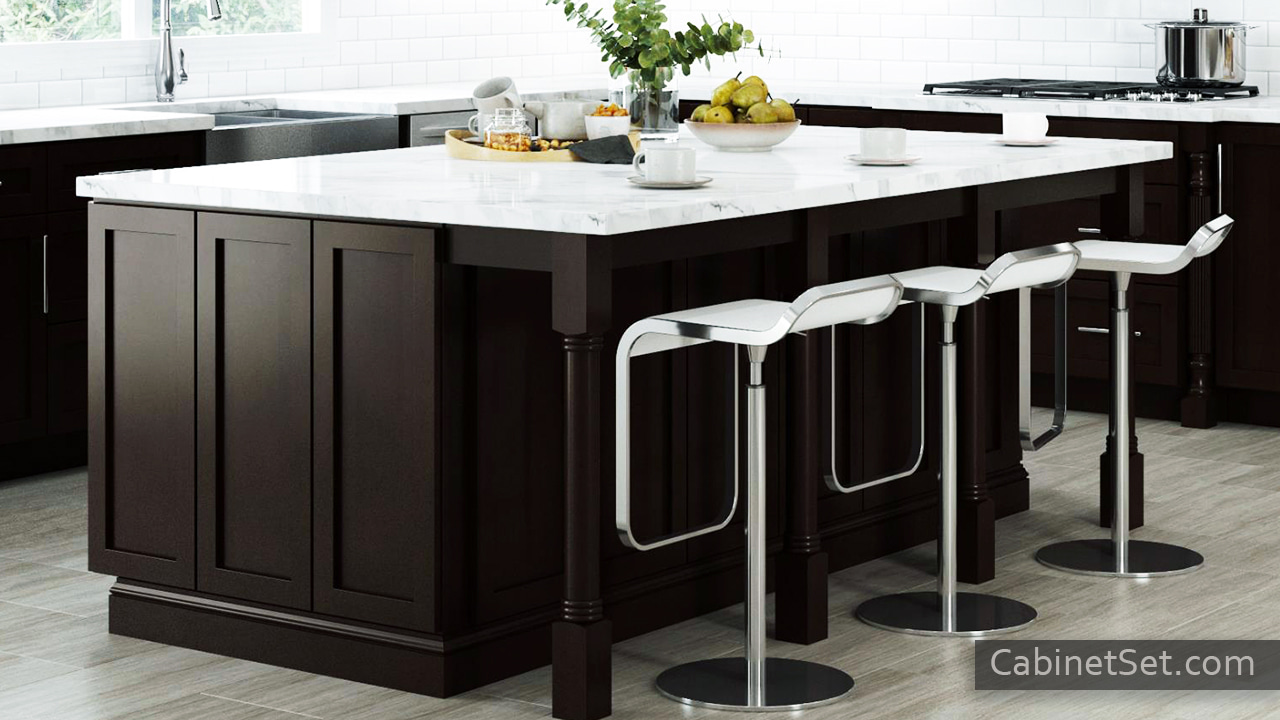

Camden Espresso Shaker island close-up view.

Camden Espresso Shaker wall cabinets with glass doors front view.

Camden Espresso Shaker cabinets with double oven cabinets.

Color & Finish

Espresso, stain finish

Profile & Overlay

Shaker style, full overlay

Slides & Hinges

Soft closing, under mount, full extension, 6 way adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Espresso stain
Profile & overlay	Shaker style, full overlay
Wood species	Maple or birch
Sides color	Matches cabinet front, no skins required.

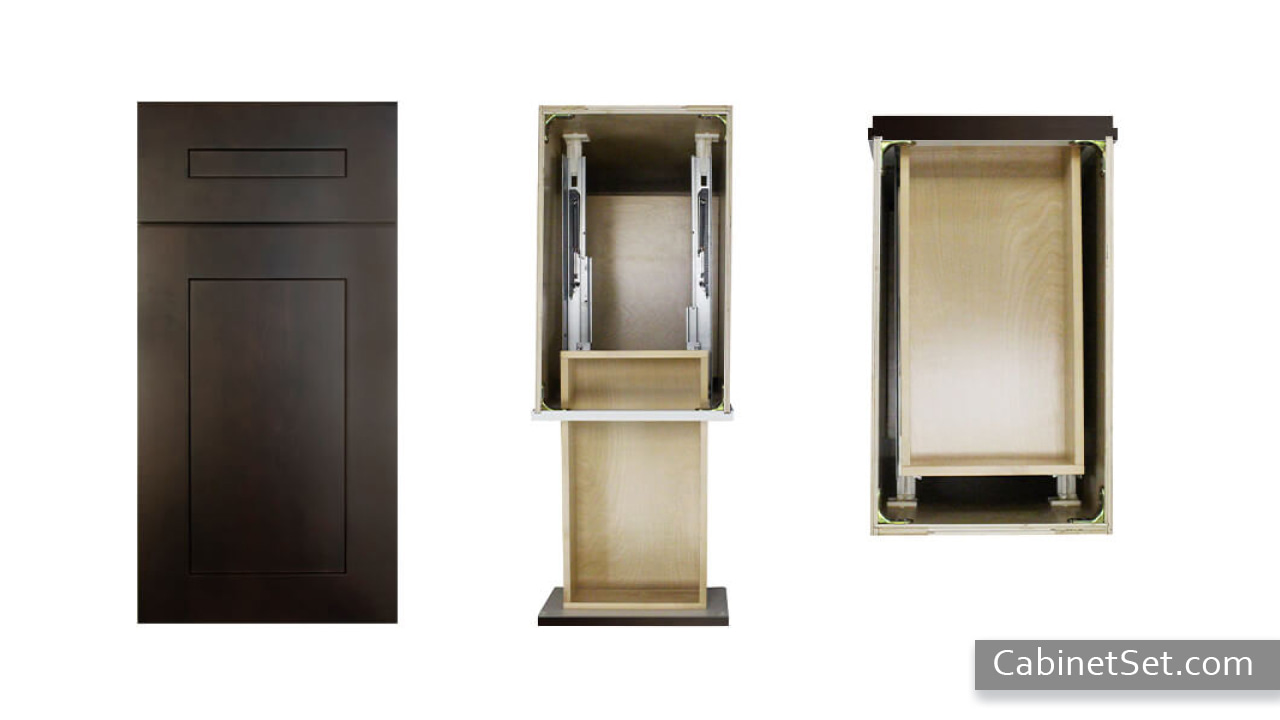

Drawers	11/16" thick dovetail solid wood frame, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: Video Picture
Door hinges	Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color	Clear coated natural maple finish.
Particle board	No particle board is used in this cabinet line construction
Doors	3/4" thick solid wood door and drawer front frame with solid wood center panel. Doors and drawer fronts are 5-piece construction.
Cabinet construction	1/2" thick grade plywood box construction. Back panel is 5/8"-3/4" thick plywood picture frame recessed style.
Face frame	1-1/2" wide x 3/4" thick solid wood
Shelves	5/8"-3/4" thick plywood, adjustable. Metal shelf pins.
Toe kick	1/2", color matches cabinet front
Base corner supports	Metal brackets
Center stile	Wall cabinets: Wall Top Hinge and Butt door cabinets do not have a center stile. Base and vanity cabinets: Butt door cabinets do not have a center stile.
Door and drawer stoppers	Clear adhesive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance

Base Cabinets
Door height	22-3/4"
Upper drawer front height	6-1/2"
Upper drawer box height	4"
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	18"
Toe kick height	4-1/2"
Toe kick depth	2-1/2" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	Varies, call for more details
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	Same as the regular base cabinets, see above
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Matches cabinet front

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

Assembly

Assembly Videos

Assembly Instructions

These cabinets can be assembled in two ways:

Installation Information

General Installation Information

If you believe your order is missing items, extra parts or not sure about something, feel free to contact one of our support agents.

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

Camden Dove Shaker

Camden Blue Shaker

Camden Espresso Shaker

PDF Catalog

Refundable Samples
Camden Espresso Shaker Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Camden Espresso Shaker Sample Door
Details
Approximate size: 11" wide x 15" high.
Available as ready to assemble.

Special Price $15.99 Regular Price $39.98
Single Door Wall Cabinets - 30" High
W0930 Camden Espresso Shaker RTA
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $181.28 Regular Price $270.57
W1230 Camden Espresso Shaker RTA
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $224.23 Regular Price $334.67
W1530 Camden Espresso Shaker RTA
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $262.39 Regular Price $391.62
W1830 Camden Espresso Shaker RTA
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $300.57 Regular Price $448.61
W2130 Camden Espresso Shaker RTA
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $333.93 Regular Price $498.41
Double Door Wall Cabinets - 30" High
W2430 Camden Espresso Shaker RTA
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $360.17 Regular Price $537.57
W2730 Camden Espresso Shaker RTA
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $405.50 Regular Price $605.23
W3030 Camden Espresso Shaker RTA
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $436.48 Regular Price $651.47
W3330 Camden Espresso Shaker RTA
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $457.97 Regular Price $683.54
W3630 Camden Espresso Shaker RTA
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $479.49 Regular Price $715.66
Single Door Wall Cabinets - 36" High
W0936 Camden Espresso Shaker RTA
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $211.44 Regular Price $315.58
W1236 Camden Espresso Shaker RTA
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $255.85 Regular Price $381.86
W1536 Camden Espresso Shaker RTA
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $309.43 Regular Price $461.83
W1836 Camden Espresso Shaker RTA
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $329.35 Regular Price $491.57
W2136 Camden Espresso Shaker RTA
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $390.40 Regular Price $582.68
Double Door Wall Cabinets - 36" High
W2436 Camden Espresso Shaker RTA
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $406.89 Regular Price $607.30
W2736 Camden Espresso Shaker RTA
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $459.64 Regular Price $686.03
W3036 Camden Espresso Shaker RTA
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $512.52 Regular Price $764.96
W3336 Camden Espresso Shaker RTA
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $539.94 Regular Price $805.88
W3636 Camden Espresso Shaker RTA
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $565.66 Regular Price $844.27
Single Door Wall Cabinets - 42" High
W0942 Camden Espresso Shaker RTA
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $221.40 Regular Price $330.45
W1242 Camden Espresso Shaker RTA
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $270.71 Regular Price $404.05
W1542 Camden Espresso Shaker RTA
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $327.38 Regular Price $488.63
W1842 Camden Espresso Shaker RTA
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $370.38 Regular Price $552.81
W2142 Camden Espresso Shaker RTA
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $413.01 Regular Price $616.43
Double Door Wall Cabinets - 42" High
W2442 Camden Espresso Shaker RTA
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $421.45 Regular Price $629.03
W2742 Camden Espresso Shaker RTA
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $519.30 Regular Price $775.07
W3042 Camden Espresso Shaker RTA
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $542.91 Regular Price $810.31
W3342 Camden Espresso Shaker RTA
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $588.56 Regular Price $878.45
W3642 Camden Espresso Shaker RTA
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet is also available with glass doors, see the Accessories tab for more details.

Special Price $602.86 Regular Price $899.79
Bridge Wall Cabinets
W2412 Camden Espresso Shaker RTA
Width: 24"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $233.60 Regular Price $348.65
W3012 Camden Espresso Shaker RTA
Width: 30"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $240.93 Regular Price $359.60
W3312 Camden Espresso Shaker RTA
Width: 33"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $287.36 Regular Price $428.89
W3612 Camden Espresso Shaker RTA
Width: 36"
Height: 12"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $310.07 Regular Price $462.79
W3015 Camden Espresso Shaker RTA
Width: 30"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $262.39 Regular Price $391.62
W3315 Camden Espresso Shaker RTA
Width: 33"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $294.24 Regular Price $439.17
W3615 Camden Espresso Shaker RTA
Width: 36"
Height: 15"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $316.31 Regular Price $472.10
W3018 Camden Espresso Shaker RTA
Width: 30"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $290.22 Regular Price $433.17
W3318 Camden Espresso Shaker RTA
Width: 33"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $328.88 Regular Price $490.87
W3618 Camden Espresso Shaker RTA
Width: 36"
Height: 18"
Depth: 12"
Details
Wall cabinet with 2 doors.

Special Price $333.94 Regular Price $498.42
W3024 Camden Espresso Shaker RTA
Width: 30"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $357.71 Regular Price $533.89
W3324 Camden Espresso Shaker RTA
Width: 33"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $380.81 Regular Price $568.38
W3624 Camden Espresso Shaker RTA
Width: 36"
Height: 24"
Depth: 12"
Details
Wall cabinet with 2 doors and 1 shelf.

Special Price $421.75 Regular Price $629.48
RW3012 Camden Espresso Shaker RTA
Width: 30"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $256.76 Regular Price $383.23
RW3612 Camden Espresso Shaker RTA
Width: 36"
Height: 12"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $458.71 Regular Price $684.64
RW3615 Camden Espresso Shaker RTA
Width: 36"
Height: 15"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $445.36 Regular Price $664.71
RW3018 Camden Espresso Shaker RTA
Width: 30"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $304.27 Regular Price $454.14
RW3618 Camden Espresso Shaker RTA
Width: 36"
Height: 18"
Depth: 24"
Details
Refrigerator wall cabinet with 2 doors. This cabinet can be modified into a farmhouse sink base cabinet.

Special Price $467.38 Regular Price $697.58

Show More Products

About Camden Espresso Shaker

Camden Espresso line features a clean and minimalistic shaker style profile of the door and drawers. These cabinets can be a great choice for people with simple, modest, and neat taste in furniture. Camden Espresso highlights a painted frame made with 3/4" solid hardwood. Hardwood is durable, resilient, and easy to repair.
