Solid wood, dovetail, soft closing, undermount, full extension, adjustable
Best Price Guarantee
This product is backed by The 90 Day Best Price Guarantee We are confident you will get the best deal with us. Therefore, this product is backed by The Best Price Guarantee. See full program details
Free Shipping over $2500
Leaves the warehouse in 5-7 business days Order delivery depends on your location. Usually orders arrive in 3-6 business days after leaving the warehouse. Read more
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
General specifications
Color & finish
Blue paint
Profile & overlay
Shaker style, full overlay
Sides color
Matches cabinet front, no skins required.
Drawers
11/16" thick dovetail solid wood frame, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: VideoPicture
Door hinges
Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color
Clear coated natural maple finish.
Doors
3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction
1/2" thick grade plywood box construction. Back panel is 5/8"-3/4" thick plywood picture frame recessed style.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
5/8"-3/4" thick plywood, adjustable. Metal shelf pins.
Toe kick
1/2", color matches cabinet front
Base corner supports
Metal brackets
Center stile
Wall cabinets: Wall Top Hinge and Butt door cabinets do not have a center stile. Base and vanity cabinets: Butt door cabinets do not have a center stile.
Door and drawer stoppers
Clear adhesive bumpers
Hinge side
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors/drawers have minimal clearance between doors/drawers and cabinet edges. When installing a cabinet next to a wall or another surface (e.g., a refrigerator panel), we recommend allowing at least 1/4" of additional clearance. Some installations may require more clearance, depending on the hardware and project-specific requirements. Use scribe molding or fillers to bridge any resulting gaps. Most hinges and drawer slides are adjustable; however, hinge and drawer slide adjustments alone may not be sufficient in all cases. See an example
In general, additional spacing between standard cabinets is not necessary, except in specific situations - for example, when cabinets have different depths (e.g., a 12" deep wall cabinet next to a 24" deep pantry). However, hinge and drawer slide adjustments are typically still required for all cabinets to ensure proper door/drawer clearance and alignment.
About Specifications
Cabinet specification dimensions are typically converted from metric to inches and rounded, which may result in measurement variations. Room lighting and screen settings can also affect the appearance of cabinet colors. For the most accurate color representation, please order a sample. In rare cases, manufacturers may substitute certain items with similar products of comparable, but not identical, construction. The listed cabinet depth refers to the exterior measurement and does not include doors, drawers, stoppers, or clearance. If you have any questions about cabinet styles or specifications, feel free to contact us.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

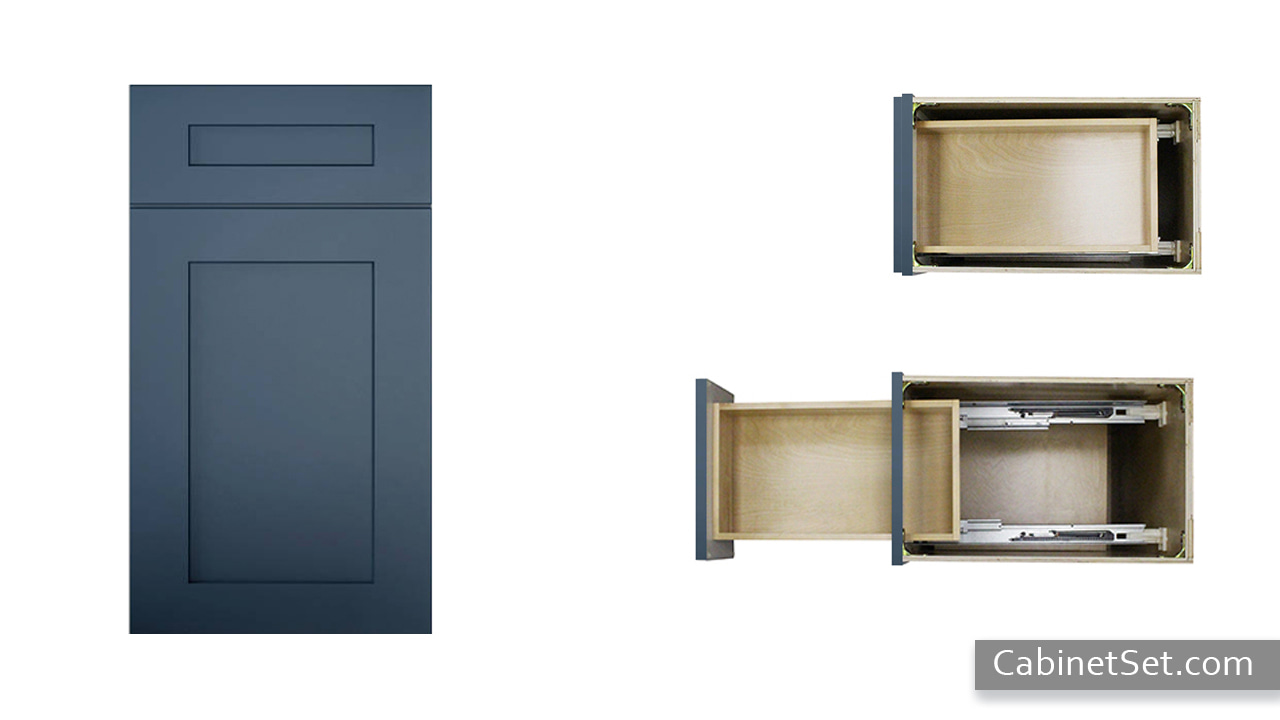

Camden Blue Shaker cabinet line features a modern, stunning and functional design. The high-quality construction of the cabinets provides easy-to-use storage. Beautiful deep navy color is enhanced by the straight lines of the shaker-style doors and drawers. The doors are made of 3/4" solid thick wood, and the center panel is Medium Density Fiberboard.
