Malibu Kona - Pre-Assembled Cabinets

Overview

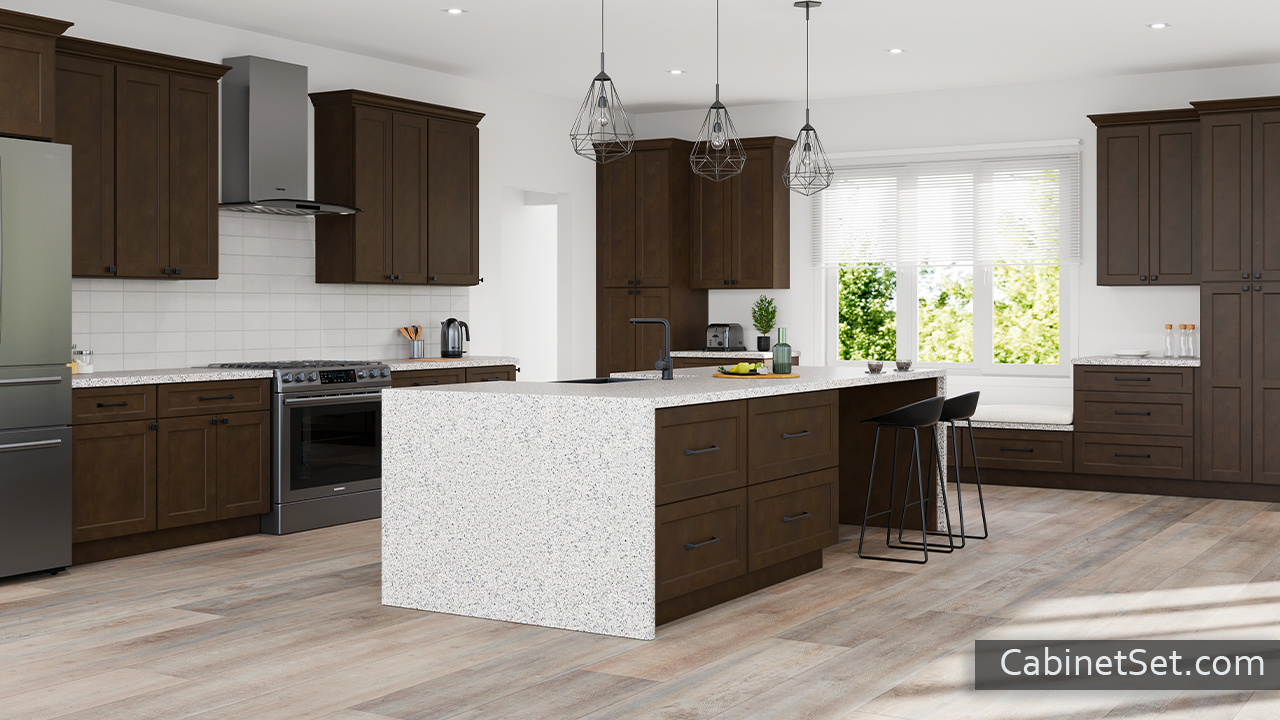

Malibu Kona kitchen full view with an island.

Color & Finish

Brown, stain

Profile & Overlay

Recessed panel, full overlay

Slides & Hinges

Tandem plus Blumotion soft closing, under mount, full extension, 4 way adjustable

Best Price Guarantee

This product is backed by The 90 Day Best Price Guarantee

Free Shipping over $2500

Leaves the warehouse in 5-7 business days

Specifications

The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.

General specifications
Color & finish	Brown stain
Door and drawer profile	Recessed panel
Wood species	Birch
Sides color	Cabinet sides are unfinished, finishing skins are required for exposed sides.
Drawers	Tandem plus Blumotion soft closing, under mount, full extension, 4 way adjustable. ⅝” solid wood dovetail drawer box with a ⅜” plywood bottom panel, natural color finish. Video Picture
Door hinges	Blumotion euro-style, dual mode, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned on or off. Hinges open at 110°. Compact Clip Hinges with Quick-Release technology. Soft Closing Hinge Video Example
Interior color	Clear coated natural wood color. Glass door and no door cabinets come with a matching (same as cabinet front) interior color.
Particle board	No particle board is used in this cabinet line construction
Doors	3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction	½" unfinished plywood side panels dovetailed into face frame. ½" thick veneered plywood back with a natural finished interior. See interior color section for information on interior finish.
Face frame	1-1/2" wide x 3/4" thick solid wood
Shelves	3/4" (18mm) veneered plywood adjustable shelving with matching wood veneer edge banding. Metal shelf pins.
Toe kick	¾" thick unfinished plywood toe kick. Matching ¼" toe kick cover to be ordered separately.
Base corner supports	Plywood strips
Center stile	No center stile on cabinets up to 36" wide
Door and drawer stoppers	Clear adheisive bumpers
Hinge side	Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
CARB compliant	Yes About CARB compliance
Q12 qualification	Yes About Q12 qualification

Base Cabinets
Door height	22-1/2"
Upper drawer front height	6-5/8"
Upper drawer box height	3-7/8" exterior, 3" interior drawer height.
Upper drawer box exterior depth (front to back)	Varies, call for more details
Shelf depth	18"
Toe kick height	4-1/2"
Toe kick depth	2-1/8" from the cabinet front
Cabinet height	34-1/2"

Drawer Base Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Upper drawer box exterior depth (front to back)	Varies, call for more details
Lower drawer fronts height	Varies, call for more details
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	Same as the regular base cabinets, see above

Bathroom Vanity Cabinets
Upper drawer front height	Same as the regular base cabinets, see above
Upper drawer box height	Same as the regular base cabinets, see above
Door height	22-1/2"
Toe kick height	Same as the regular base cabinets, see above
Toe kick depth	Same as the regular base cabinets, see above
Cabinet height	34-1/2"

Wall Cabinets
Shelf depth	Full depth
Bottom panels finish	Clear coated natural wood color

Full Overlay Installation
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), it is recommended to add at least 1/4" spacer for an additional clearance to allow doors/drawers operate smoothly. Some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example

About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

360° View

360 Degree View

Matching Lines

The following cabinet lines have similar specifications and the same door profile.

PDF Catalog

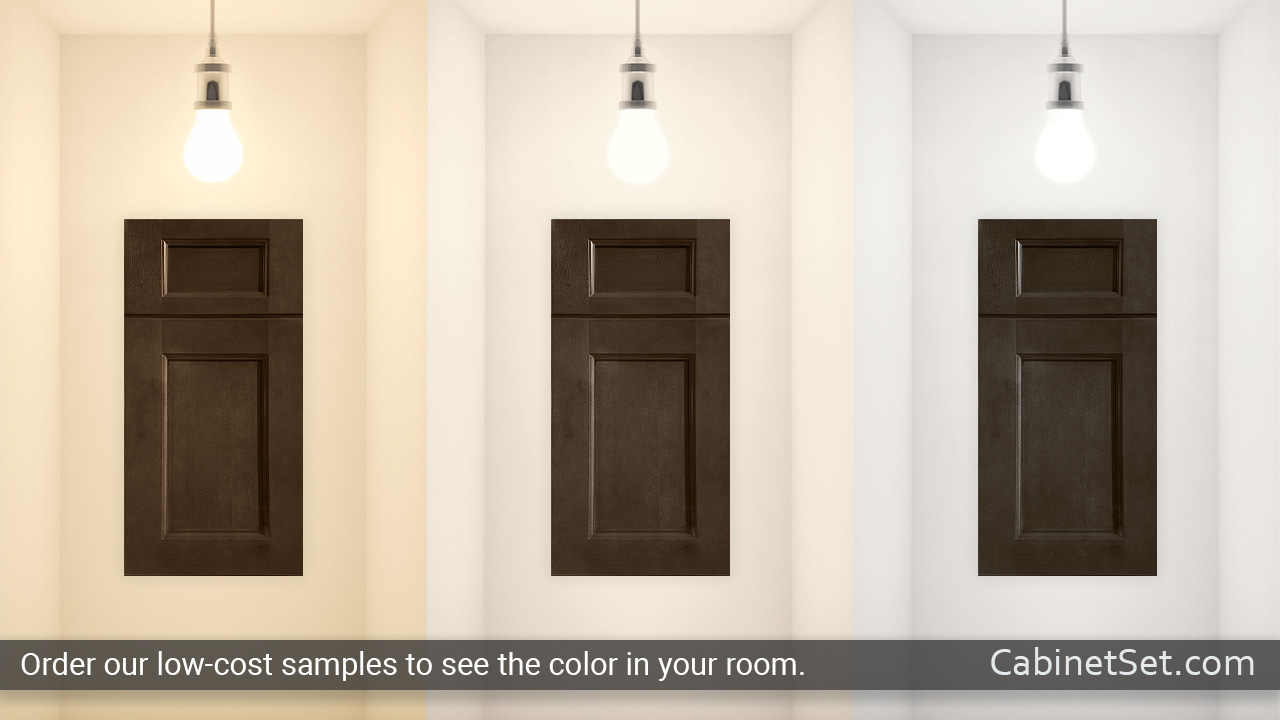

Refundable Samples
Malibu Kona Sample Square
Details
Wood block cabinet color sample.
Approximate size: 6" wide x 6" high.

Special Price $2.99 Regular Price $7.48
Malibu Kona Sample
Details & Options
See the product page for dimensions.
Available as pre-assembled.

$6.99 - $24.99
Single Door Wall Cabinets - 30" High
W0930 Malibu Kona Pre-Assembled
Width: 9"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $232.69 Regular Price $357.98
W1230 Malibu Kona Pre-Assembled
Width: 12"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $252.80 Regular Price $388.92
W1530 Malibu Kona Pre-Assembled
Width: 15"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $263.30 Regular Price $405.08
W1830 Malibu Kona Pre-Assembled
Width: 18"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $303.51 Regular Price $466.94
W2130 Malibu Kona Pre-Assembled
Width: 21"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 2 shelves.

Special Price $334.15 Regular Price $514.08
Double Door Wall Cabinets - 30" High
W2430 Malibu Kona Pre-Assembled
Width: 24"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $407.60 Regular Price $627.08
W2730 Malibu Kona Pre-Assembled
Width: 27"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $425.98 Regular Price $655.35
W3030 Malibu Kona Pre-Assembled
Width: 30"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $435.60 Regular Price $670.16
W3330 Malibu Kona Pre-Assembled
Width: 33"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $455.72 Regular Price $701.11
W3630 Malibu Kona Pre-Assembled
Width: 36"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves.

Special Price $475.85 Regular Price $732.07
W3930 Malibu Kona Pre-Assembled
Width: 39"
Height: 30"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 2 shelves. This cabinet has 1-1/2" center stile.

Special Price $600.04 Regular Price $923.14
Single Door Wall Cabinets - 36" High
W0936 Malibu Kona Pre-Assembled
Width: 9"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $272.90 Regular Price $419.85
W1236 Malibu Kona Pre-Assembled
Width: 12"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $299.15 Regular Price $460.23
W1536 Malibu Kona Pre-Assembled
Width: 15"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $313.16 Regular Price $481.78
W1836 Malibu Kona Pre-Assembled
Width: 18"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $354.26 Regular Price $545.02
W2136 Malibu Kona Pre-Assembled
Width: 21"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $399.75 Regular Price $615.00
Double Door Wall Cabinets - 36" High
W2436 Malibu Kona Pre-Assembled
Width: 24"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $487.21 Regular Price $749.56
W2736 Malibu Kona Pre-Assembled
Width: 27"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $506.46 Regular Price $779.17
W3036 Malibu Kona Pre-Assembled
Width: 30"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $516.96 Regular Price $795.32
W3336 Malibu Kona Pre-Assembled
Width: 33"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $557.18 Regular Price $857.20
W3636 Malibu Kona Pre-Assembled
Width: 36"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $592.16 Regular Price $911.01
W3936 Malibu Kona Pre-Assembled
Width: 39"
Height: 36"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet has 1-1/2" center stile.

Special Price $649.90 Regular Price $999.84
Single Door Wall Cabinets - 42" High
W0942 Malibu Kona Pre-Assembled
Width: 9"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $313.16 Regular Price $481.78
W1242 Malibu Kona Pre-Assembled
Width: 12"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.

Special Price $342.02 Regular Price $526.18
W1542 Malibu Kona Pre-Assembled
Width: 15"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $363.88 Regular Price $559.81
W1842 Malibu Kona Pre-Assembled
Width: 18"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $404.10 Regular Price $621.69
W2142 Malibu Kona Pre-Assembled
Width: 21"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 1 door and 3 shelves.

Special Price $466.22 Regular Price $717.26
Double Door Wall Cabinets - 42" High
W2442 Malibu Kona Pre-Assembled
Width: 24"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $537.06 Regular Price $826.25
W2742 Malibu Kona Pre-Assembled
Width: 27"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $586.93 Regular Price $902.97
W3042 Malibu Kona Pre-Assembled
Width: 30"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $597.42 Regular Price $919.11
W3342 Malibu Kona Pre-Assembled
Width: 33"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $657.78 Regular Price $1,011.97
W3642 Malibu Kona Pre-Assembled
Width: 36"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves.

Special Price $708.50 Regular Price $1,090.00
W3942 Malibu Kona Pre-Assembled
Width: 39"
Height: 42"
Depth: 12"
Details & Options
Wall cabinet with 2 doors and 3 shelves. This cabinet has 1-1/2" center stile.

Special Price $826.58 Regular Price $1,271.66
Bridge Wall Cabinets
W3012 Malibu Kona Pre-Assembled
Width: 30"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $263.30 Regular Price $405.08
W3312 Malibu Kona Pre-Assembled
Width: 33"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $272.90 Regular Price $419.85
W3612 Malibu Kona Pre-Assembled
Width: 36"
Height: 12"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $283.41 Regular Price $436.02
W1215 Malibu Kona Pre-Assembled
Width: 12"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $188.94 Regular Price $290.68
W1515 Malibu Kona Pre-Assembled
Width: 15"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $196.50 Regular Price $302.30
W1815 Malibu Kona Pre-Assembled
Width: 18"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $230.51 Regular Price $354.63
W2115 Malibu Kona Pre-Assembled
Width: 21"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 1 door.

Special Price $249.30 Regular Price $383.54
W2415 Malibu Kona Pre-Assembled
Width: 24"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $254.55 Regular Price $391.61
W2715 Malibu Kona Pre-Assembled
Width: 27"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $260.73 Regular Price $401.13
W3015 Malibu Kona Pre-Assembled
Width: 30"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $272.90 Regular Price $419.85
W3315 Malibu Kona Pre-Assembled
Width: 33"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $283.41 Regular Price $436.02
W3615 Malibu Kona Pre-Assembled
Width: 36"
Height: 15"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $293.03 Regular Price $450.82
W2418 Malibu Kona Pre-Assembled
Width: 24"
Height: 18"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $282.54 Regular Price $434.68
W3018 Malibu Kona Pre-Assembled
Width: 30"
Height: 18"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $283.41 Regular Price $436.02
W3318 Malibu Kona Pre-Assembled
Width: 33"
Height: 18"
Depth: 12"
Details & Options
Wall cabinet with 2 doors.

Special Price $293.03 Regular Price $450.82

Show More Products

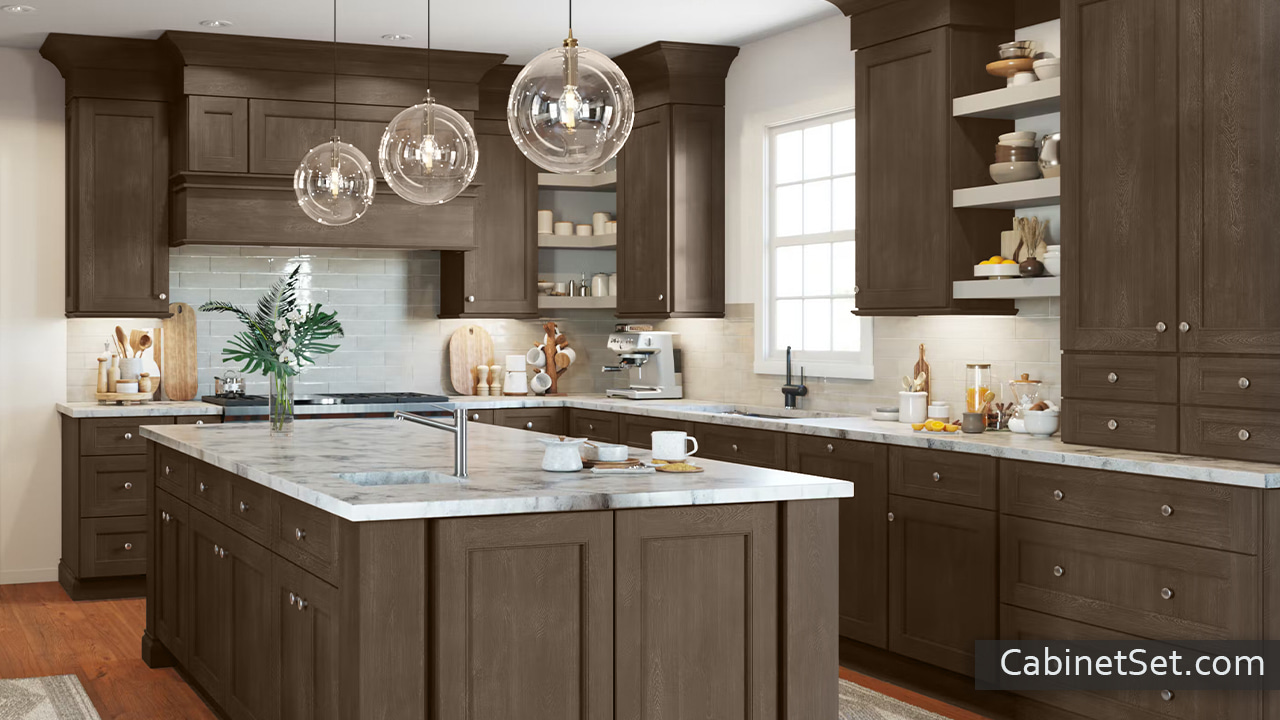

About Malibu Kona

Malibu Kona is an ideal choice to start your next kitchen project remodeling. Malibu Kona is a functional and modern kitchen and bathroom cabinet line that offers supreme quality wood materials, wide selection of cabinetry and accessories, advanced hardware and semi-custom options.
