The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
Color & finish
Classic white paint
Profile & overlay
Shaker style doors, solid slab drawer fronts, full overlay.
Maple or birch
Matches cabinet front, no skins required.

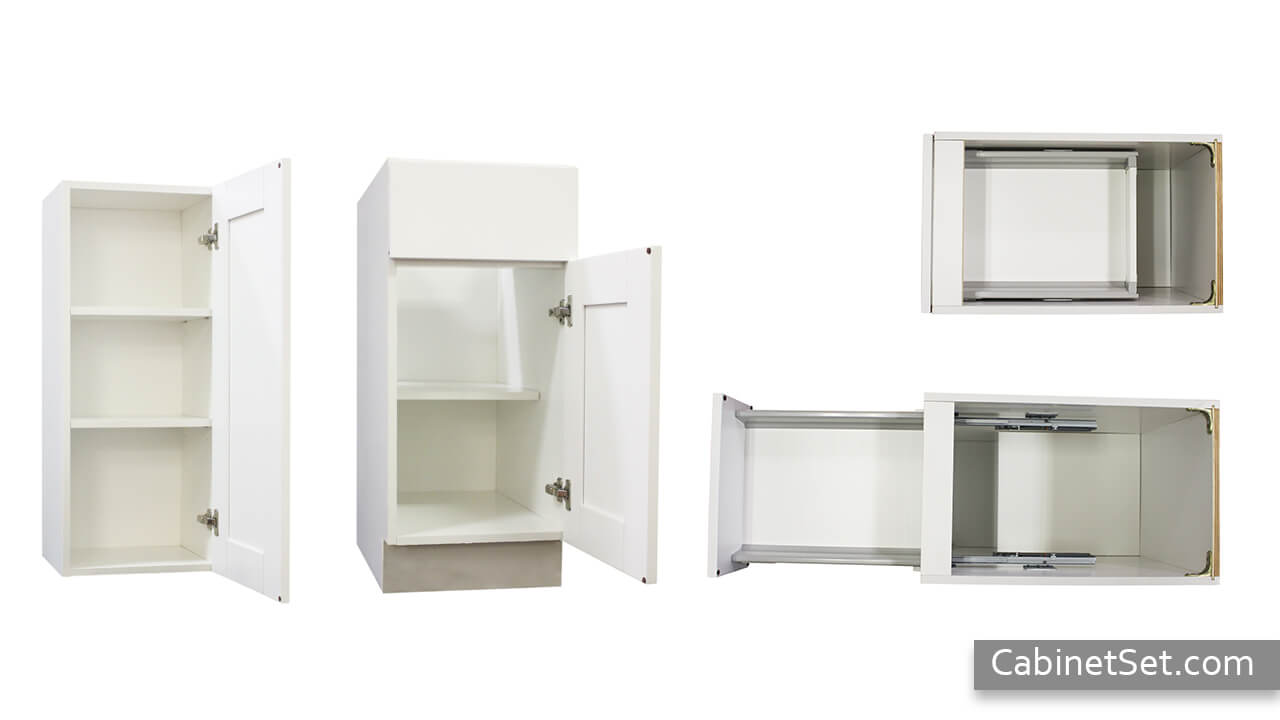

Metal drawer system with under-mount slides. Soft closing, full extension, 6 way adjustable. Soft closing drawer examples: VideoPicture
Euro-style, soft-closing, concealed, 6 way adjustable. Soft closing door hinge example: Video
Matches cabinet front
No particle board is used in this cabinet line construction
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.

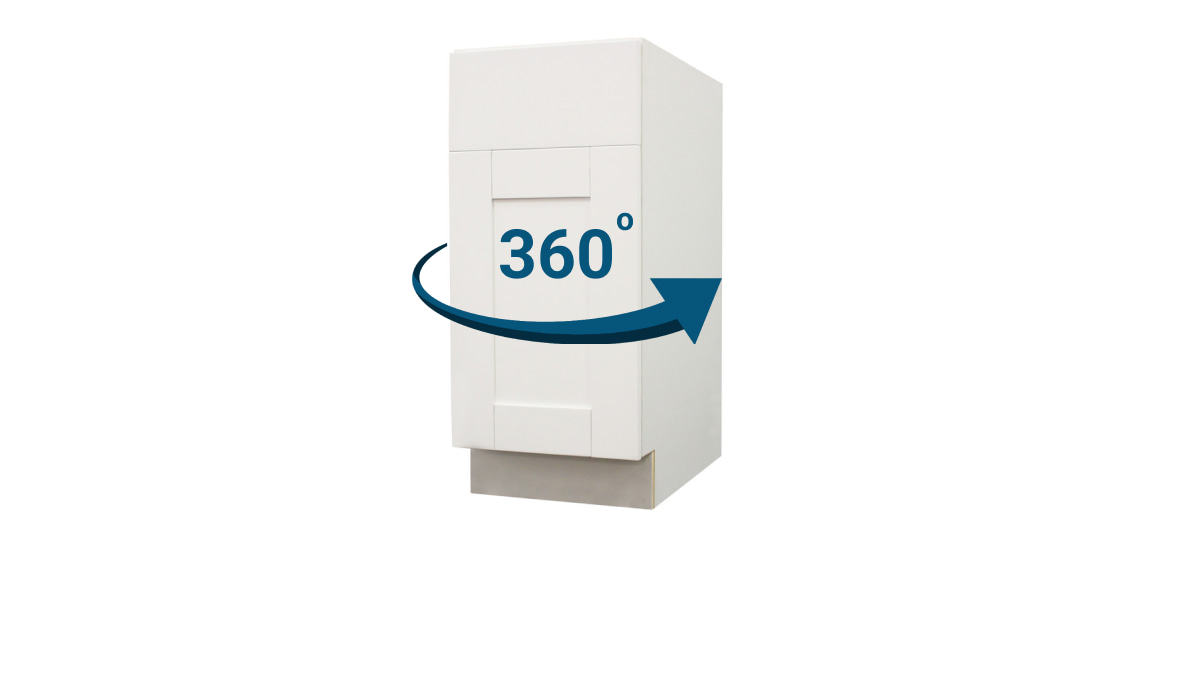

Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
This Kitchen Line features an impeccable Shaker design of a door and drawer profile. Anchester White cabinets are constructed with plywood backs and bottoms to build a strong and long-lasting box. Because plywood holds securely and resists moisture damage, Anchester White cabinets will withstand the daily wear and tear of a busy kitchen.
