Soft closing, under mount, full extension, 6 way adjustable
Cabinet Sides
Finished, skins are not required
Shipping
Leaves the warehouse in 5-7 business days Order delivery depends on your location. Usually orders arrive in 3-6 business days after leaving the warehouse. Read more Due to the upcoming holidays, all orders placed after 12/17/23 will be shipped after the New Year
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
General specifications
Color & finish
White paint
Profile & overlay
Shaker style, full overlay
Wood species
Birch
Sides color
Matches cabinet front, no skins required.
Drawers

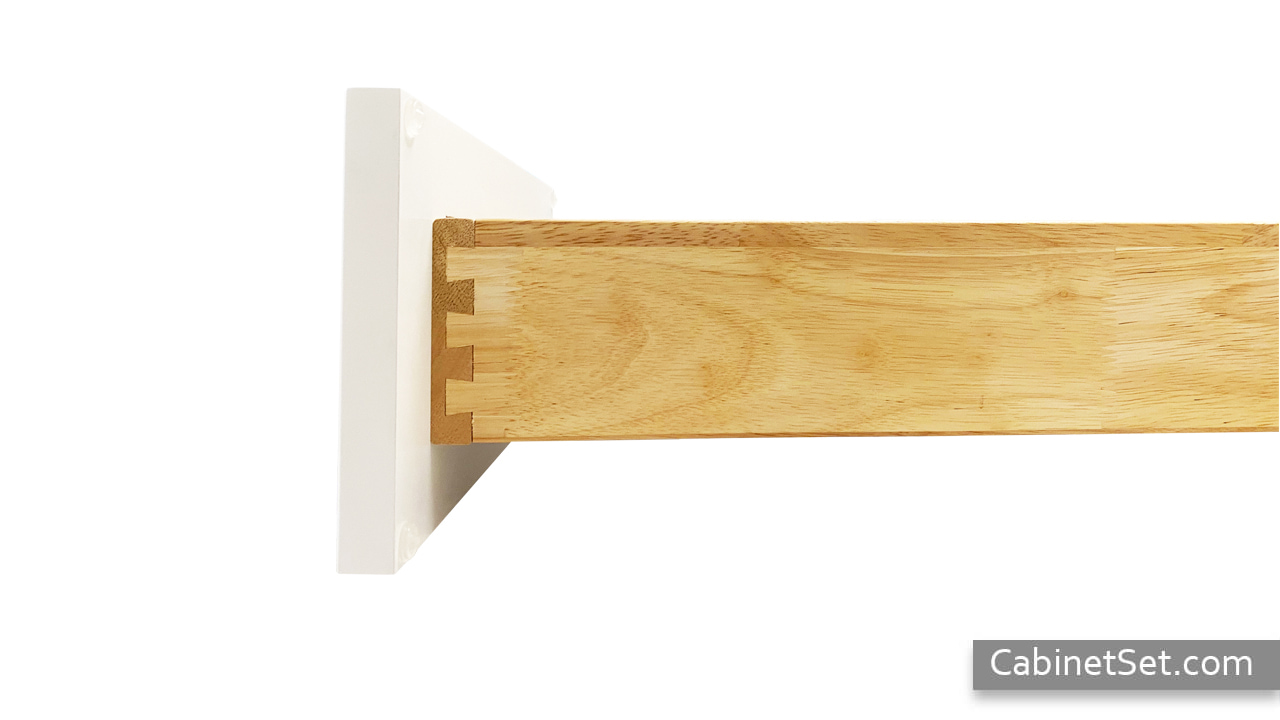

17 mm (close to 3/4" thick) dovetail solid wood frame, 1/2" thick plywood bottom, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. VideoPicture
Door hinges
Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color
Clear coated natural wood color.
Particle board
No particle board is used in this cabinet line construction
½" thick A-Grade plywood side/top/bottom panels with wood veneer. ½" thick full back on walls and bases.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
3/4" thick A-Grade plywood with wood veneer, adjustable. Metal shelf pins
Toe kick
1/2" thick, color matches cabinet front.
Base corner supports
Metal corner braces.
Center stile
No center stile on all wall and base cabinets up to 36" wide
Door and drawer stoppers
Clear adhesive bumpers
Hinge side
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.
This cabinet line is assembled with metal cleats. Cabinets will come with assembly instructions. See the general assembly information below.
Drawers and cabinet boxes

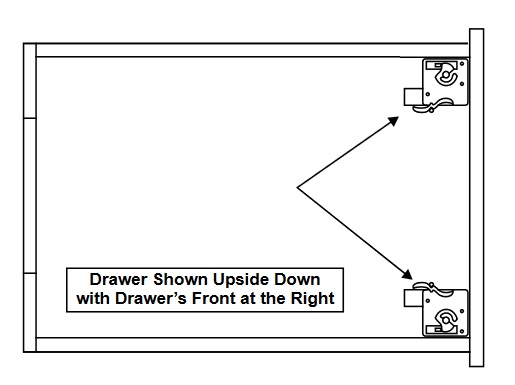

We recommend using wood glue for dovetail drawer box joints and cabinet box assembly. Drawer drawer boxes are attached to drawer slides by using brackets. See the bracket attachment diagram for more details.
Additional Information

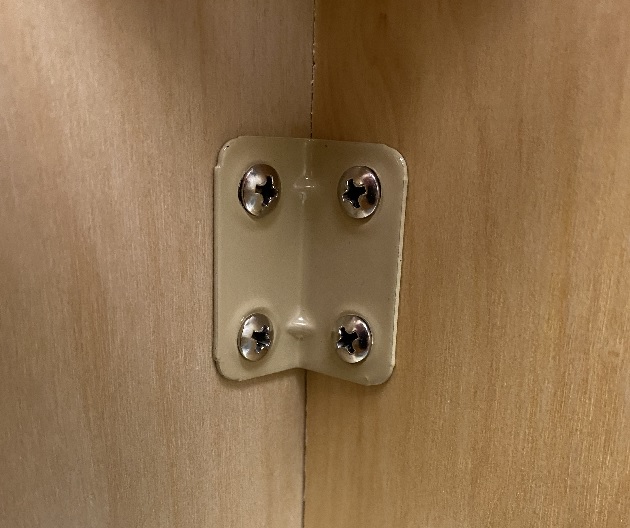

This cabinet line assembly is similar to the interlocking metal corner bracket assembly method. See the link below for more information. Please note, the assembly method below uses other cabinet brackets and cabinet construction may be different.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3030 cabinet and WF630 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 2 shelves. This cabinet will be provided as a W3036 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 3 shelves. This cabinet will be provided as a W3042 cabinet and WF642 filler. The filler will be used as a center stile, it will need to be mounted on-site. This cabinet takes up more space than its width, the recommended space is 30"-33". It can be used as left or right. The door section is 11-3/16" wide. The cabinet will come with two doors, but you will need to remove the one door during assembly. Afterward, you will install a 6" filler in the center of the cabinet to serve as the stile. The filler will be included. See the product page for an installation diagram example.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
These cabinets feature full overlay doors, dovetail drawers, soft closing adjustable hinges and drawer slides, quality wood finished, and strong cabinet construction. Victoria White Shaker Kitchen Cabinets will add everlasting and desirable aesthetics to any kitchen.
