Soft closing, under mount, full extension, 6 way adjustable
Cabinet Sides
Finished, skins are not required
Shipping
Leaves the warehouse in 5-7 business days Order delivery depends on your location. Usually orders arrive in 3-6 business days after leaving the warehouse. Read more
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
General specifications
Color & finish
Cream White paint
Profile & overlay

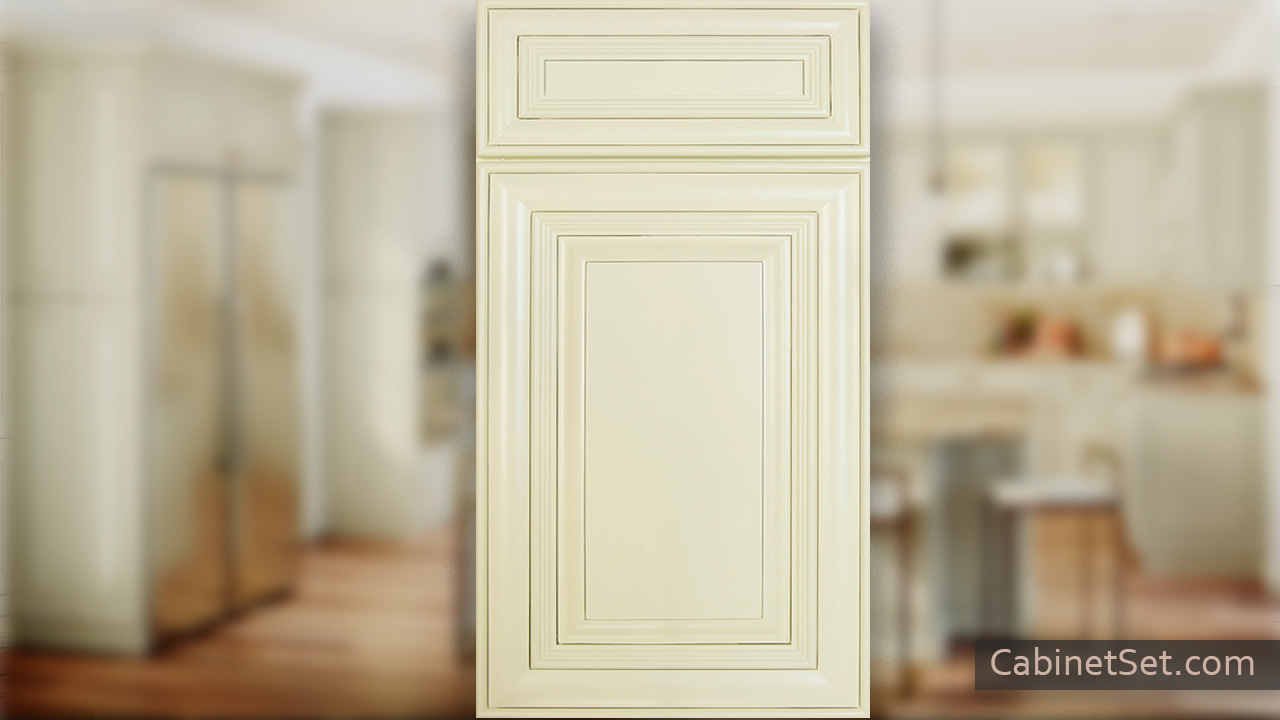

Raised panel door, full overlay
Wood species
Maple or birch
Sides color
Matches cabinet front, no skins required.
Drawers
11/16" thick dovetail solid wood frame, natural color finish. Soft closing, under-mount, full extension, 6 way adjustable. Soft closing drawer examples: VideoPicture
Door hinges
Euro-style, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned off. Soft closing door hinge example: Video
Interior color
Clear coated natural maple finish.
Particle board
No particle board is used in this cabinet line construction
Doors
3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction
1/2" thick grade plywood box construction. Back panel is 5/8"-3/4" thick plywood picture frame recessed style.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
5/8"-3/4" thick plywood, adjustable. Metal shelf pins.
Toe kick
1/2", color matches cabinet front
Base corner supports
Metal brackets
Center stile
Wall cabinets: Wall Top Hinge and Butt door cabinets do not have a center stile. Base and vanity cabinets: Butt door cabinets do not have a center stile.
Door and drawer stoppers
Clear adhesive bumpers
Hinge side
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.
Easy reach wall corner cabinet with 1 bi-fold door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front parts are approximately 12" wide on each side.
Easy reach wall corner cabinet with 1 bi-fold door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front parts are approximately 12" wide on each side.
Easy reach wall corner cabinet with 1 bi-fold door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front parts are approximately 12" wide on each side.
Wall end shelf cabinet with 3 shelves. This cabinet takes up 9" of wall space. It can be used as left or right. See the product page for additional picture(s).
Wall end shelf cabinet with 3 shelves. This cabinet takes up 9" of wall space. It can be used as left or right. See the product page for additional picture(s).
Wall end shelf cabinet with 4 shelves. This cabinet takes up 9" of wall space. It can be used as left or right. See the product page for additional picture(s).
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.
Base blind corner cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet takes up more space than its width, the recommended space is 42". It can be used as left or right, requires a base filler (not included). The door and drawer section is 15" wide. See the product page for an installation diagram example.

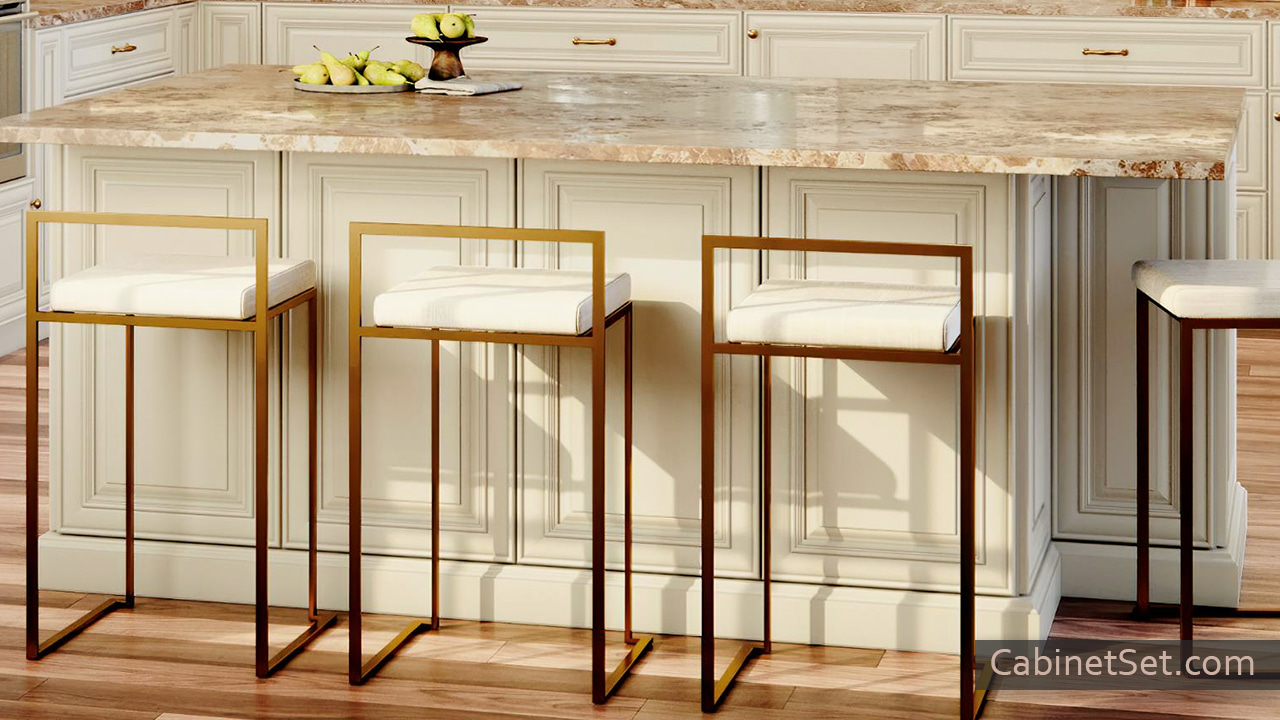

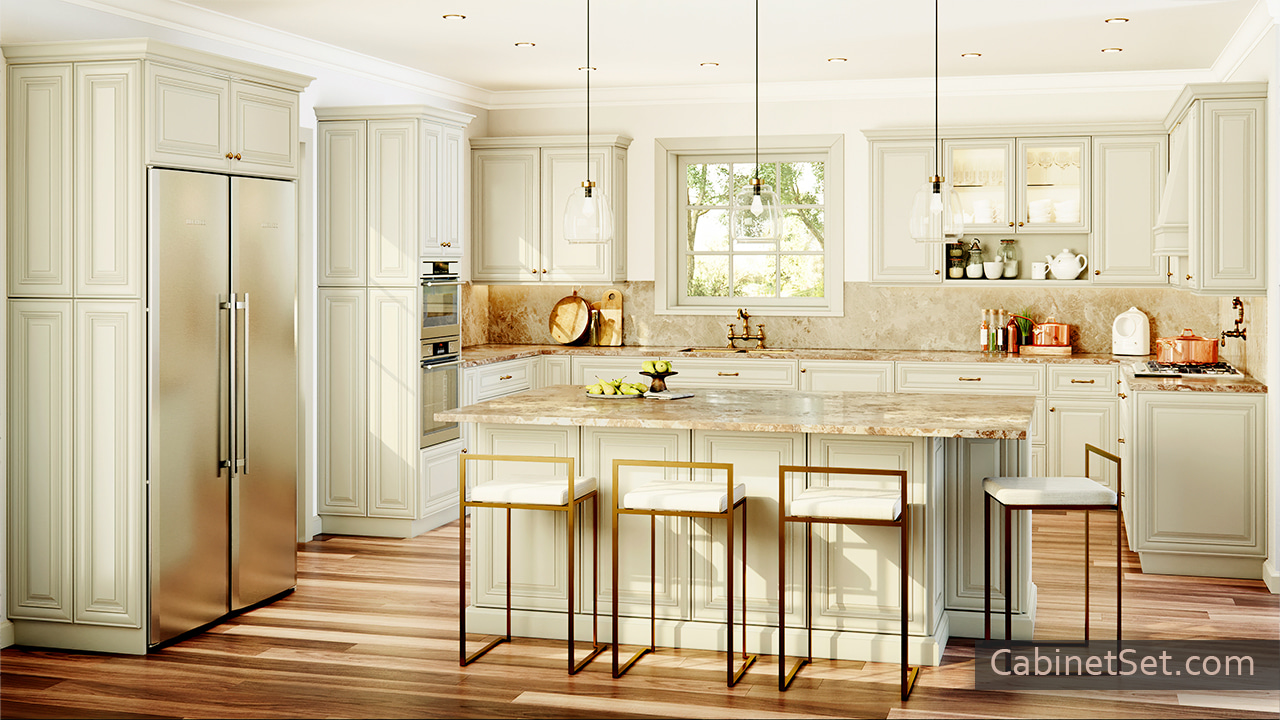

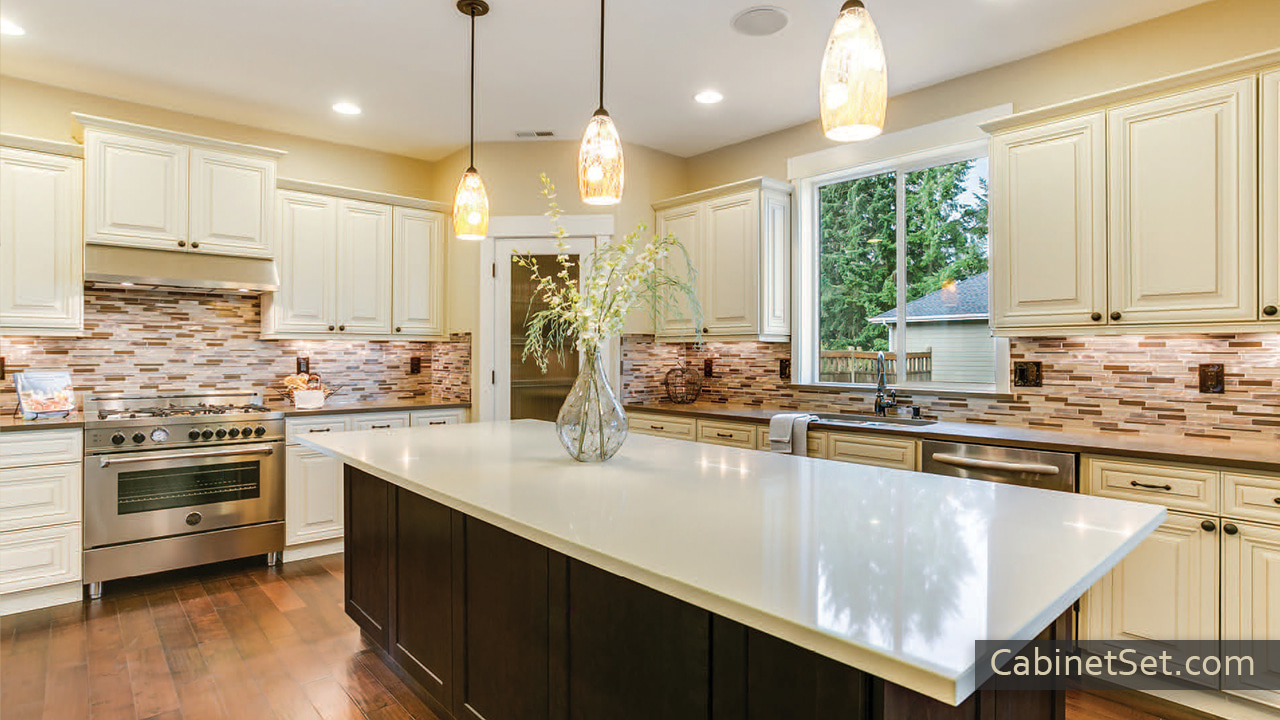

Vanilla Glaze kitchen and bathroom cabinet line is designed to the highest standards in style and function. These kitchen cabinets feature supreme quality of wood, hardware, and finish. Traditional raised-panel doors and creamy white color will never go out of style. Vanilla Glaze RTA cabinets will be a perfect choice for your new kitchen or bathroom.
