Chocolate with dark glaze, stain and hand applied glaze
Profile & Overlay

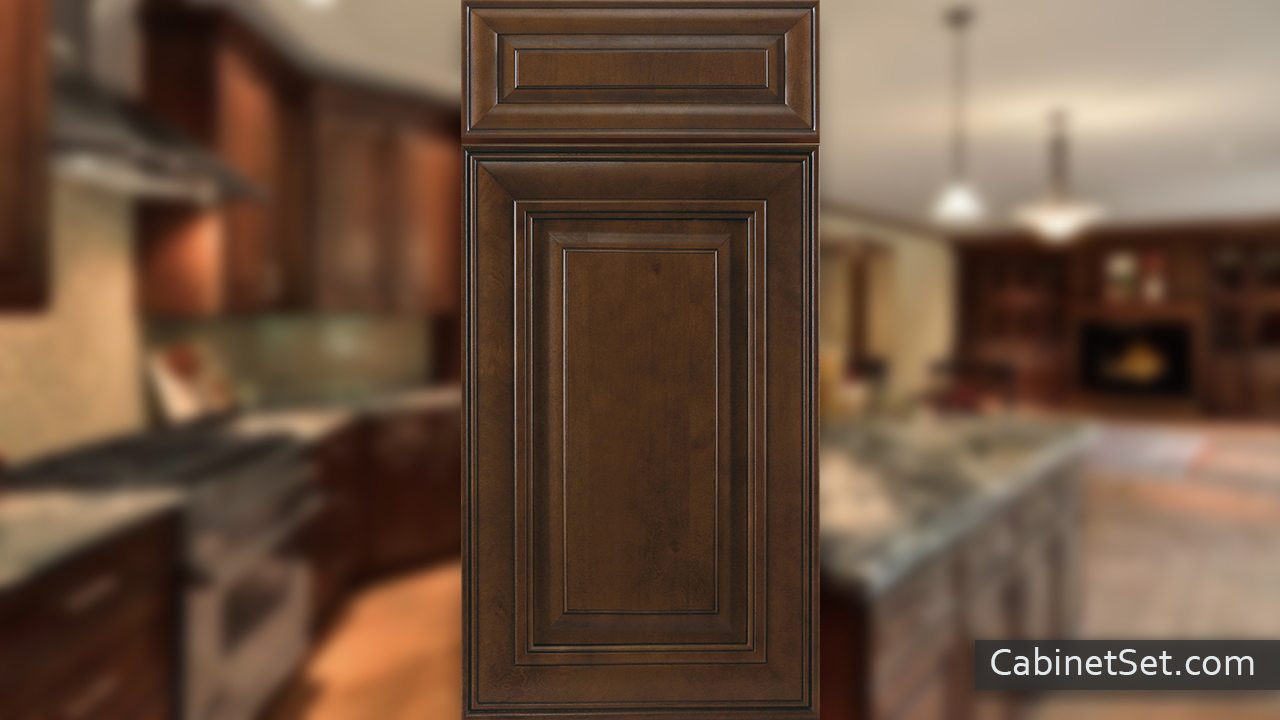

Raised panel, full overlay
Slides & Hinges
Soft closing, under mount, full extension, 6 way adjustable
Cabinet Sides
Matches cabinet front, skins are not required
Shipping
Leaves the warehouse in 7-10 business days Order delivery depends on your location. Usually orders arrive in 3-6 business days after leaving the warehouse. Read more
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
Euro-style, dual mode, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned on or off. Video
Interior color
Clear coated natural wood color. Glass door cabinets come with a matching (same as cabinet front) interior color.
Particle board
No particle board is used in this cabinet line construction

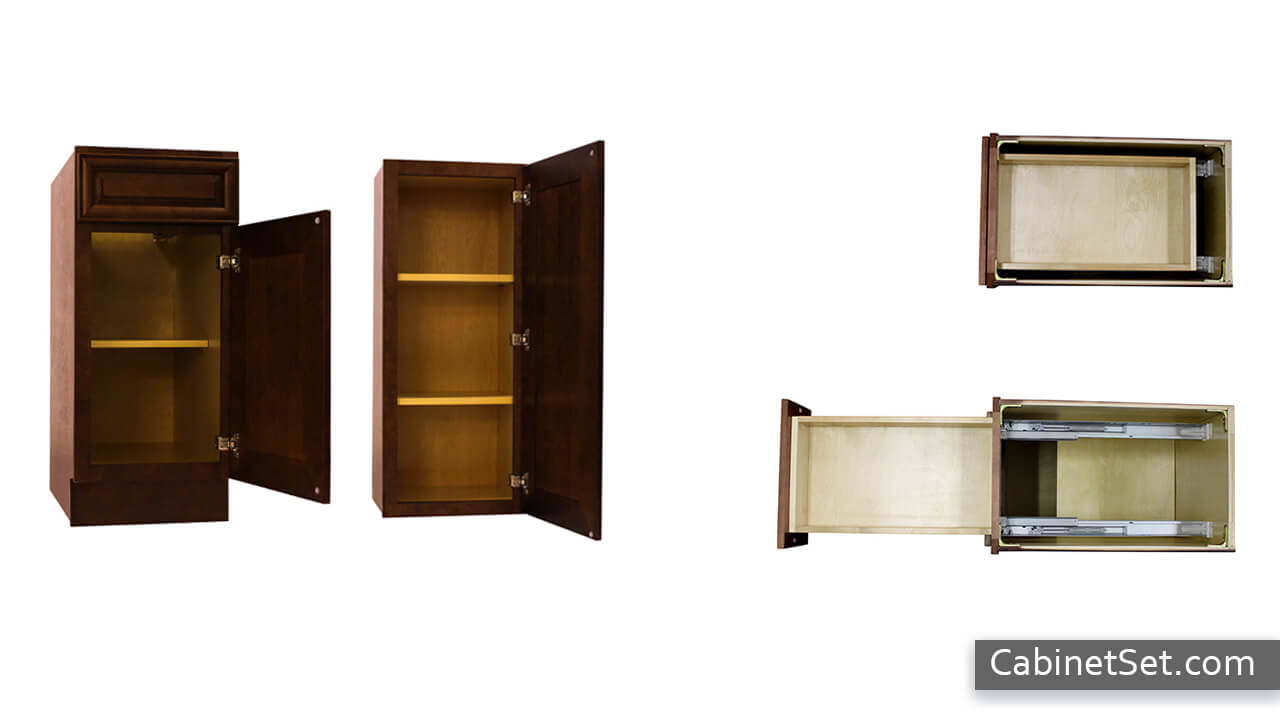

Doors
3/4" thick solid wood door and drawer front frame with solid wood center panel. Doors and drawer fronts are 5-piece construction.
Cabinet construction
1/2"-5/8" thick cabinet-grade plywood cabinet box. Back panel is 5/8"-3/4" thick plywood, picture frame recess style.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
3/4” thick cabinet-grade plywood, clear coat finish on all sides and edges, adjustable. Metal shelf pins.
Toe kick
1/2"-5/8", color matches cabinet front.
Base corner supports
Corner metal bracket reinforcements.
Center stile
No center stile on all cabinets
Door and drawer stoppers
Clear adhesive bumpers
Hinge side
Hinges on single door wall, base, and pantry cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

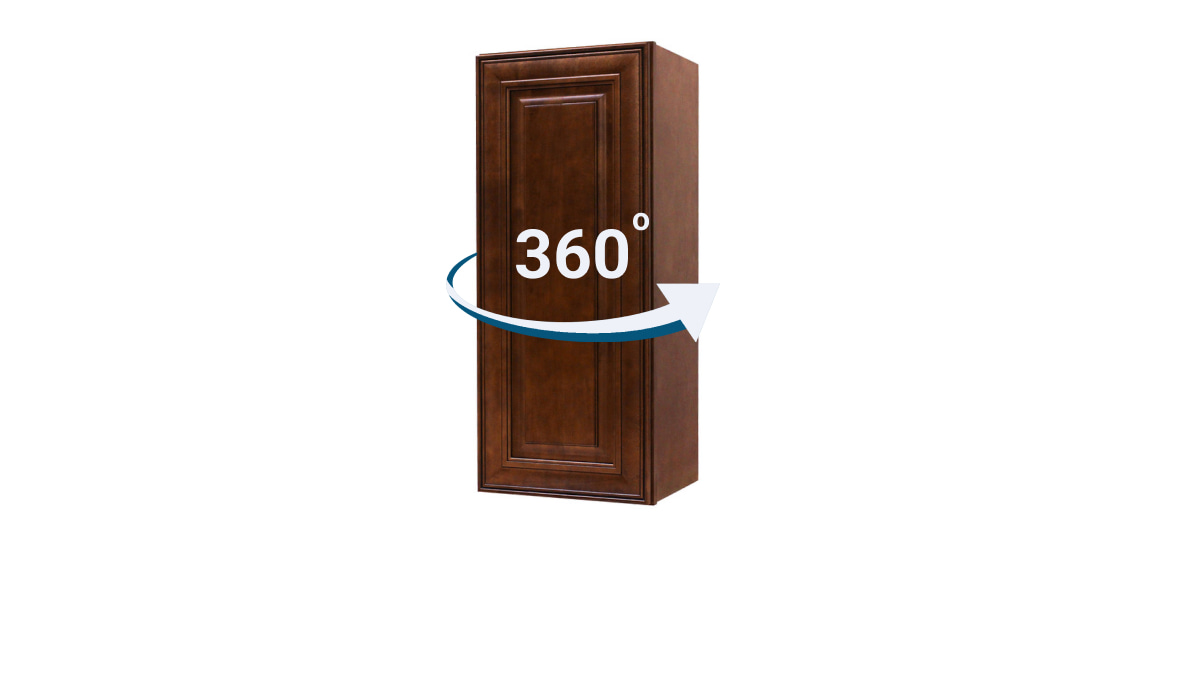

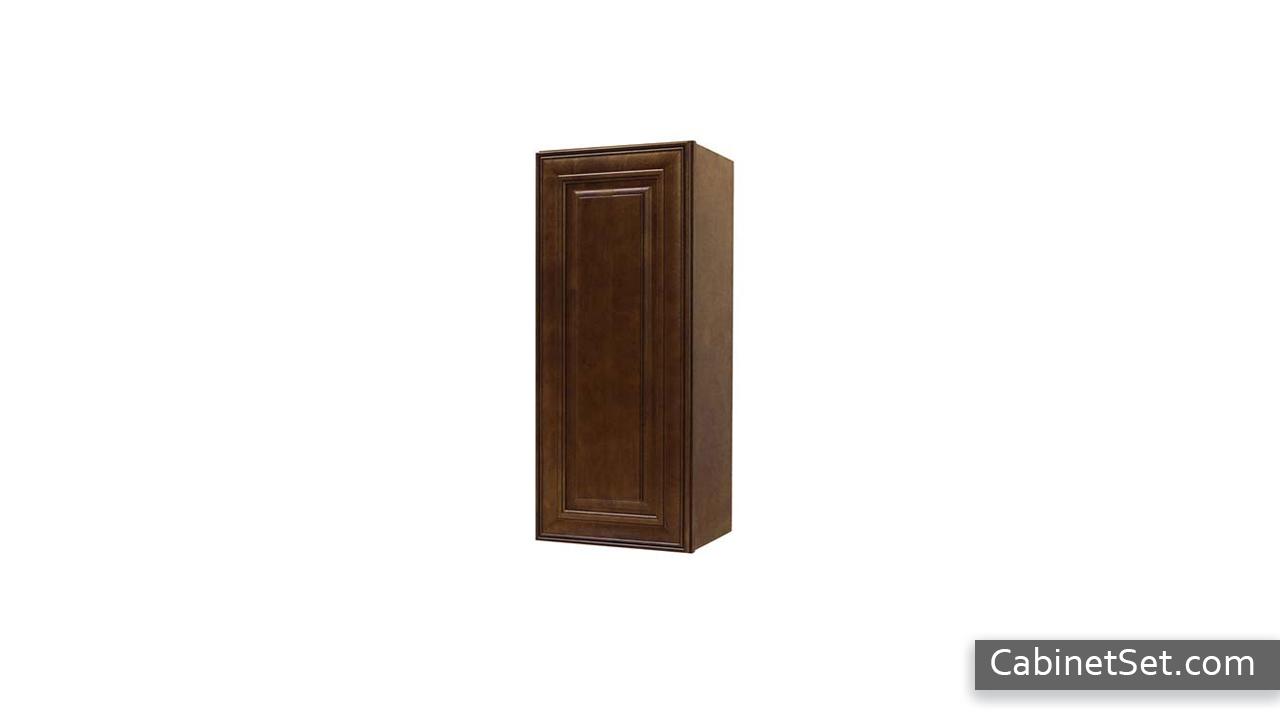

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door.
Wall cabinet with 2 doors and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with a glass door.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. This cabinet is also available with a glass door.
Wall blind corner cabinet with 1 door and 2 shelves. It can be used as left or right, requires a wall filler (not included). The door section is approximately 15" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 2 shelves. It can be used as left or right, requires a wall filler (not included). The door section is approximately 15" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 1 door and 3 shelves. It can be used as left or right, requires a wall filler (not included). The door section is approximately 15" wide. See the product page for an installation diagram example.
Wall glass door cabinet with 1 door. It includes one glass door with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door. It includes one glass door with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door. It includes one glass door with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door. It includes one glass door with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors. It includes two glass doors with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors. It includes two glass doors with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors. It includes two glass doors with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors. It includes two glass doors with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors. It includes two glass doors with a clear lined glass insert and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 2 shelves. It includes one glass door with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 2 doors and 2 shelves. It includes two glass doors with a clear lined glass insert, two glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 3 shelves. It includes one glass door with a clear lined glass insert, three glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 3 shelves. It includes one glass door with a clear lined glass insert, three glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.
Wall glass door cabinet with 1 door and 3 shelves. It includes one glass door with a clear lined glass insert, three glass shelves and matching color interior. The door does not have a mullion. The original cabinet door will not be included.

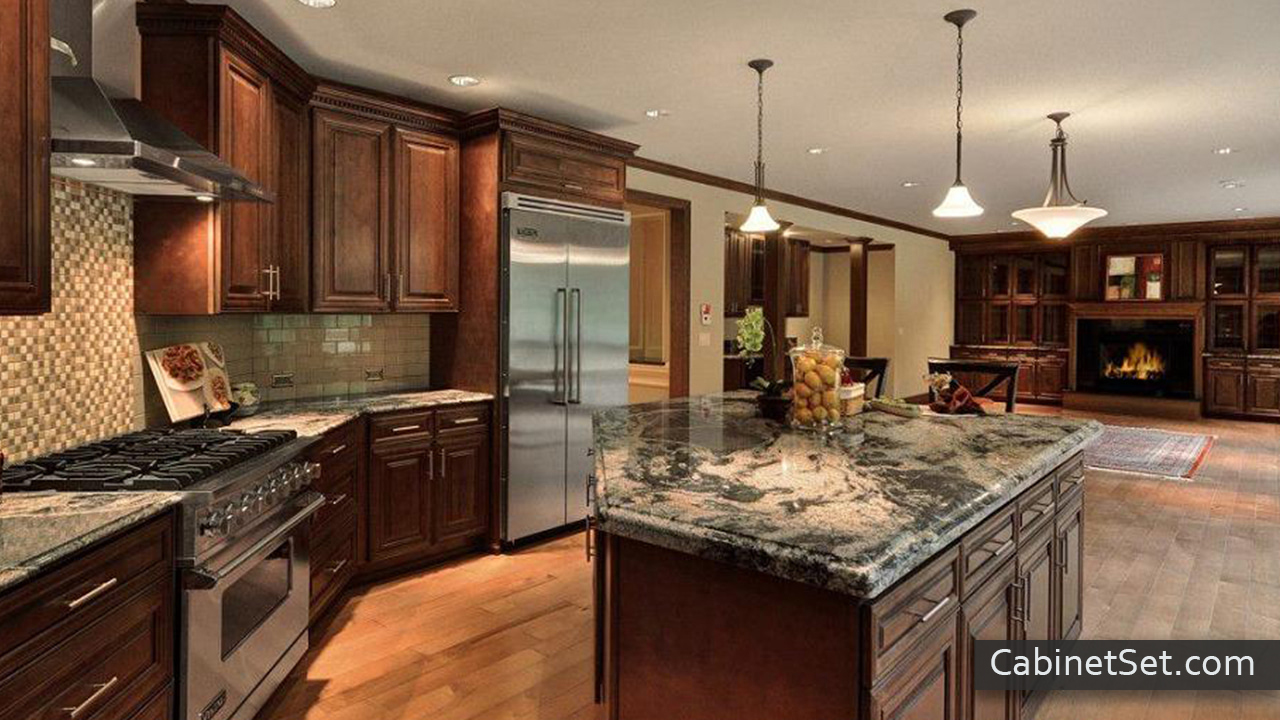

If you are looking for the overall quality, functionality, and durability Jackson Glaze cabinet line is for you. This cabinet line is constructed with 100% solid wood doors and frames, thick plywood boxes, and soft-close metal door hinges. The beautiful chocolate color will give a more traditional look to your kitchen.
