The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
Door and drawer profile
Raised panel doors, recessed panel drawer fronts
Matches cabinet front, no skins required.
Soft closing, under mount, full extension, 6 way adjustable. VideoPicture
Euro-style, soft-closing, concealed, 6 way adjustable. Video
Matches cabinet front
Toe kick color
Matches cabinet front
No particle board is used in this cabinet line construction
Doors and drawer fronts
3/4" thick solid wood door and drawer front frame. Doors and drawer fronts are 5-piece construction.
Side, top, and bottom panels
3/4" thick plywood with wood veneer.
1/4" inch thick with 1/2" thick bordering frame around the perimeter of the panel for added support. Set into dado of top, bottom, and side panels.
3/4" thick solid wood box, 1/4" thick plywood with wood veneer bottom on kitchen cabinets. 3/4" thick plywood with wood veneer box, 1/4" thick plywood with wood veneer bottom on bathroom vanities.
3/4" thick plywood with wood veneer, adjustable
Toe kick thickness
Base corner supports
No center stile on all cabinets
Door and drawer stoppers
Foam adheisive bumpers
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), we recommend adding at least 1/4" additional clearance to allow doors/drawers operate smoothly. The 1/4" is the minimum recommended, however, some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally, the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
Specifications are subject to change without notice. Certain dimensions are rounded to the nearest 1/8". Contact us with any questions about cabinet styles and specifications.
Diagonal wall corner cabinet with 1 door and 2 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.
Diagonal wall corner cabinet with 1 door and 3 shelves. This cabinet takes up 24" of space on each side of the corner. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets. See the product page for more details.
Base cabinet with 1 door, 1 drawer, and 1 shelf. This cabinet can be modified into a waste container pullout base cabinet. The waste container pullout hardware is available in the Cabinet Organizers section.

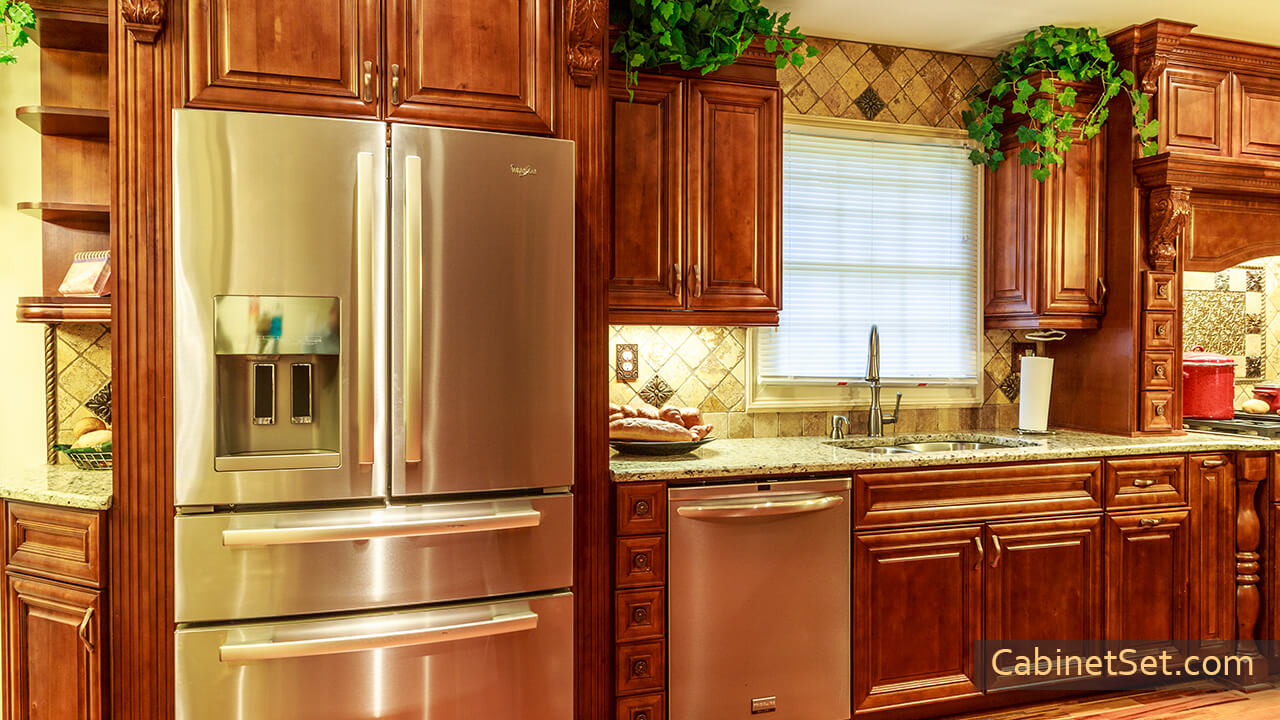

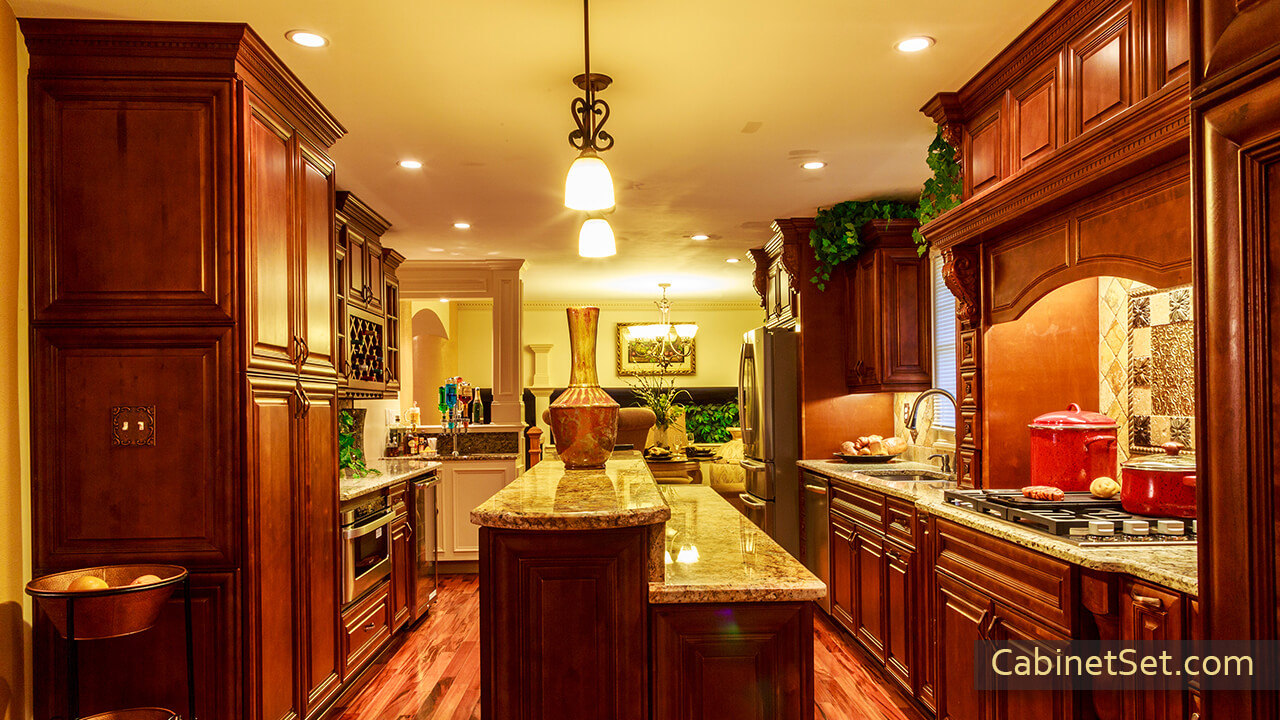

Tradition and quality are the distinct features of the Coffee Cherry cabinet line. This line features raised panel doors, and flat panel drawer fronts. These are made of 3/4" thick solid maple wood. Doors and drawer fronts are 5-piece construction. Set the tone with Coffee Cherry cabinetry when you want quality craftsmanship, classic beauty, and smooth, clean lines.
