Soft closing, under mount, full extension, 6 way adjustable
Cabinet Sides
Cabinet sides are unfinished, finishing skins are required for exposed sides
Shipping
Leaves the warehouse in 5-7 business days Order delivery depends on your location. Usually orders arrive in 3-6 business days after leaving the warehouse. Read more
The detailed cabinet specifications including cabinet sizes, specific parts dimensions, height, width, and other information are below. Please note cabinet specifications vary depending on the particular cabinet line.
General specifications
Color & finish
White paint
Door and drawer profile
Shaker style
Wood species
Birch
Sides color
Cabinet sides are unfinished, finishing skins are required for exposed sides.
Drawers
Tandem plus Blumotion soft closing, under mount, full extension, 4 way adjustable. ⅝” solid wood dovetail drawer box with a ⅜” plywood bottom panel, natural color finish. VideoPicture
Door hinges
Blumotion euro-style, dual mode, soft closing, concealed, 6 way adjustable. The soft closing mode can be turned on or off. Hinges open at 110°. Compact Clip Hinges with Quick-Release technology. Soft Closing Hinge Video Example
Interior color
Clear coated natural wood color. Glass door and no door cabinets come with a matching (same as cabinet front) interior color.
Particle board
No particle board is used in this cabinet line construction
Doors
3/4" thick solid wood door and drawer front frame. Center panel is MDF (Medium Density Fiber Board) with wood veneer. Doors and drawer fronts are 5-piece construction. Why do we use MDF?
Cabinet construction
½" unfinished plywood side panels dovetailed into face frame. ½" thick veneered plywood back with a natural finished interior. See interior color section for information on interior finish.
Face frame
1-1/2" wide x 3/4" thick solid wood
Shelves
3/4" (18mm) veneered plywood adjustable shelving with matching wood veneer edge banding. Metal shelf pins.
Toe kick
¾" thick unfinished plywood toe kick. Matching ¼" toe kick cover to be ordered separately.
Base corner supports
Plywood strips
Center stile
No center stile on cabinets up to 36" wide
Door and drawer stoppers
Clear adheisive bumpers
Hinge side
Hinges on single door wall and base cabinets are located on the right side by default. In most cases, they can be reversed to the opposite side. Reversing the cabinet hinge position may require pre-drilling small holes.
Cabinets with full overlay doors come with a small clearance between doors/drawers and cabinet edges. If a cabinet is located next to a wall or other surface (e.g. refrigerator panel), it is recommended to add at least 1/4" spacer for an additional clearance to allow doors/drawers operate smoothly. Some applications will require a bigger clearance depending on hardware and other project requirements. Use a scribe molding or wall/base fillers to fill the gaps. Generally the additional spacing is not required in between cabinets unless they are different depth (e.g. a 12" deep wall cabinet next to a 24" deep pantry). See an example
About Specifications
Cabinet specifications dimensions are typically converted from metric to inches and rounded. It may cause variations in measurements. Room lighting and screen settings will affect cabinet color appearance. Please order a sample for accurate product color information. Contact us with any questions about cabinet styles and specifications.

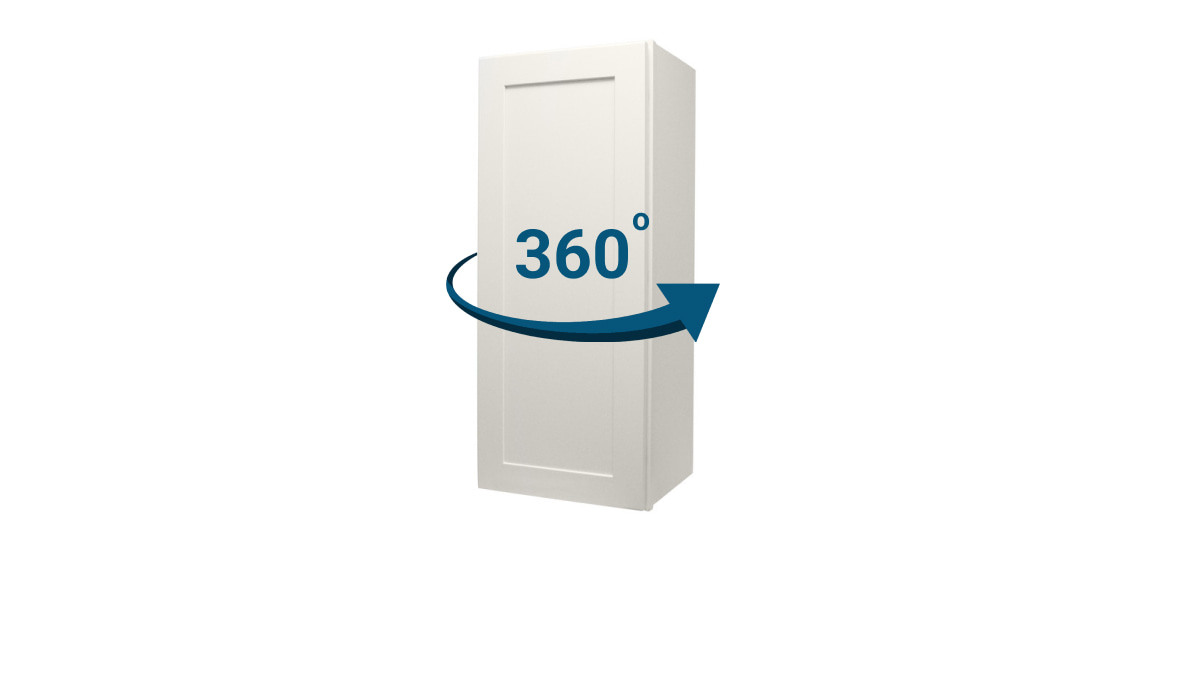

Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 2 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section.
Wall cabinet with 1 door and 3 shelves. This cabinet can be modified into a wall spice cabinet. The spice cabinet hardware is available in the Cabinet Organizers section. This cabinet is also available with glass doors, see the Accessories tab for more details.
Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 2 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 24" of space on each side of the corner. The visible cabinet front part is approximately 17" wide.
Diagonal wall corner cabinet with 3 shelves. This cabinet takes up 27" of space on each side of the corner. The visible cabinet front part is approximately 17" wide. We recommend using this type of cabinets in applications where the corner wall cabinet is higher than the surrounding units and a crown molding is installed on all wall cabinets.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 27". It can be used as left or right, requires a wall filler (not included). The door section is 9-1/2" wide. The stile width is 7". Opening is 7" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 33". It can be used as left or right, requires a wall filler (not included). The door section is 14-3/4" wide. The stile width is 7-3/4". Opening is 12-1/4" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 2 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
Wall blind corner cabinet with 3 shelves. This cabinet takes up more space than its width, the recommended space is 39". It can be used as left or right, requires a wall filler (not included). The door section is 21 1/2" wide. The stile width is 7". Opening is 19" wide. See the product page for an installation diagram example.
This timeless look of Chatham cabinet line is achieved with elegant white color and Shaker-style full overlay door profile. Chatham Frost cabinet line presents dovetail construction box and select birch plywood construction, adjustable shelf edge-banded in wood veneer natural finish. This unique modern design reflects contemporary references.
